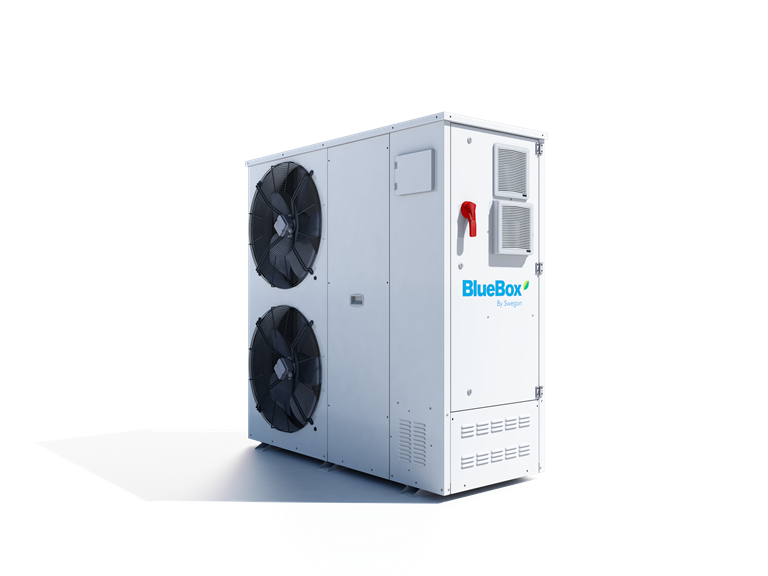

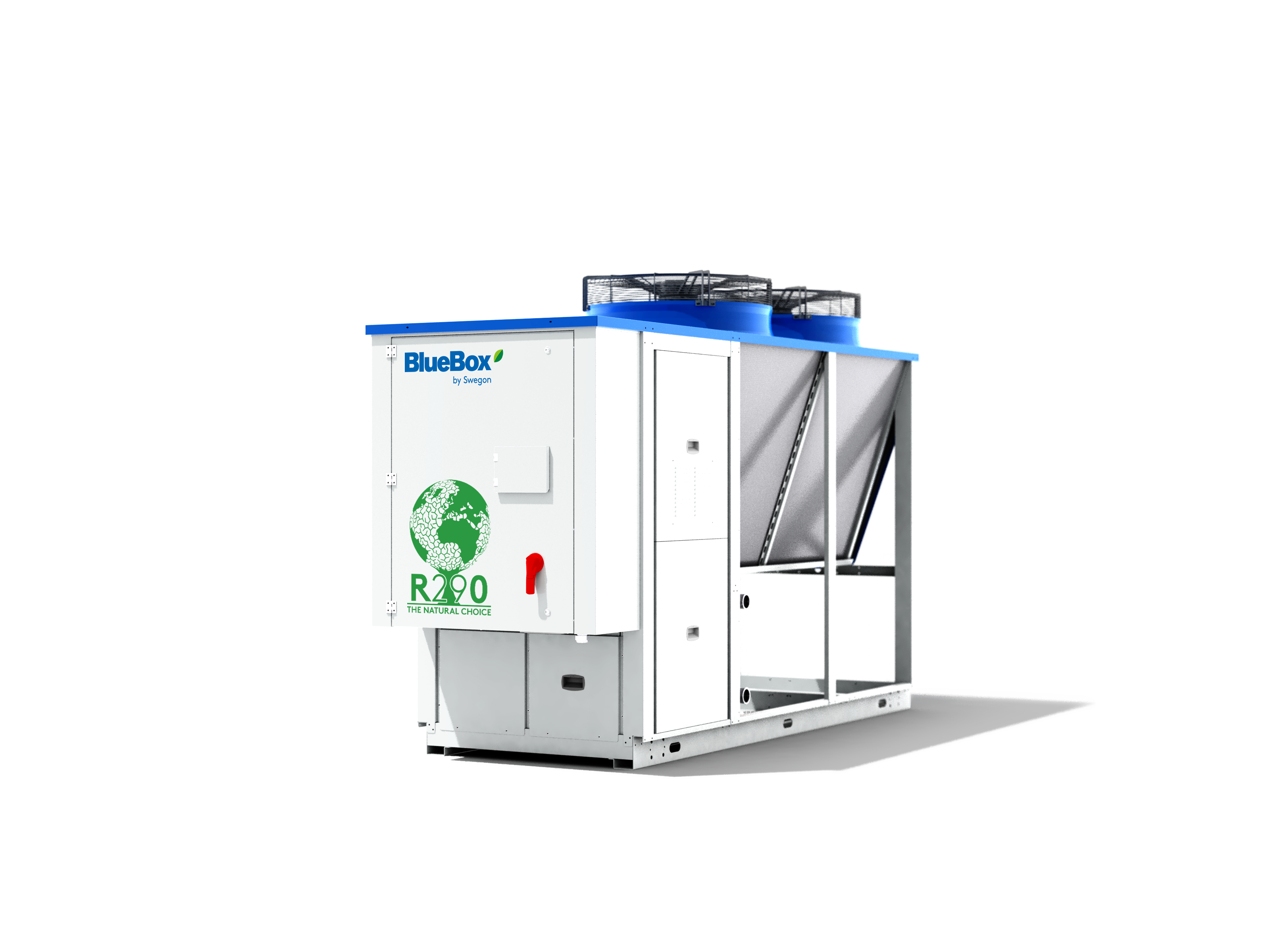

The TITAN SKY series consists of highly efficient, compact, air-cooled chillers and air-to-water heat pumps with inverter reciprocating compressor(s) and the future-proof refrigerant propane for cooling or heating for outdoor installation. Due to the technical nature of the units, they can be used in both comfort air conditioning and process cooling applications, as well as for domestic hot water heating.

Version

CH Chiller
HP Reversible heat pump

Advantages

Natural refrigerant propane (R290)
- Global Warming Potential (GWP=3)
- No ozone depletion potential (ODP=0)
High efficiency due to inverter controlled reciprocating compressors
Highly efficient axial fans with speed control
Very compact units - ideal for both refurbishment projects and new installations
Integrated hydraulic modules in various configurations (optional)
Wide range of applications
- Cold water production from -15 °C up to 20 °C
- Hot water production up to 63 °C
- Operation down to -20 °C ambient temp. with flow temperature 50 °C
BlueThink control with integrated web server
Multilogic system management to maximize energy efficiency or redundancy strategies (option)
Flowzer management based on inverter-controlled pumps to optimize hydraulics (options)
BAFA funding option for chillers and heat pumps with natural refrigerant
EUROVENT certified

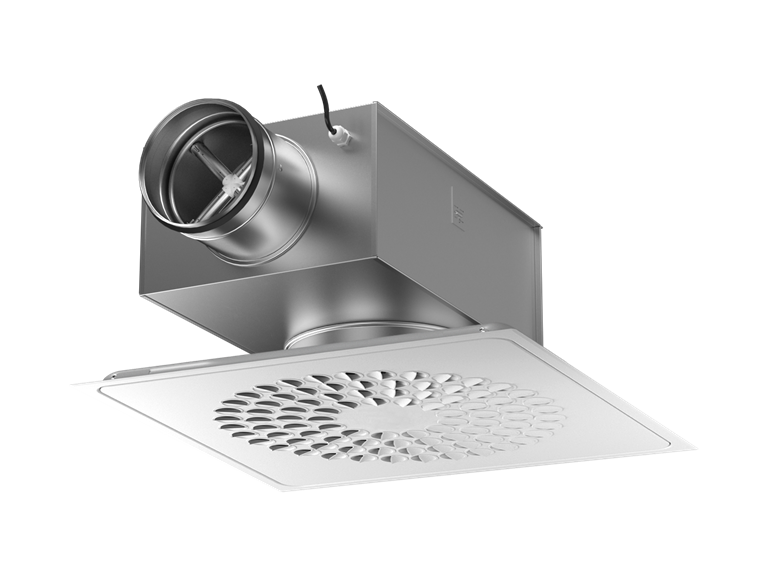

• Circular nozzle pattern
• Suitable for VAV and DCV applications
• Manages air flows substantially below room temperature (High DT)
• Fast and simple installation and commissioning through Swegon Quick Access
• 100% flexible spread pattern
• Designed for modular suspended ceilings
• Used with commissioning box REACT ALS for variable flow
• ALS commissioning box with 1 or 2 changes in dimension between the inlet and outlet
• ADAPTER for suspended ceiling system
• Standard colour White RAL 9003
  • 5 alternative standard colours
  • Other colours upon request

Comfort module for demand-controlled room climate, integrated into Swegon's WISE control platform.
Complete product where all components are factory assembled and all room accessories can be easily connected using scanner and handheld terminal
Energy-efficient operation, as ventilation, heating and cooling are provided exactly as needed: not too much and not too little.
Maximum comfort with the possibility of individual control at the product or room level.
Easy installation and integration into the WISE system
Water-based cooling and heating
Draught-free room climate, four-way air distribution and Swegon's ADC (Anti Draught Control) provide maximum comfort and optimum flexibility - for both current and future changing needs

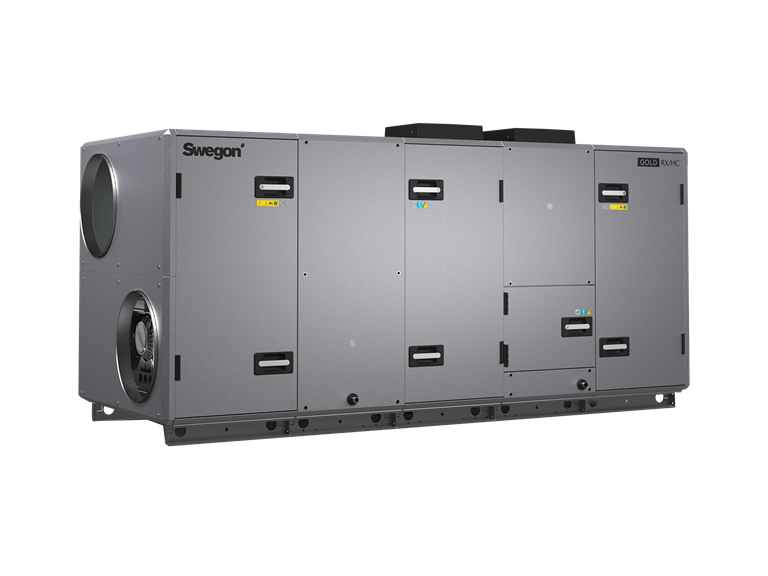

As a result, fresh air, heating and cooling are combined in an unbeatably simple, space-saving and energy-efficient way. Project planning is simplified by the fact that the heat pump and ventilation unit are integrated both mechanically and in terms of control. The compact dimensions also save valuable space. Installation is made easier by the fact that the unit can be supplied pre-filled at the factory. Already tested, it is ready for immediate use. Commissioning is quick and flexible, as all functions are controlled directly from the GOLD unit's user-friendly handheld terminal.
