The deltaflowC from systec Controls is a revolutionary gas flow meter that operates on the advanced differential pressure (dp) principle for measuring gas massflow. This device stands out as possibly one of the smallest and fastest multivariable transmitters for real-time, precise differential pressure flow metering of gas massflow. This gas flow meter masterfully integrates highly sensitive sensors for differential pressure, static pressure, and temperature, along with a powerful processor, all compactly assembled on a minimal surface area.

The deltaflowC measures gas massflow, performing up to 2,000 measurements per second, and is capable of processing and filtering the physical variables dp, pabs, and T ultra-fast. This provides users with accurate gas massflow signals and concurrent pressure and temperature readings, making the differential pressure flow meter deltaflowC not only suitable for measuring stationary flows but also for managing high measurement dynamics and pulsations found e.g. in compressors or combustion engines.

3 in 1: Differential Pressure Flow Meter, Gas Massflow and Volume Measurement, as well as Pressure and Temperature Measurement in One Device

The differential pressure flow meter deltaflowC offers a comprehensive solution, providing gas massflow measurements in a single device while also monitoring process temperature and pressure. As a gas flow meter, it is specially designed for the measurement and control of ventilation systems and other gases in pipes and ducts. The deltaflowC is the ideal solution for differential pressure flow metering, including applications as a compressed air meter and gas massflow meter.

Details of the differential pressure flow meter

It is available in two models: an insertion probe for pipes starting from 28mm inside diameter (1in) and a screw-in venturi for smaller pipes with diameters ranging from 3/4 to 1.5 inches. Installation is straightforward, with the probe version requiring just a connection piece on the pipe, and the venturi version easily screwed into a pipe section.

Gas flow meter deltaflowC has analog outputs (4..20mA and 0..10VDC), a pulse output, CAN-bus and Modbus RTU. It fits perfectly into all electrical environments. The analog outputs can not only be used to transmit the gas massflow, but also for differential pressure (dp), temperature or pressure (pabs) signals. Using a digital bus, it includes all measured and calculated physical

The deltaflowC offers multiple advantages, also in comparison to a thermal mass flow meter. It compensates for the effects of pressure and temperature on flow measurement, offering users a compensated gas massflow. Unlike a thermal mass flow meter and other gas massflow meters, the deltaflowC is remarkably less sensitive to surface fouling by e.g. oil films, condensates and particles... The deltaflowC gas flow meter is virtually maintenance-free, low on drift and suitable for a wide range of flow rates, temperatures, pressures and gases, including compressed air. Furthermore, the deltaflowC gas flow meter fits almost all pipelines and ducts with just one installation length, making it quickly available and easy to stock. In contrast to a thermal mass flow meter, the deltaflowC gas flow meter can be easily adapted to various gases without the need for recalibration. The gas massflow meter can simply be recalculated to any gas using the physical principles described in the ISO 5167.

Clamp-on flow measurement with deltawaveC is simpler, more precise and more reliable than anything you've seen before - and above all, it's absolutely affordable.

Simple operation, 20 years of experience in clamp-on technology and ultrasonic transducers tailored to the building services sector promise precise results without the need for time-consuming interruption of lines/pipes

ystec Controls' deltawaveSUF multi-path ultrasonic flowmeter puts an end to expensive, complicated gas flow measurement.

Until now, the accurate measurement of gas volumes has been very complex and expensive. Although mechanical meters measure flow very accurately, they ignore the influence of pressure and temperature fluctuations, which leads to very large errors. For this reason, especially for large consumers, mechanical meters are supplemented with additional pressure and temperature sensors, and their influence is then calculated and corrected in volume correctors. Not only does this sound complicated, it is also expensive and requires a great deal of effort to achieve accurate measurement.

deltawaveSUF multi-path ultrasonic flowmeter puts an end to expensive, complicated gas flow measurement. It works on the transit time principle with an integrated p&t sensor. The gas meter can be operated with a built-in battery or with 24VDC. Up to 5 years of continuous operation is possible with a single battery pack.

systec Controls has been developing ultrasonic flow meters for over 20 years. Flow measurement using the ultrasonic transit time method has many advantages, in particular very wide measuring ranges, outstanding accuracy, virtually no drift in the measured values as it is a digital time measurement. There are no moving parts and no analogue components to wear or age.

The development of the process for a stationary gas meter was requested by our customers in the gas supply industry. As a result, deltawaveSUF has been designed to be as compatible as possible with existing mechanical gas meters. In most cases it can simply replace previously installed turbine meters. Both the dimensions and the measuring range have been adapted accordingly.

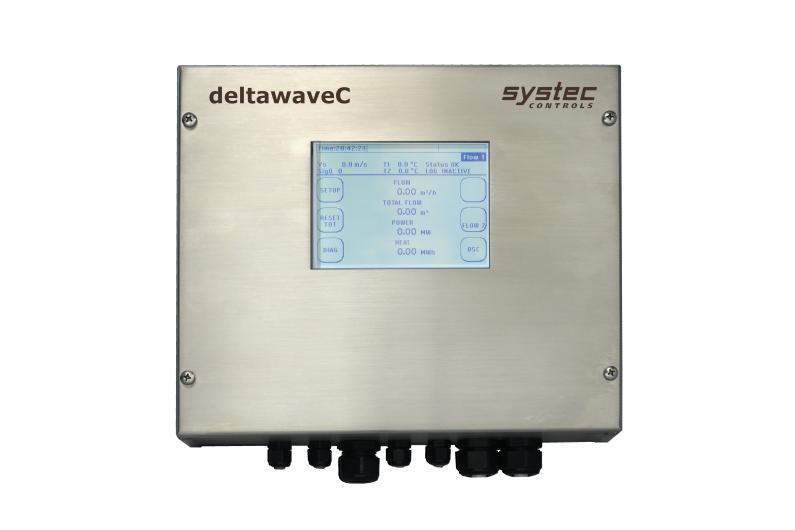

Clamp-on Ultrasonic Flow Meter deltawaveC at a glance deltawaveC by systec Controls is the brand new universal clamp-on ultrasonic flowmeter for liquids in filled pipes. deltawaveC uses the highly accurate transit time method (time-of-flight) to measure the flow of liquids in pipes. Special advantage: The ultrasonic transducers are strapped to the outside of the pipe (clamp-on), cutting or drilling of the pipe is not necessary, pressure losses are not present. deltawaveC Clamp-on Flow Meter: Installation and setup within seconds

The clamp-on ultrasonic flow meter deltawaveC is extremely easy to handle. The user interface of the large graphical display is easy to use even by inexperienced users. With the new quick setup option, the ultrasonic flow measurement can be set up in less than a minute. Online help-texts make the use of the printed manual unnecessary for the majority of your daily tasks. The robust quickfix-mounting kit makes mounting of the sensor precise, fast and stable.
