T-DRILL’s latest innovation – Fully automatic servo controlled Tube End Spinning Machine SPM-115 – is designed for flat closing of copper and brass tubes. The machine has a fast cycle time, as the typical process time is only ~ 20–45 seconds depending on tube specification.   After the tube has been loaded, the clamps are closed and the rotating tool is automatically fed against the tube end. The friction between the rotating tool and the tube heats the tube end and rapidly forms it flat.   Also the machine set up is very fast when product changes: just change clamps according to the tube size, select program from the library and the machine makes the correct adjustments automatically.   The operation is completely electric, without hydraulics and pneumatics. This results in silent and very energy efficient, low loss process with high repeatability.

Key features:

• Industry 4.0 ready
• Silent and stable operation
• Fast machine set up and cycle time
• High repeatability due to servo controlled process
• Energy efficient, low loss operation
• Completely electric operation without hydraulics and pneumatics
• Storage for hundreds of product recipes
• User-friendly GUI with 15” color touch panel
• Visual step by step task guiding for operator

T-DRILL HFT-2000 SS is used in conjunction with the T-DRILL T-65 SS collaring machine for small volume Stainless Steel manifold production. The Hand Feed Table (HFT) is capable of producing collars O.D. 17–54 mm (¾” – 2″) in run tubes O.D. 32–114 mm (1 ¼” – 4″).

T-DRILL collars give the most reliable tube joints being used with the most extreme applications. The collaring unit is effortlessly moved by the operator after each collar is produced. Based on easy “pin-to-hole positioning” it is very productive on standard manifold production. To make the process even easier, there is also an optional digital measuring display available.

Produce five 54 mm (2″) collars in less than ten minutes without moving the tube!

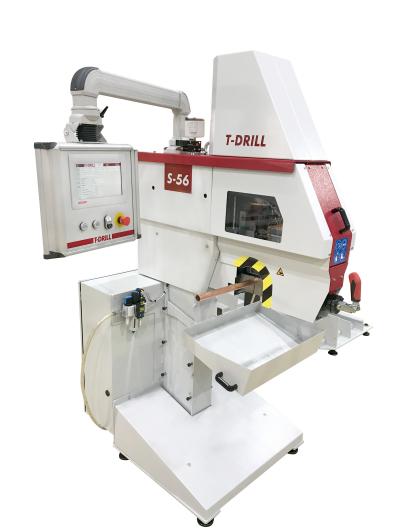

T-DRILL S-56 PC 1500 Punching and Collaring

Two methods, one unit, double efficiency.

The T-DRILL S-56 PC is a cutting-edge punching and collaring unit that seamlessly combines two methods in a single unit, ensuring unparalleled efficiency and precision.

Designed for the HVACR industry, the S-56 PC offers classic T-DRILL Collaring alongside OD Punching in one cohesive system. Experience the swift production of C19400 Copper Iron (CuFe2P) manifolds with 50% less material handling, addressing the challenges in manufacturing coils for high-pressure CO2 systems.

The T-DRILL T-54c SST is the ultimate solution for creating precise tee joints in stainless steel pipes. Designed for portability and efficiency, this machine is perfect for on-site applications, ensuring high-quality results every time.

The powerful T-DRILL T-54c SST produces precise and strong tee joints of O.D. 17-54 mm in just a couple of minutes. The cordless collaring machine is easy to use and adjust according to your needs.

The T-54c SST is excellent for construction and renovation projects, as well as for the demanding field conditions in maintenance, repair work, and the process industry.

With the T-DRILL T-54c SST, there is no need for separate T-pieces, which ensures both efficiency and cost-effectiveness for your operations.
