A good environment is of paramount importance. With our sensors you can monitor and control the key factors that attribute to this. You can combine CO2, VOC, RH and T in just one enclosure. Available as duct or room version.

Our weatherproof temperature and humidity sensor can withstand various weather conditions. Equipped with a radiation shield, this sensor is designed to shield against rain, snow, hail, and radiated heat.

Specifications:

• Temp range: -40…+50°C
• RH range: 10…90% (non condensing)
• Output: 0 – 10V
• Supply voltage: 15-35VDC or 24VAC±20%

The dew point switch sends early-warning signal before dew point is reached which can be used to control condensation in critical environments. This is achieved by a quick and accurate response in monitoring relative humidity in combination with temperature. Status LED light indicates condensation warning as 90% threshold is reached, as well as potential electronic failure with the device.

Specifications:

• Supply voltage: 24V DC/AC±20%
• Operation range: 0…+50°C, 0…100%RH non-condensing
• Mounting: Flat on surface (screwed) or direct on pipe (strapped)
• Switching points: >90%±3 (dry to wet) <85%±3 (wet to dry)
• Response time: t63 >3 min

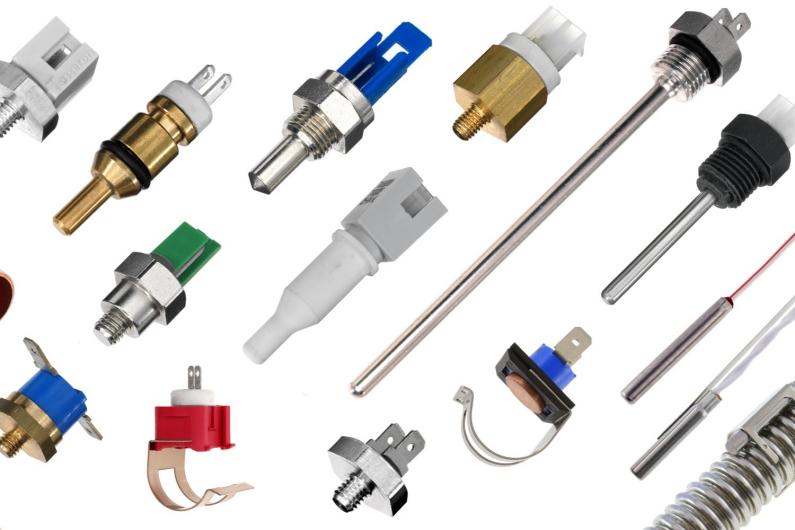

These universal sensors are made to perfection. These industry favorites can be made with several outputs and equipped with an optional transmitter. Indirect measurement though immersion offers many advantages. Aside from easy placement, these sensors are ideal for applications with an aggressive medium or high pressure.

A good environment is of paramount importance. With our sensors you can monitor and control the key factors that attribute to this. You can combine CO2, VOC, RH and T in just one enclosure. Available as duct or room version.

Our weatherproof temperature and humidity sensor can withstand various weather conditions. Equipped with a radiation shield, this sensor is designed to shield against rain, snow, hail, and radiated heat.

Specifications:

• Temp range: -40…+50°C
• RH range: 10…90% (non condensing)
• Output: 0 – 10V
• Supply voltage: 15-35VDC or 24VAC±20%

The dew point switch sends early-warning signal before dew point is reached which can be used to control condensation in critical environments. This is achieved by a quick and accurate response in monitoring relative humidity in combination with temperature. Status LED light indicates condensation warning as 90% threshold is reached, as well as potential electronic failure with the device.

Specifications:

• Supply voltage: 24V DC/AC±20%
• Operation range: 0…+50°C, 0…100%RH non-condensing
• Mounting: Flat on surface (screwed) or direct on pipe (strapped)
• Switching points: >90%±3 (dry to wet) <85%±3 (wet to dry)
• Response time: t63 >3 min
