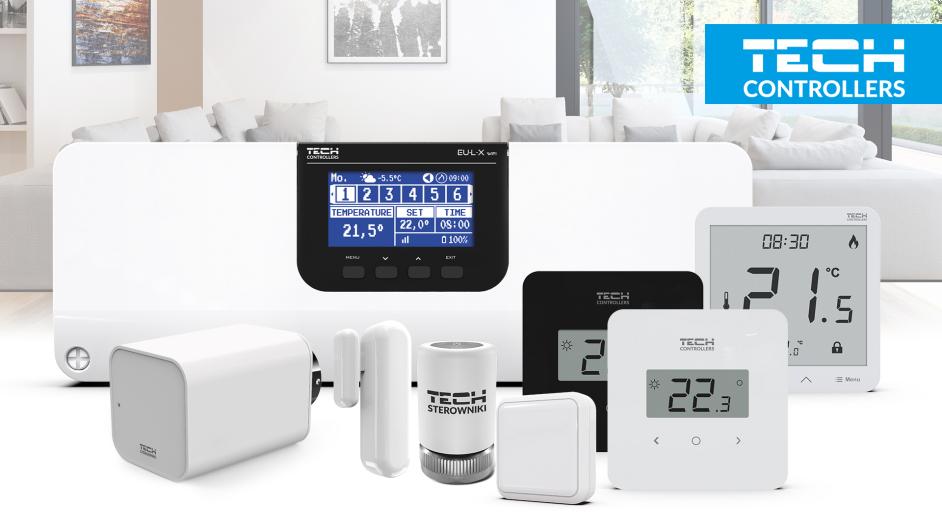

A universal controller designed to manage underfloor and radiator heating, with a built-in WiFi module. Controller can manage up to 8 zones defined by using a temperature measuring device (sensor or regulator).

The L-X WiFi controller is used to manage thermoelectric actuators mounted on manifold valves. In a mixed system, the terminal EU-L-X WiFi also controls the STT-868, STT-869 or G-X wireless electric actuators.

Functions:
• the ability to handle max. 50 thermoelectric actuators, zones can be created using
8 dedicated wired regulators or wireless system regulators or temperature sensors
or wired temperature sensors C-7p:
– 3 zones with 3 outputs each (if there are more actuators, the maximum output load is 0,3A)
– 5 zones with 2 outputs each (if there are more actuators, the maximum output load is 0,3A)
• one 230V output for a pump
• voltage-free relay (to control an additional heating device)
• possibility of controlling wireless actuators STT-868/STT-869 (the maximum of 6 per zone)
• in each zone, it is possible to install up to 6 wireless EU-C-2n window opening sensors
• possibility of connecting 6 executive modules EU-MW-1 or EU-MW-1/230
• possibility of connecting EU-i-1 or EU-i-1m valve module
• built-in WiFi module
• the ability to control the installation via the Internet, eModul application
• heating/cooling function
• software update via USB
