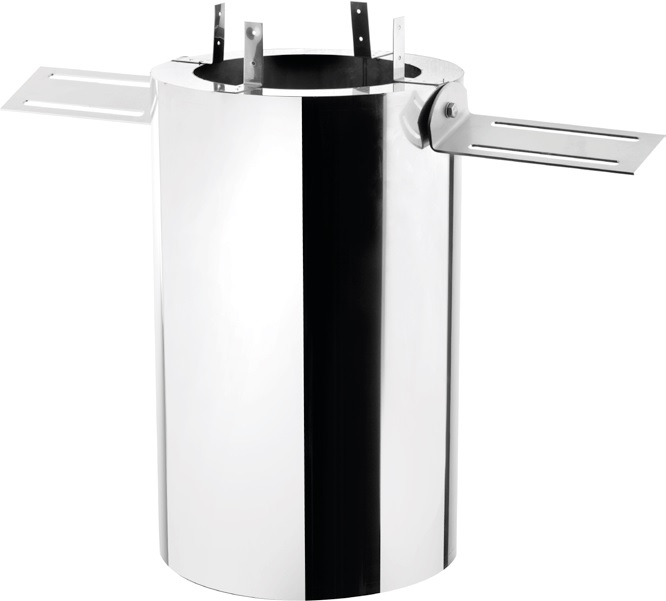

Our CROSSING ELEMENT FOR WOODEN ROOFS AND CEILINGS DOUBLE WALL is an isolated system to cross wooden roofs and ceilings, and, when combined to double wall elements, is suitable to evacuate the smokes risen by solid fuel heat generators. Thanks to its structure made in double stainless-steel walls, insulated by bio-soluble fibre suitable for high temperature (pressed), to the calcium silicate tablets to be placed under the fixing brackets and to the insulators to put in the contact points between the pass through and the double wall pipe, so you avoid the possible transmission/heat dispersion to combustible material.

The single – wall copper (also available in S/S) system, is composed of modular elements heat-resistant (up to 600°) and / or pressure – resistant up to 200 pascal, with gasket on request, with condensed or dry fumes.

The mono – wall chimney system is an innovating project, designed to provide a pleasant aesthetic solution. Its outcome is always practical and functional, environmentally friendly and useful in any urban context, which is more and more challenging as regards compliance with current rules.

The range is composed of modular elements with circular cross section, in austenitic S/S AISI 316L (1.4404) or Copper thickness 0,4 / 0,5 mm, with glassy finishing BA, made with continuous longitudinal welding out of laser or TIG automatic process.

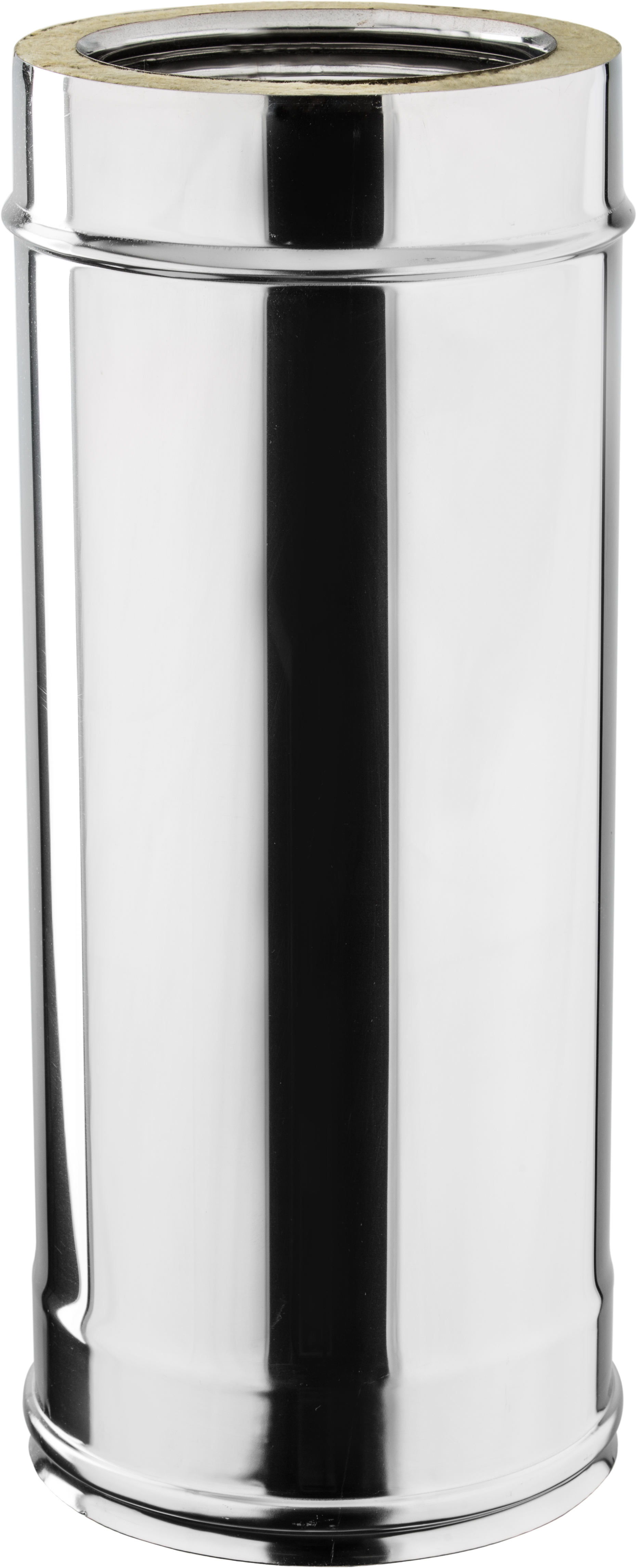

The Double – Wall chimney system is an innovating project, designed to provide a pleasant aesthetic solution. Its outcome is always practical and functional, environmentally friendly and useful in any urban context, which is more and more challenging as regards compliance with current rules.

The range is composed of modular elements with circular cross section, in austenitic stainless steel AISI 316L (1.4404) with standard thickness from 0,5 mm, up to special 1mm thickness with glossy finishing BA, made with continuous longitudinal welding out of laser or TIG automatic process.

The 50 mm insulated double wall system is composed of modular elements, it can resist to high temperatures (600°) and/or with gasket (on demand) to pressure up to 200 pascal 600°), with condensed or dry fumes.

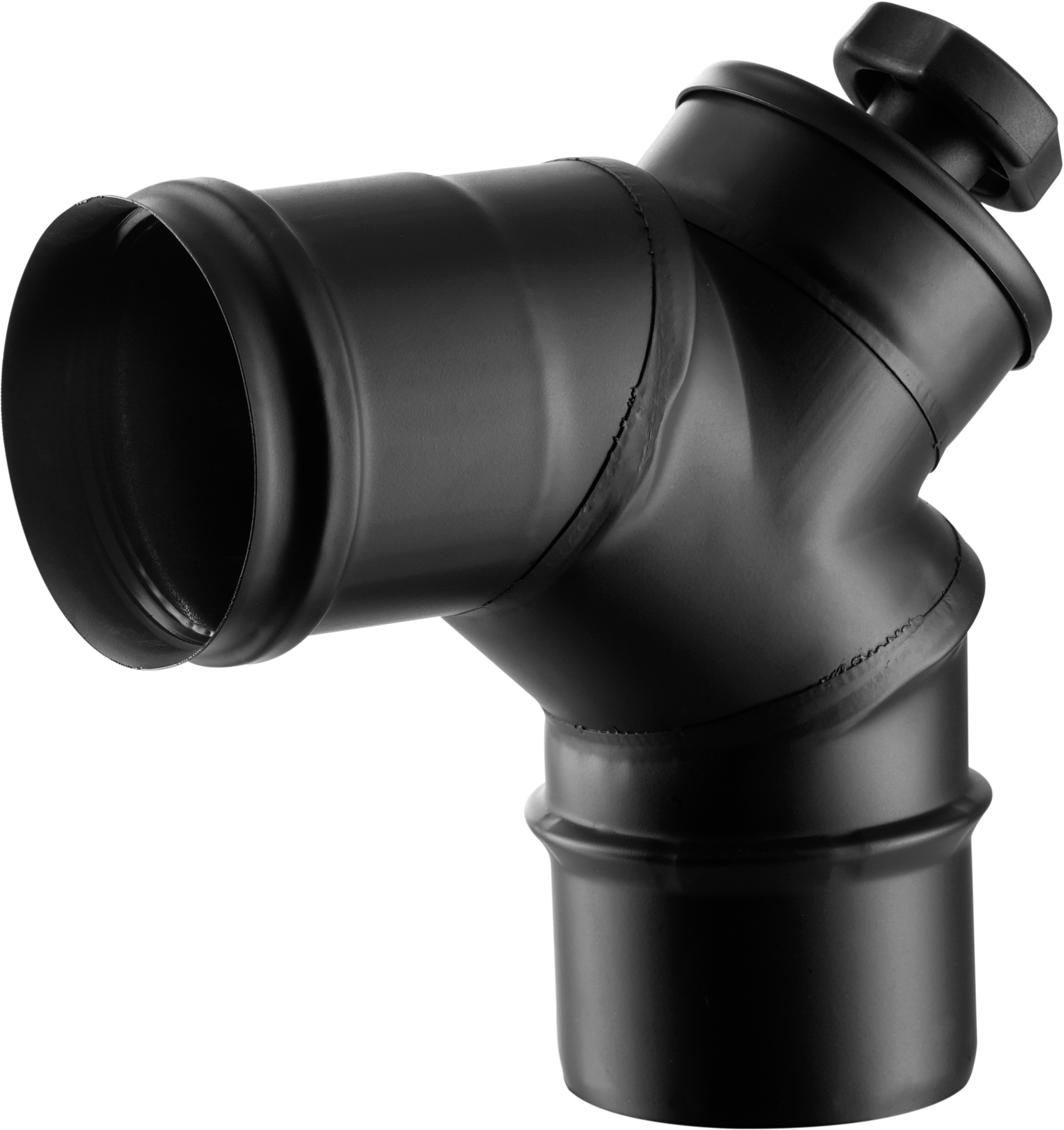

Single-wall smoke duct in aluminized steel DX53 + DS, thickness: 1,5mm, coated with heat-resistant (up to 500°C) silicone paint in black. Diameter range: 80-120mm

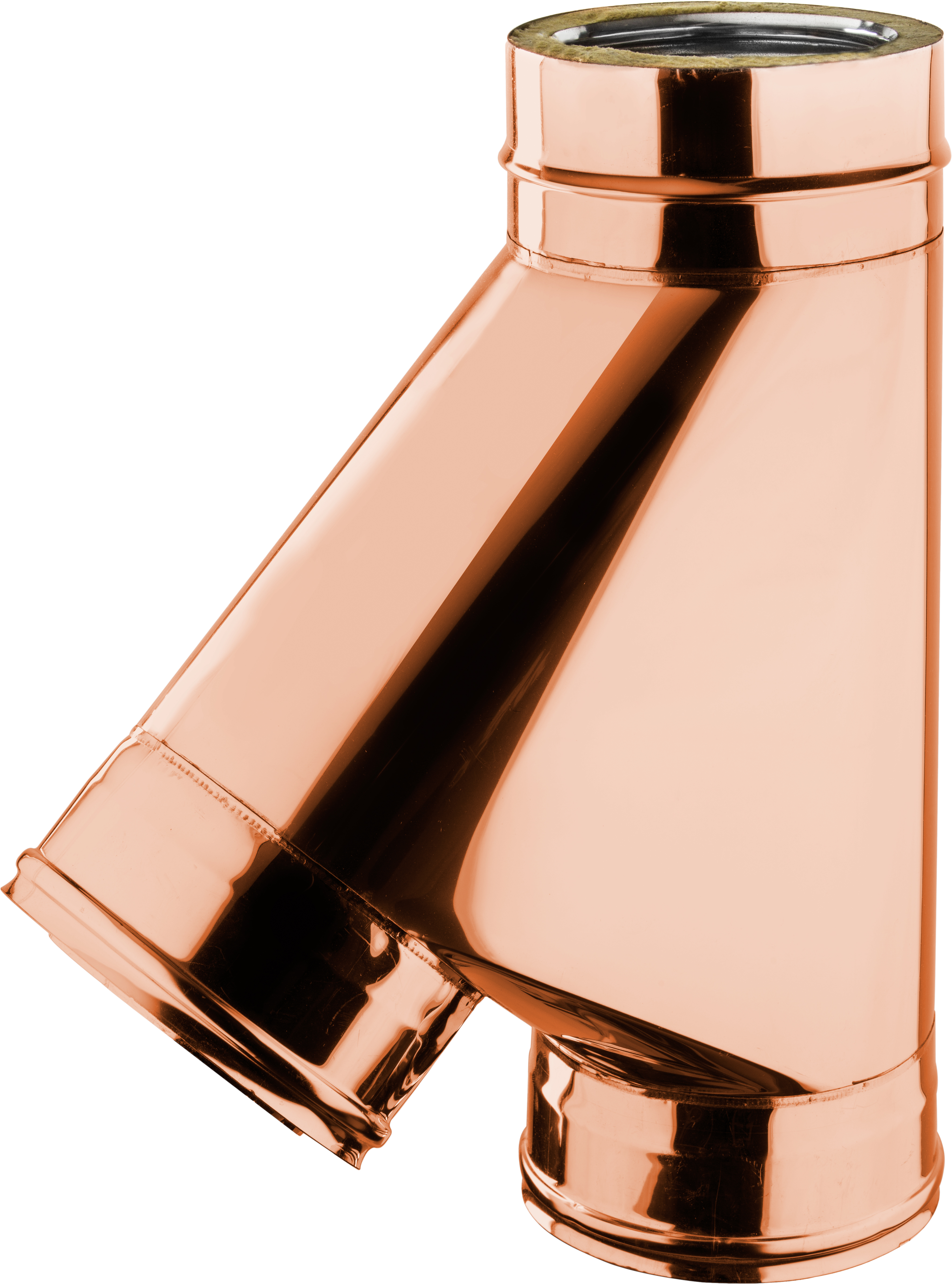

The Double – Wall chimney system is an innovating project, designed to provide a pleasant aesthetic solution. Its outcome is always practical and functional, environmentally friendly and useful in any urban context, which is more and more challenging as regards compliance with current rules.

The range is composed of modular elements with circular cross section, in copper with standard thickness from 0,5 mm, up to special 1mm thickness with glossy finishing BA, made with continuous longitudinal welding out of laser or TIG automatic process.

The 50 mm insulated double wall system is composed of modular elements, it can resist to high temperatures (600°) and/or with gasket (on demand) to pressure up to 200 pascal 600°), with condensed or dry fumes.
