New generation of flow heaters PPW

• Application: heat pumps, central heating systems, other
• Power: 3.0kW, 6.0kW, 9.0kW
• Voltage: 230V, 400V, other
• Lenght: 325mm, other on request
• Connections: from 1/2" to 1 1/4"
• Temperature control range: 30-75°C, 30-85°C, only STB
• Material: Stainless steel 316L, Incoloy 825
• Flow heater is equipped with a 2 meter cable as a standard

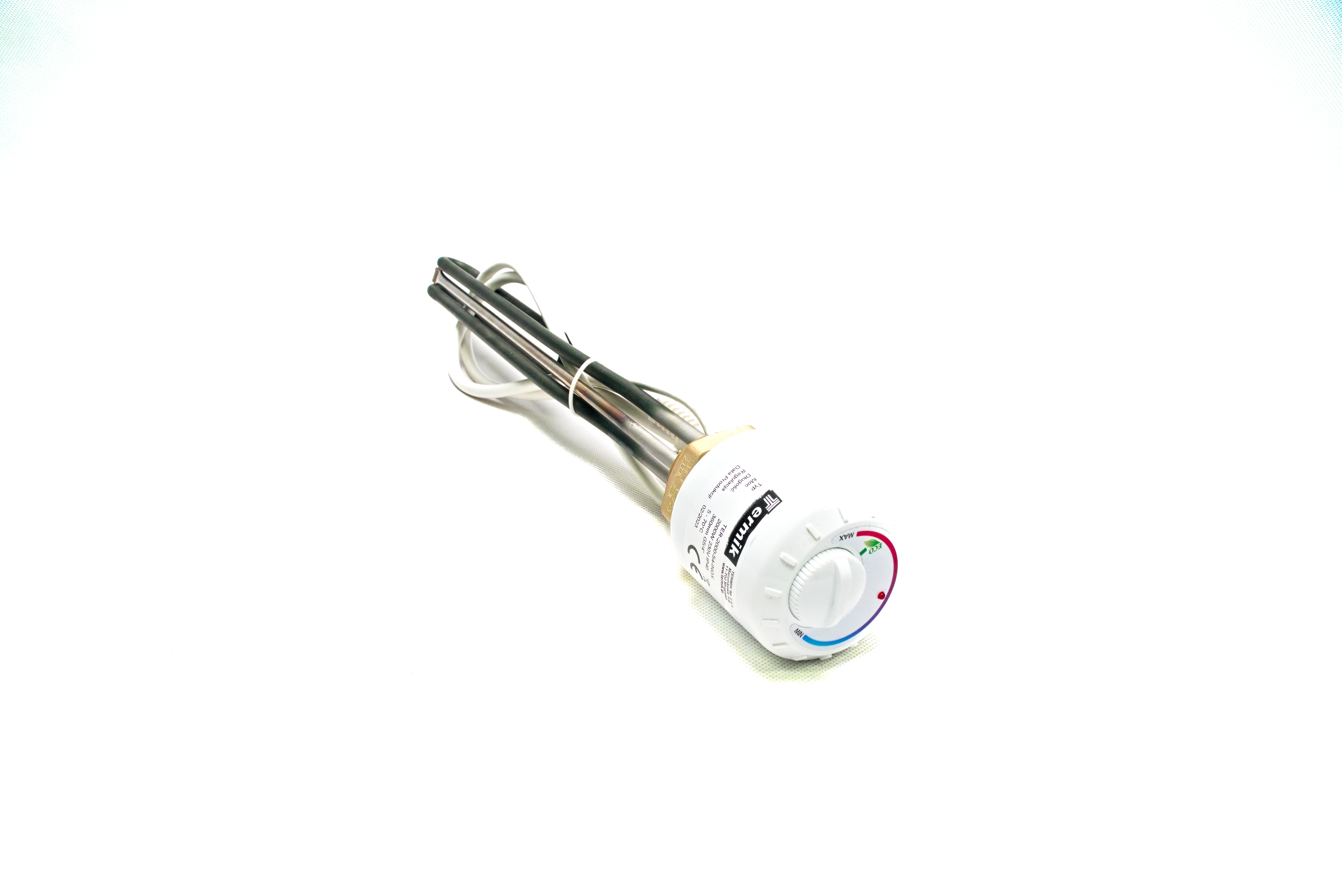

Screw-In Heating Element TER-INOX with thermostat designed for water heaters, buffer tanks, accumulation tanks, stainess steel tanks

• Temperature regulation: 5-70*C
• Eco - optimal set-point position 55*C
• Power: 1500W, 2000W, 3000W
• Voltage: 230V
• Lenght of immersion: 360mm and 400mm
• Thread connection: 5/4", 6/4"
• Ter-inox heater is equipped in 1.5m power cord with a plug
• Made of Incoloy

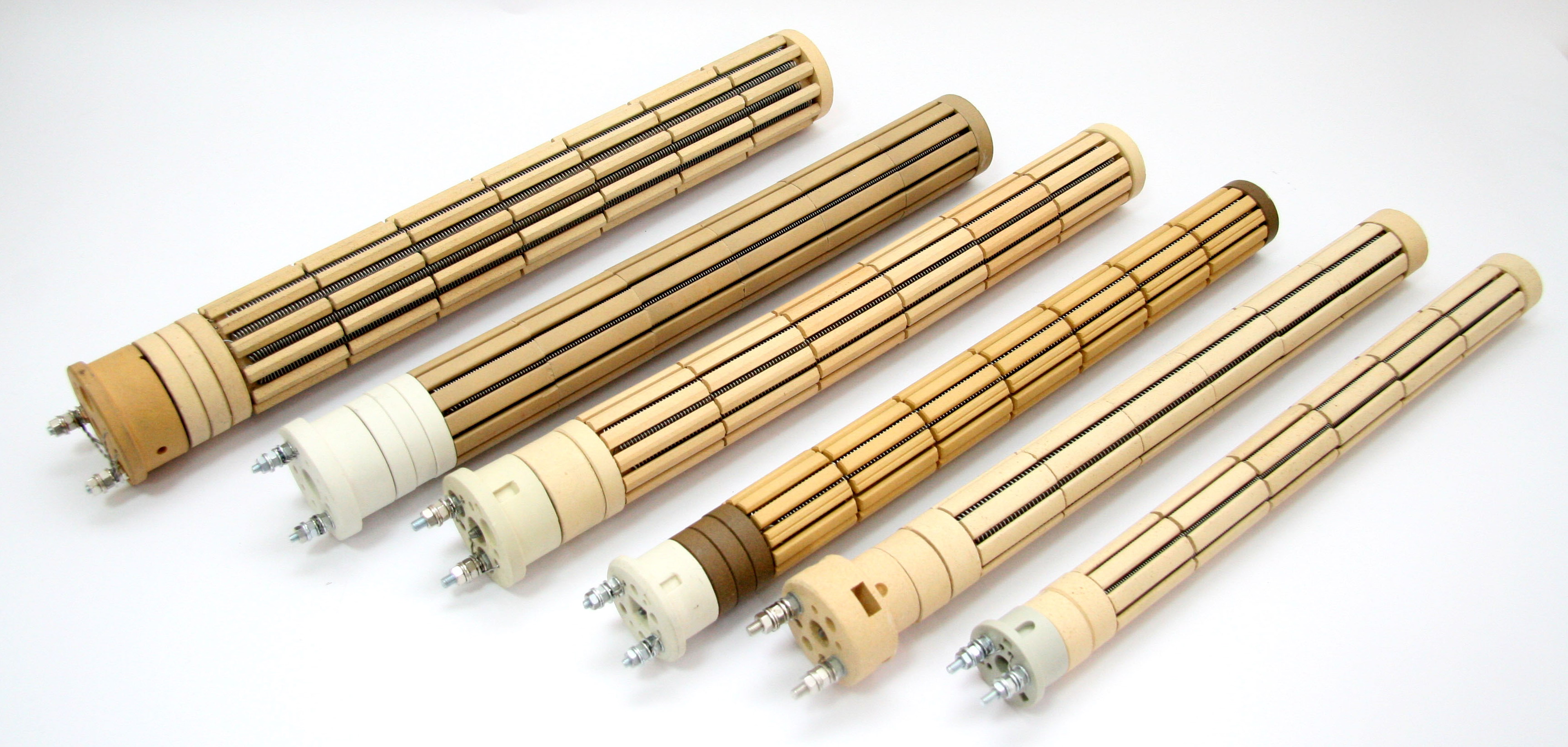

The ceramic heating element, due to its construction is used for heating air and liquids (indirectly).

In the basic version, the heater is made of ceramic forms through which the heating coil is routed. The current output is the ceramic head to which the Power cords are connected.

The entire structure is stiffened with a rod running along the axis of the heater.

Applied ceramics and NiCr wires have very good electrical and mechanical parameters which ensures long life.

Application:

• Boilers, Storage Tanks
• Water Heaters
• Industrial washers

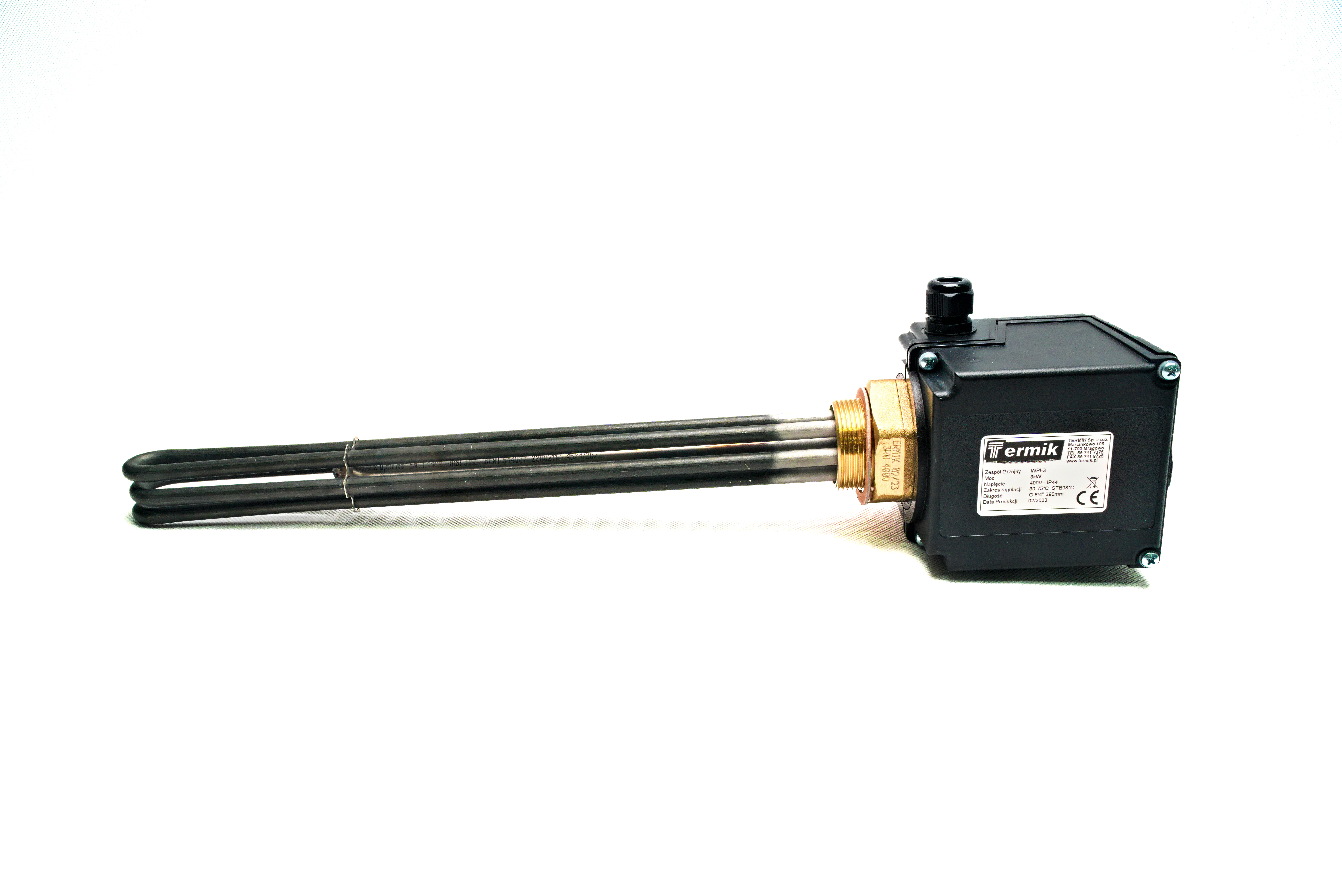

Immersion Heater with integrated isolation for direct water heating, especially used in enamelled tanks. It consist of three "U"-shaped tubular heaters and a sensor protection tube mounted in a screw head G6/4". The heater is with plastic housing, in which a temperature control (30-75*C) with a limiter (98*C) and indicator lamp is provided. The isolated construction of the tubular heater protects enamelled tank against corrosion.

• Power 2,5-12kW
• Voltage 230V, 400V
• Plug Size G6/4"
• Material Incoloy825
• Thermostat 30-75*C, 30-85*C, other
• Protectitive Cap IP44
