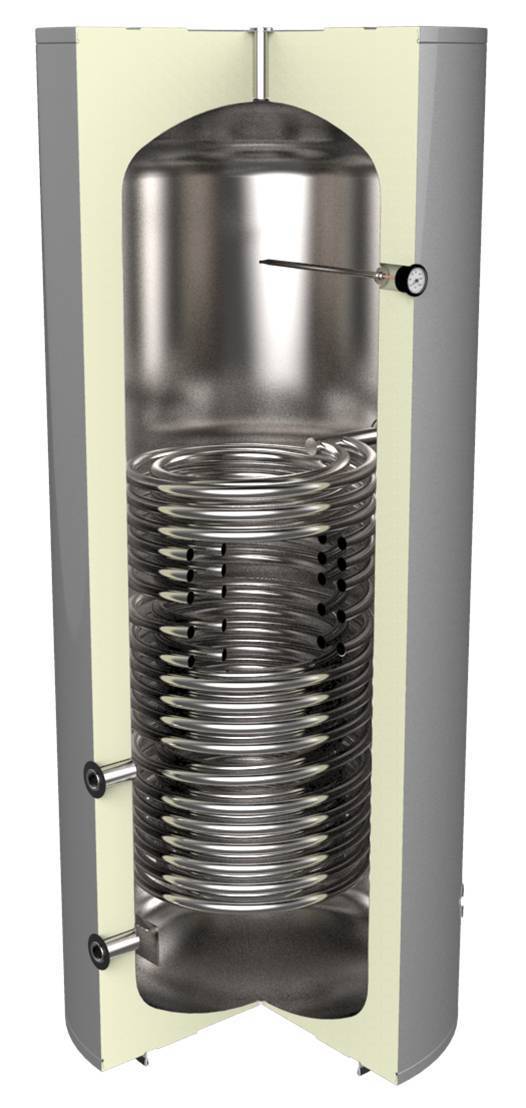

300L High Gain (Heat Pump Ready)

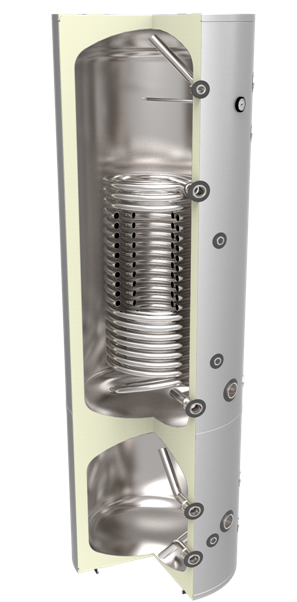

DHW tank with Heat Exchanger and Buffer - 2 in 1

Specifications:

• Metal outercasing

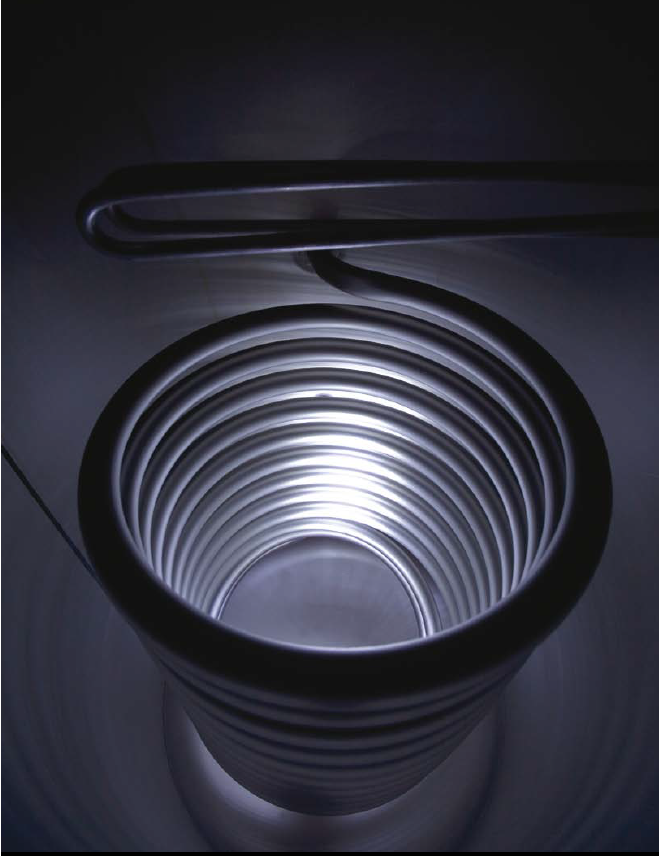

• Stainless steell 316L Heat Exchanger with double loop and low pressure drop
• High density rigid polyurethane foam λ = 0,022 W/m
• TankandBuffer in StainlessSteel, 100% pickledandpassivated(in & out)
• Space economy and synergy between tanks, Easy installation, Suitable to use with Heat Pumps

Capacities:

• 260L (200+60): Surface area: 2,50 m²
• 340L (250+90): Surface area: 2,50 m²
• 390L (300+90): Surface area: 3,00 m²

Capacites:

• 150L, 200L, 300L, 400L and 500L

Dimensions:

• Ø550, Ø620, Ø710 (mm)

Height:

• 1120, 1420, 1570, 1560, 1910 (mm)

Technical Data:

• Tank Construction Stainless Steel 444 (1.4521)

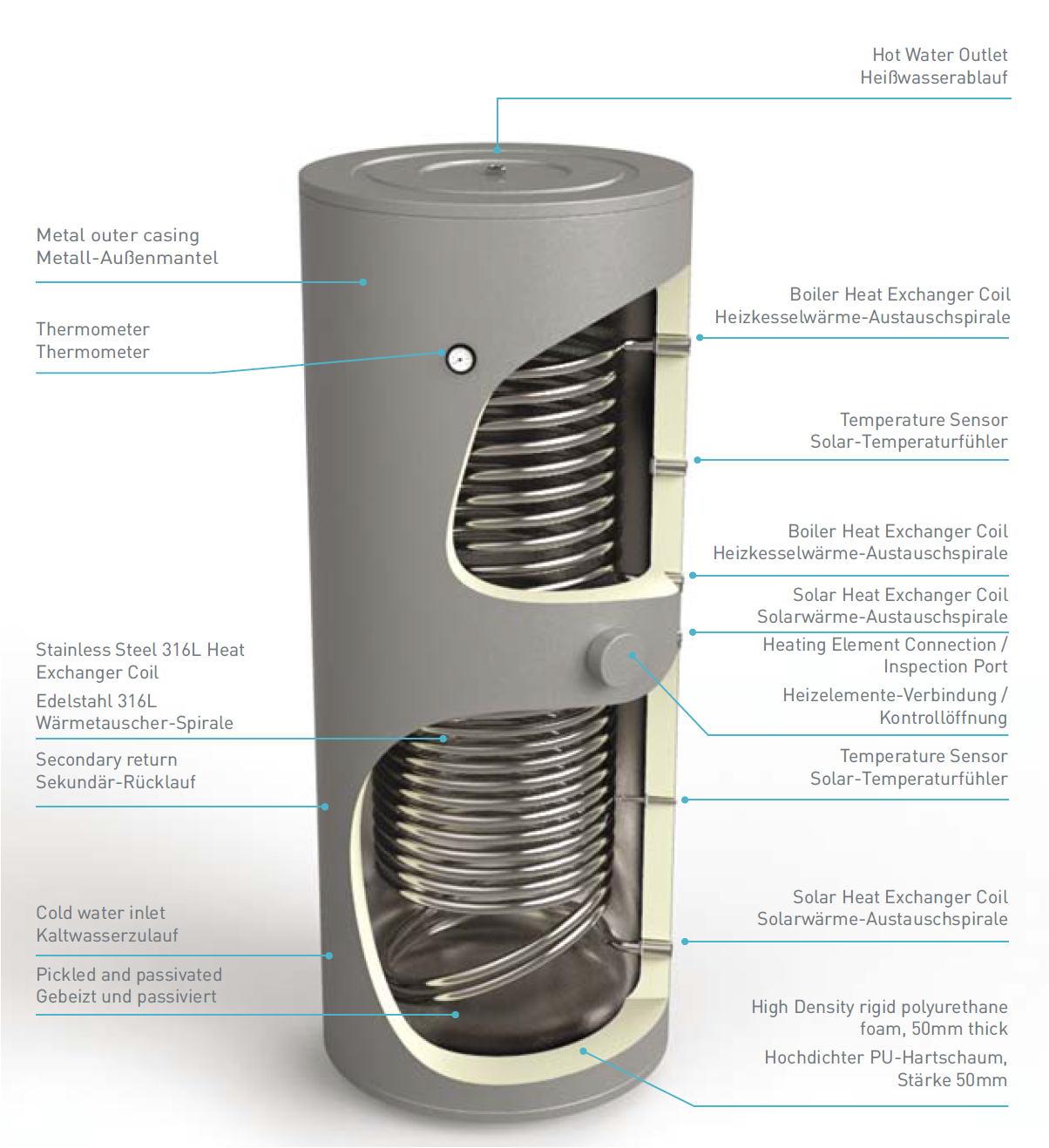

• Solar Heat Exchanger Surface Area: 0,67m², 0,77m², 1,32m², 1,73m² and 2,13m²
• Solar Heat Exchanger Volume: 3,1L, 3,5L, 6,0L, 7,9L and 9,8L
• Solar Heat Exchanger Rated Output: 21kW, 23kW, 36kW, 52kW and 60kW
• Boiler Heat Exchanger Surface Area: 0,55m², 0,67m², 0,83m², 1,00m² and 1,40m²
• Boiler Heat Exchanger Volume: 2,5L, 3,1L, 3,8L, 5,9L and 8,2L
• Boiler Heat Exchanger Rated Output: 19kW, 21kW, 28kW, 29kW and 43kW
• Electrical Backup: 1500W x 230V, 2000W x 230V and 3000W x 230V
• Insulation – Rigid Polyurethane 50mm
• Outer Casing: Powder Coated Galvanized Steel
• Max. Working Pressure – Tank: 8 bar
• Max. Working Temperature - Tank 85ºC
• Max. Working Pressure – Heat Exchanger 8 bar
• Max. Working Temperature Heat Exchanger: 95ºC
• ErP Label C and D
• Standby Losses: 63W, 77W, 94W, 112W and 133W

DHW tank with Heat Exchanger and Buffer - 2 in 1

Specifications:

• Metal outercasing
• Stainless steell 316L Heat Exchanger with double loop and low pressure drop
• High density rigid polyurethane foam λ = 0,022 W/m
• TankandBuffer in StainlessSteel, 100% pickledandpassivated(in & out)
• Space economy and synergy between tanks, Easy installation, Suitable to use with Heat Pumps

Capacities:

• 260L (200+60): Surface area: 2,50 m²
• 340L (250+90): Surface area: 2,50 m²
• 390L (300+90): Surface area: 3,00 m²

Capacites:

• 150L, 200L, 300L, 400L and 500L

Dimensions:

• Ø550, Ø620, Ø710 (mm)

Height:

• 1120, 1420, 1570, 1560, 1910 (mm)

Technical Data:

• Tank Construction Stainless Steel 444 (1.4521)
• Solar Heat Exchanger Surface Area: 0,67m², 0,77m², 1,32m², 1,73m² and 2,13m²
• Solar Heat Exchanger Volume: 3,1L, 3,5L, 6,0L, 7,9L and 9,8L
• Solar Heat Exchanger Rated Output: 21kW, 23kW, 36kW, 52kW and 60kW
• Boiler Heat Exchanger Surface Area: 0,55m², 0,67m², 0,83m², 1,00m² and 1,40m²
• Boiler Heat Exchanger Volume: 2,5L, 3,1L, 3,8L, 5,9L and 8,2L
• Boiler Heat Exchanger Rated Output: 19kW, 21kW, 28kW, 29kW and 43kW
• Electrical Backup: 1500W x 230V, 2000W x 230V and 3000W x 230V
• Insulation – Rigid Polyurethane 50mm
• Outer Casing: Powder Coated Galvanized Steel
• Max. Working Pressure – Tank: 8 bar
• Max. Working Temperature - Tank 85ºC
• Max. Working Pressure – Heat Exchanger 8 bar
• Max. Working Temperature Heat Exchanger: 95ºC
• ErP Label C and D
• Standby Losses: 63W, 77W, 94W, 112W and 133W
