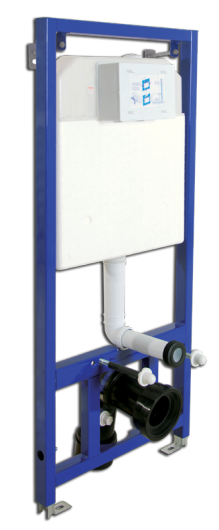

Concealed Cistern, suitable for brickwall and gypsum walls installation.

• EN 14055 CL 1 - 7 - NL I - VR II
• Discharge volume 3/6 L
• Appropriate For Dry Wall Installation And Brick Wall Installation
• Completely preassembled in the factory
• Water tank capacity 10 L max.
• Tank depth 80 mm (Overall thickness including frame 100 mm)
• Mechanical Dual Flush
• Water supply connection top right G 1/2 Male
• Acoustic Class (1 st Class) EN 14124 Inlet Valve
• Water flow pressure 0.3 MPa (3 bar) / Max Vol : 9.0 dB,Flow rate : 9L/min
• Impact Copolymer special PP Body. (High resistance to impact and thermal shock)
• Styropor insulation in front of the body for a better acoustic level and to prevent condensation.
• Powder coated, tubing profile thick (30 mm x 40 mm) metal frame.
• WC hanging rods can bear up to 400 kgs. (Adjustable for 18 or 23 cm axial distance of toilet bowls.)
