The FM magnetic filter is a device designed to trap solid pollutants carried by water in central heating installations, heating networks, heat centers, boiler rooms, as well as in glycol installations in air-conditioning systems. Their use allows for the proper operation of heat exchangers, pumps, boilers and other system devices, preventing the deposition of impurities that remain in the desilter and are easy to remove. Contrary to systems without a filter separator, the sedimentation of sludge and limescale effectively reduces the efficiency of devices operating in such conditions.

The PFM 20 under-boiler magnetic filter is made of brass. It is equipped with a magnetic cartridge 12,000 G, a 500 μm mesh filter and a brass plug. The mesh filter inside eliminates solid impurities in the system, and a strong neodymium magnet collects and catches ferromagnetic impurities. Thanks to its compact design, the PFM20 filter fits all types of boilers on the market with GZ 3/4 " connections, and the brass body design guarantees long-term reliability of the product.

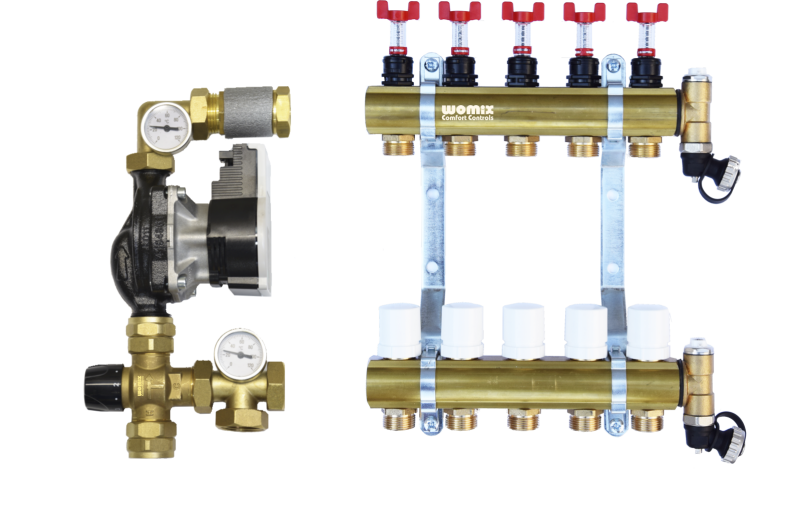

A wide range of pump group systems from small home systems to industrial systems.

The products for heat pump installations include:

- Two-zone accumulation hydraulic separator DUO-ZONER - serves as a tank, hydraulic separator and a manifold for two heating circuits. It allows you to handle up to 2 heating circuits without the use of additional devices.

- Multi-zone accumulation hydraulic separator MULTI-ZONER - serves as a tank and a hydraulic separator with an output to the central heating system. It gives the possibility of using one heating circuit connected directly or operating up to 5 heating circuits using the central heating manifold C 60 - DN 25 or C 70 - DN 25.

- Buffer tanks - The hanging buffer tank has been designed to work with various heating devices, such as

central heating boilers. or heat pumps to collect heat. It is equipped with brackets for mounting the device on the wall, an automatic air vent and an immersion sleeve for connecting a temperature sensor.

- Heat pump or air conditioner WM stand / bracket - intended for heat pumps or air conditioners are made of steel. The stability of the stand has been increased by the use of adjustment fasteners on both sides. The design of the stand guarantees that it can be used with any heat pump or air conditioner

Mixing valves MIX M are used in central heating. Tree-way mixing valve is used primarily to reduce the temperature of heating circuit such as floor heating systems. Four-way mixing valve in addition to temperature control circuit protects the boiler/ heat source from a low return temperature. Fully automatic operation of the valve can be provided by the actuator from Womix like MP 10.

MP 10 actuator consists of a synchronous motor with capacitor, two limit switches, two cams positioned on the 90 degrees, the knob, the color scale for visualizing the position of the heart of the valve, a switch for manually changing the position of the heart of the valve. The factory is equipped with a 2 meter cable 3 x 0.75 mm2 and an adapter A 101 for mounting the actuator on the mixing valve MIX M, MIX MT, 3F, 4F from WOMIX.

The FM magnetic filter is a device designed to trap solid pollutants carried by water in central heating installations, heating networks, heat centers, boiler rooms, as well as in glycol installations in air-conditioning systems. Their use allows for the proper operation of heat exchangers, pumps, boilers and other system devices, preventing the deposition of impurities that remain in the desilter and are easy to remove. Contrary to systems without a filter separator, the sedimentation of sludge and limescale effectively reduces the efficiency of devices operating in such conditions.

The PFM 20 under-boiler magnetic filter is made of brass. It is equipped with a magnetic cartridge 12,000 G, a 500 μm mesh filter and a brass plug. The mesh filter inside eliminates solid impurities in the system, and a strong neodymium magnet collects and catches ferromagnetic impurities. Thanks to its compact design, the PFM20 filter fits all types of boilers on the market with GZ 3/4 " connections, and the brass body design guarantees long-term reliability of the product.

A wide range of pump group systems from small home systems to industrial systems.

The products for heat pump installations include:

- Two-zone accumulation hydraulic separator DUO-ZONER - serves as a tank, hydraulic separator and a manifold for two heating circuits. It allows you to handle up to 2 heating circuits without the use of additional devices.

- Multi-zone accumulation hydraulic separator MULTI-ZONER - serves as a tank and a hydraulic separator with an output to the central heating system. It gives the possibility of using one heating circuit connected directly or operating up to 5 heating circuits using the central heating manifold C 60 - DN 25 or C 70 - DN 25.

- Buffer tanks - The hanging buffer tank has been designed to work with various heating devices, such as

central heating boilers. or heat pumps to collect heat. It is equipped with brackets for mounting the device on the wall, an automatic air vent and an immersion sleeve for connecting a temperature sensor.

- Heat pump or air conditioner WM stand / bracket - intended for heat pumps or air conditioners are made of steel. The stability of the stand has been increased by the use of adjustment fasteners on both sides. The design of the stand guarantees that it can be used with any heat pump or air conditioner
