ClipRail to fasten pipes with an OD of 16 and 17 mm ( 1/2")

• no risk of damage to the pipe
• very good hold of the pipe and uplift less than 5 mm (3/16")
• pipe distance 5 cm (2")
• extremely low design: 22 mm (7/8")
• available with integrated barbs or adhesive tape
• all 3 versions available with a hinge
• separating without tools - extension possible as long as needed through easy, detachable snap joints every 20 cm (8")
• length of rail 1 m (3 1/4 ft) or 2 m with hinge (6 1/2 ft)

We offer different Staple-Systems - solutions also for you

• Staples for electric heating cables with an OD of 3 - 8 mm (1/8" - 5/16") as well as for tubes with an OD of 6 - 12 mm (1/4" - 3/8")
• Staples for Tubes with an OD of 16 - 20 mm (1/2" - 5/8") in different length, suitable for different insulations
• all our different Staples can be installed with the appropiate suitable - worldwide favoured - Tacker Tool

Please contact us for a system tailored to your requirements

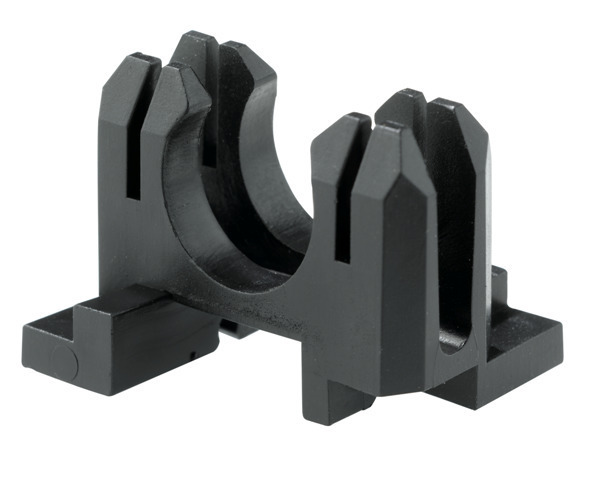

Plastic Bend Supports for tubes with an OD from 8 - 35 mm (3/8" - 1 1/4")

• no corrosion, no sharp edges or burrs
• no sound transmission
• available with center mounting ears
• highly heat resistant, strong and durable material (fiber glass reinforced nylon)
• required bending radius of 5 x D is maintained

Rapid Mounting Rail with predetermined dividing sections

• for gently holding the tube
• the resilient slit allows tube tolerances and guarantees that the tube is protected against damage when pressed into the rail and won't come back out
• pre-scored break lines allow quick installation without tools
• the marks allow pipe installation without tape measure

Mounting Rails available for pipes with an OD of 10 mm to 25 mm (1/2"-3/4")

• Standard Rail length 2 m (6 1/2 ft), other length on request
• Standard packing unit: 896 m (2,940 ft) - 28 bundles à 32 m (105 ft)
