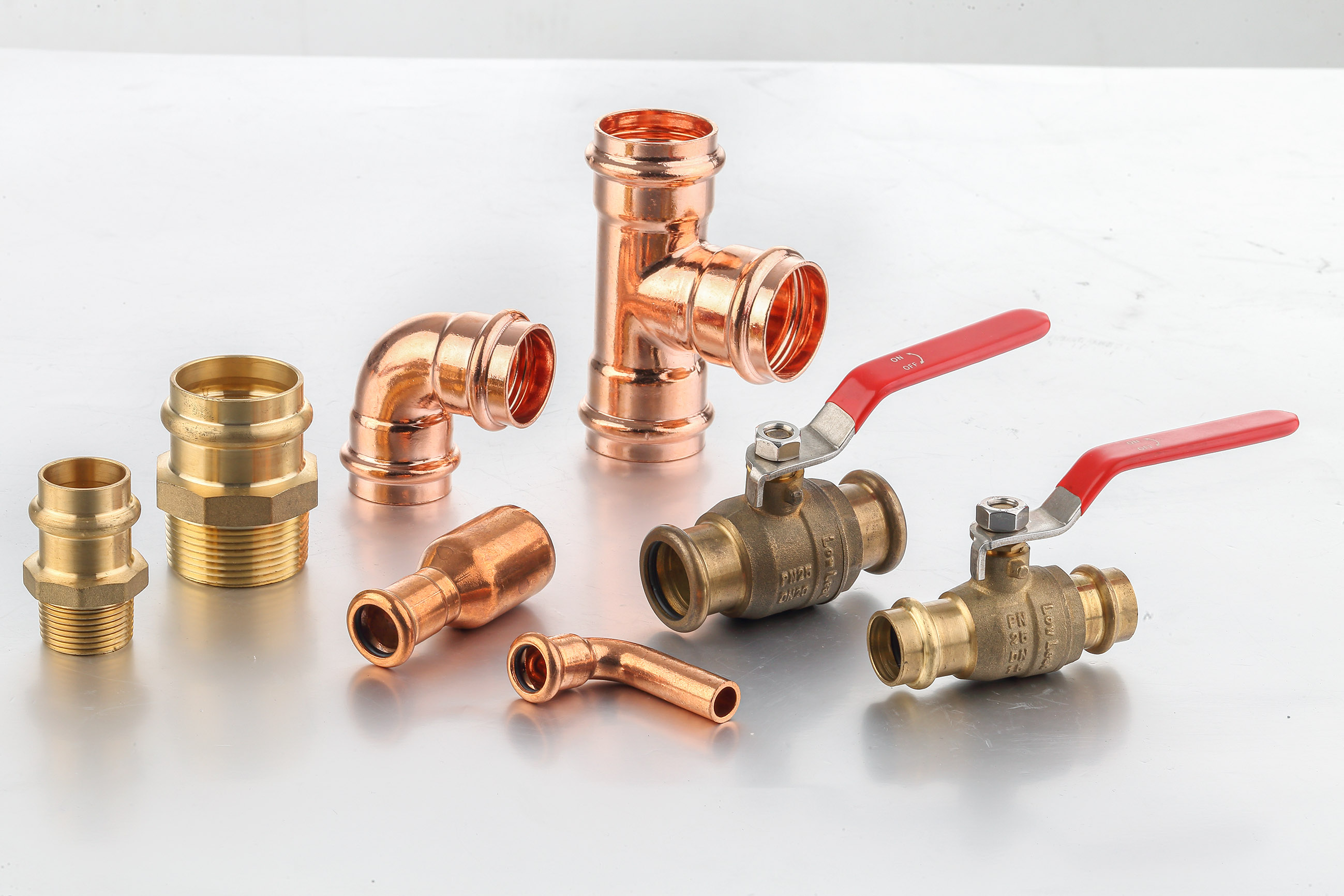

• Fitting sizes: 1/2”~4”(12mm~108mm) V (15mm~54mm)
• Valve sizes: 1/2”~4” (15mm~54mm) M&V
• Press indicates sleeve (optional)
• Both M and V profile press design
• 420 stainless steel grip ring for 2½" to 4" fittings and valves
• LBP O-ring : Un-pressed Leak System
• Copper pipe in accordance with ASTM B88 (types K, L, and M) or B75

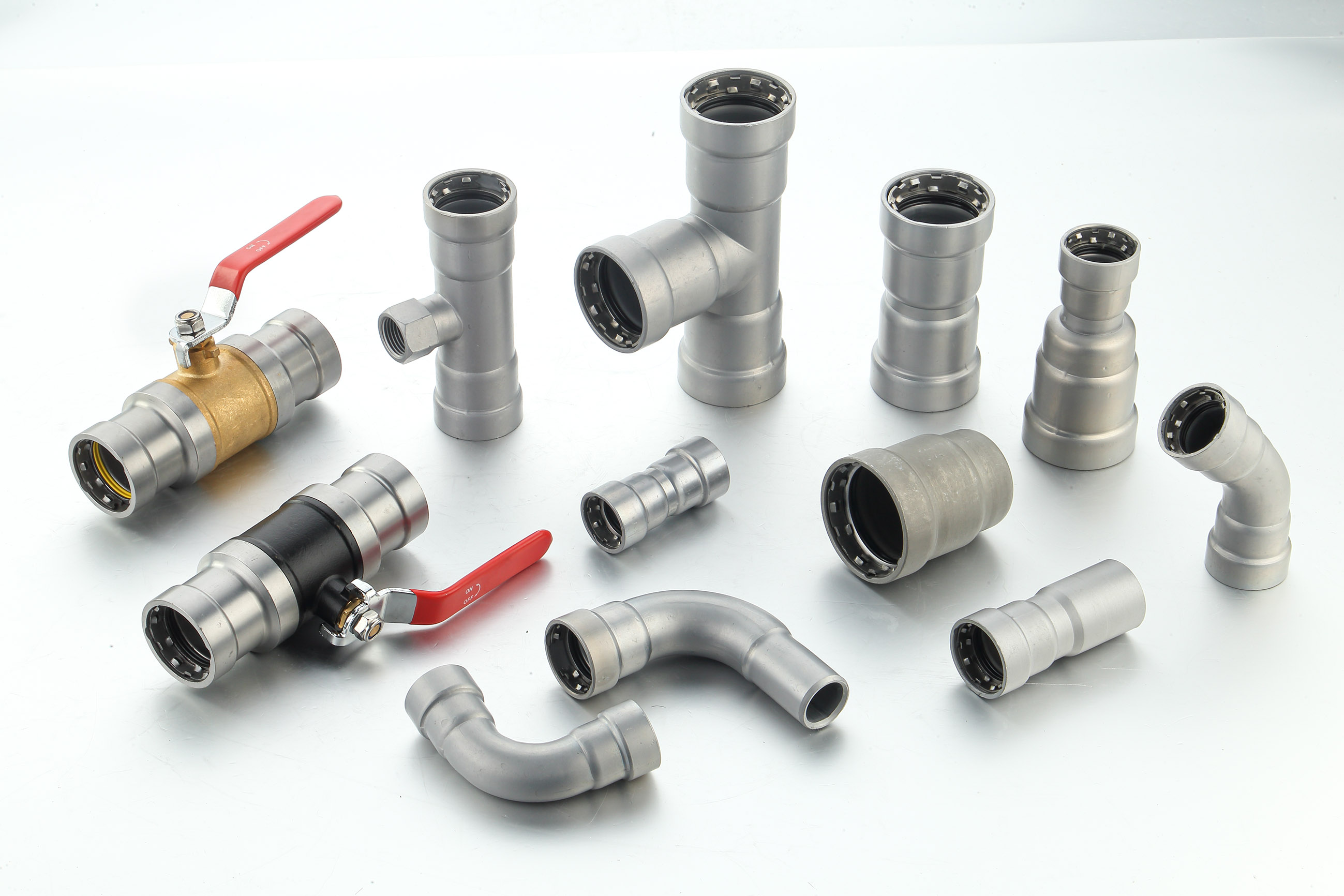

316L 304L 304 Stainless steel press fitting and valve to be used in 15mm to 108mm Stainless steel pipes
in almost ALL applications, bring you not only efficient but also safety economical and
reliable connection.

• Fitting sizes: 1/2~4 (15mm~108mm)
• Valve sizes: 1/2~2 (15mm~54mm)
• Grip ring Stainless Steel 316L or 304
• Press indicates sleeve (optional)
• LBP O-ring : Un-pressed Leak System
• According to DIN EN 10305‑3 VDI Regulation 2035 and DIN EN 12828

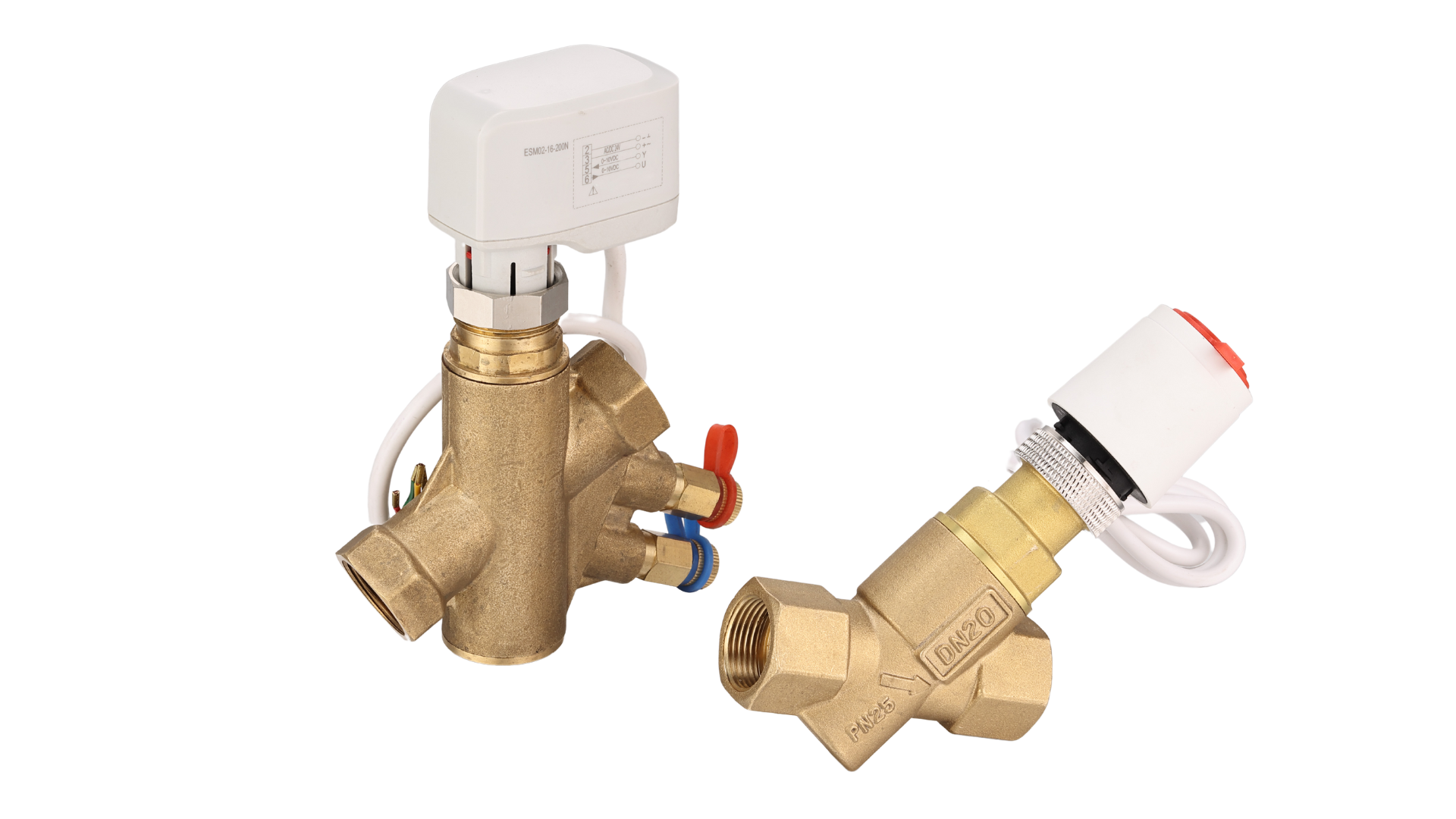

Control with innovative diaphragm-based self-adjustment feature to ensure the self-balance.
It delivery precisedly the flow rate set by system indenpendent of pressure change (within the
operating range) in the system. The valve can be adjusted to set to maximum flow limited to
each circuit without stroke limitation.

• Size: DN15-40 / 1/2“ – 1 1/2”
• Max operational ΔP:400kPa / 58 psi
• Valve Body 1/2~1 1/4 Brass 1 1/2~2 Cast iron
• Temperature Range: 0°C to 120°C
• Max flow rate 90l/h to 23000l/h
• Pressure Class: PN25
• Acturate close off pressure 200N, DN15, DN50

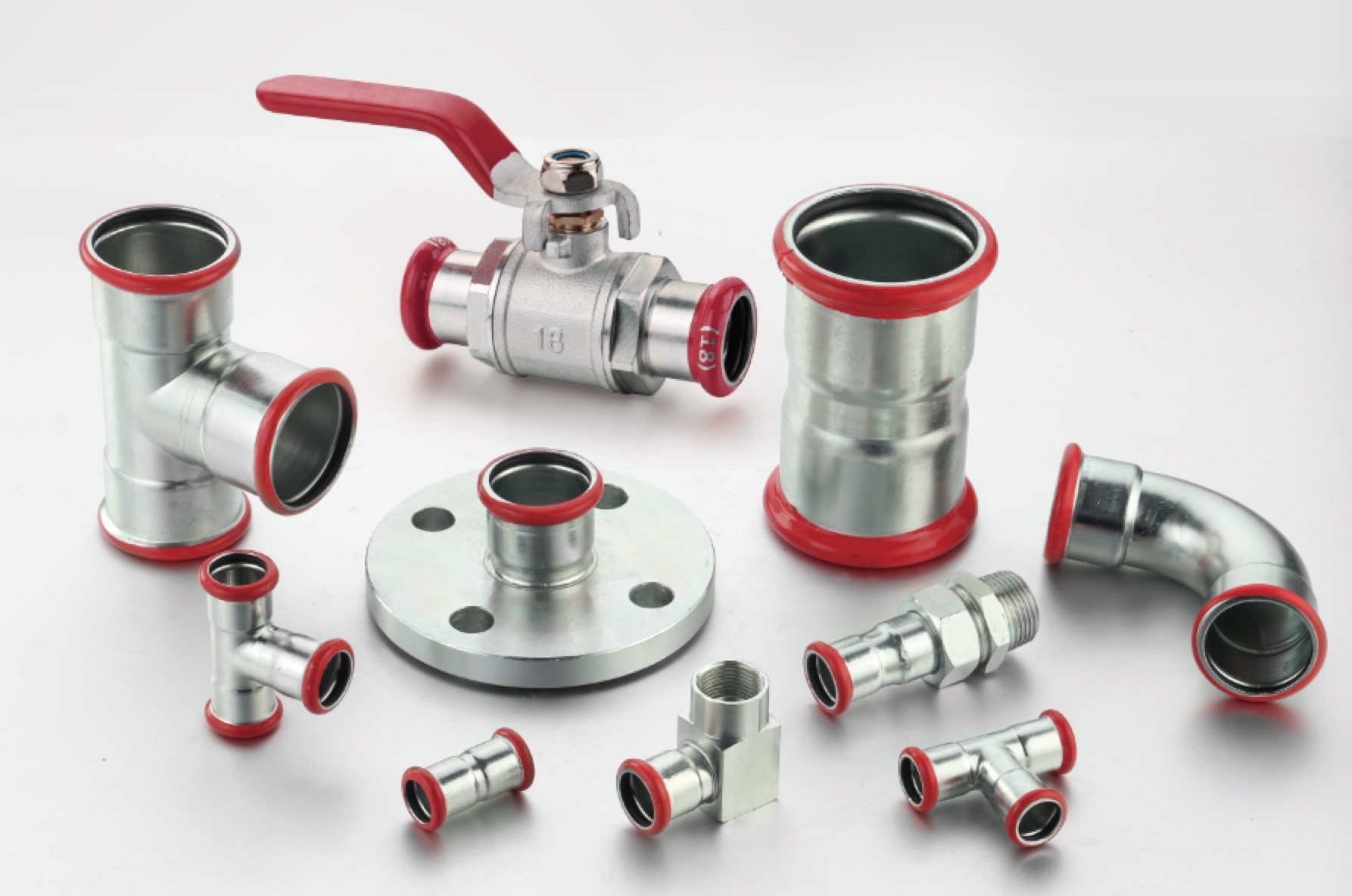

• Fitting sizes: 15mm~108mm
• Valve sizes: 15mm~54mm
• Press indicates sleeve (optional)
• LBP O-ring : Un-pressed Leak System
• According to DIN EN 10305‑3 VDI Regulation 2035 and DIN EN 12828
