AFS Boru Sanayi A.S.

ECO-MIX

ECO-MIX

AFS Boru Sanayi A.S.

Supplier profile All products

Contact supplier

Description

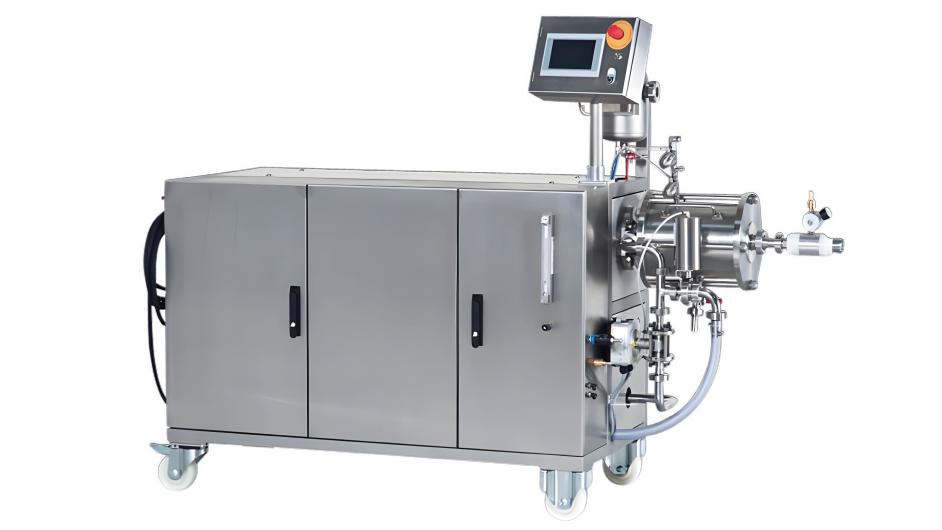

ECO-MIX is a cost-effective, dynamic whipping unit for continuous foaming of pumpable and low-viscosity media from all areas of the non-food industries. It is ideal for use in the chemical and carpet industries as well as in textile finishing.

Your advantages with ECO-MIX

High-quality basic equipment with automatic, process computer-controlled regulation of the air volume
Numerous variation possibilities of mixing heads, flow meters, seals, controls and monitors
Automatic gas dosing guarantees constant foam density
Product-specific shaft sealing by means of mechanical seal with locking pressure system
Digital display for air volume/foam weight
Automatic foam height control (MA2) is available as an option
Generously dimensioned design offers the possibility of installing additional pumps and pipes (e.g. for CIP cleaning)
Capacity range: from 20-200 kg/h to 120-1,000 kg/h

More from us

Our website

More products by AFS Boru Sanayi A.S.

Trade fair innovation

ALUAFS F MARINE

Suitable for low and medium pressure ventilation and air conditioning systems,
Non-insulated,
Aluminium inner and outer face,
MARINE certified,
M0 certified according to France national reaction to fire standard

Flexible Duct Construction 3 ply Aluminium + 1 ply Polyester Flexible Duct Nominal Thickness 74 micron Diameter Range 82 mm - 800 mm Temperature Range -30 °C / +250 °C Air Velocity 30 m/s (maximum) Operating Pressure 3000 Pa (maximum) Standard Length 10 m Packing Single cardboard box Reaction to Fire Limited Combustibility

Trade fair innovation

ISOAFS ALU F MARINE ECOSOFT

Suitable for low and medium pressure ventilation and air conditioning systems,
Thermally insulated,
Aluminium inner and outer face,
MARINE certified,
A+ labelled
Insulated with formaldehyde free glass wool
M0+M1 certified according to France national reaction to fire standard

Flexible Duct Construction 3 ply Aluminium + 1 ply Polyester Flexible Duct Nominal Thickness 74 micron Jacket Construction 1 ply Aluminium + 2 ply Polyester Jacket Nominal Thickness 45 micron Insulation - Thickness - Density Glasswool 25 mm - 16 kg/m³ Diameter Range 82 mm - 800 mm Temperature Range -30 °C / +250 °C Air Velocity 30 m/s (maximum) Operating Pressure 3000 Pa (maximum) Standard Length 10 m Packing Single cardboard Reaction to Fire Difficult to Ignite

Trade fair innovation

ISOAFS ALU ECOSOFT

Suitable for low and medium pressure ventilation and air conditioning systems,
Thermally insulated,
Aluminium inner and outer face,
GREENGUARD GOLD certified,
A+ labelled
Insulated with formaldehyde free glass wool
M1 certified according to France national reaction to fire standard

Flexible Duct Construction 3 ply Aluminium + 2 ply Polyester Flexible Duct Nominal Thickness 70 micron Jacket Construction 1 ply Aluminium + 2 ply Polyester Jacket Nominal Thickness 45 micron Insulation - Thickness - Density Glasswool 25 mm - 16 kg/m³ Diameter Range 52 mm - 800 mm Temperature Range -30 °C / +150 °C Air Velocity 30 m/s (maximum) Operating Pressure 3000 Pa (maximum) Standard Length 10 m Packing Single cardboard box

Trade fair innovation

SONOAFS ALU ECOSOFT

Suitable for low and medium pressure ventilation and air conditioning systems
Thermally insulated
Aluminium inner and outer face
GREENGUARD GOLD certified
A+ labelled
Insulated with formaldehyde free glass wool
M1 certified according to France national reaction to fire standard
Class B certified according to European reaction to fire standard

Flexible Duct Construction 3 ply Aluminium + 2 ply Polyester Jacket Construction 1 ply Aluminium + 2 ply Polyester Jacket Nominal Thickness 45 micron Insulation - Thickness - Density Glasswool 25 mm - 16 kg/m³ Temperature Range -30 °C / +150 °C Air Velocity 30 m/s (maximum) Operating Pressure 3000 Pa (maximum) Standard Length 10 m Packing Single cardboard box Reaction to Fire Difficult to Ignite
