SDC 380 Gasket Series
SDC 380 Gasket Series
Description

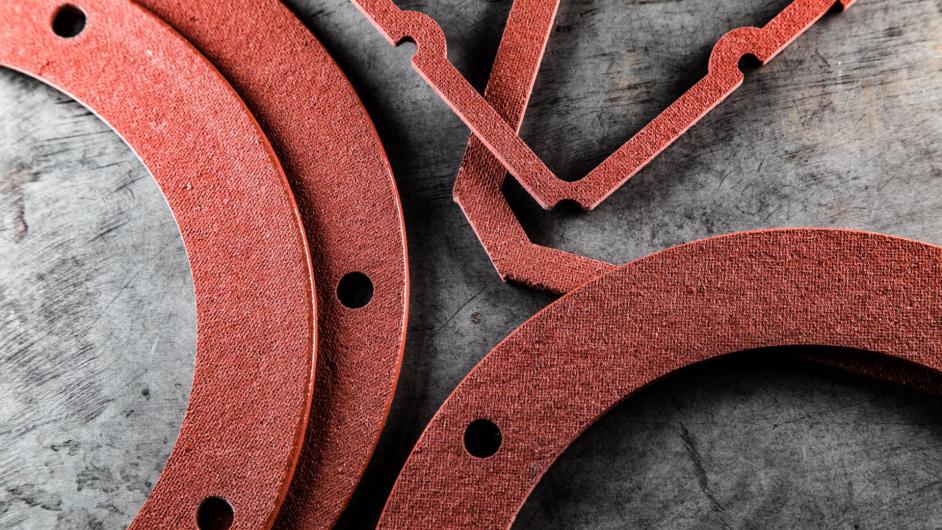

SDC 380 is the new special gasket introduced by Athena. It offers a lot of benefits from the combination between silicone rubber and fire-resistant-fibers in terms of low permeability and high resistance to extreme temperatures, ageing and acid condensation.
SDC 380 is specifically suited for special applications up to 300°C, where other standard gaskets cannot guarantee a perfect sealing. Athena R&D Department has a solid know how to provide its customers the best configuration in terms of size, shape and thickness.
MAIN FEATURES:
- Excellent Resistance to acid condensation inside the boiler heat exchanger
- High Resistance to humidity and ageing
- Good resistance to thermal shocks
- Extreme flexibility and adaptability to every surface
- Sizes and shapes fully customizable
TECHINCAL DATA
- Density: 0,69 ± 0,01 g/cm3
- Thermal Conductivity: λ = 0,11 W/m*K
- Tensile Strength: 0,81 ± 0,04 MPa
- Compression set: 300°C 18 MPa - 175°C 21 MPa
- Compressibility: min 20%
- Elastic Return: 56%
All technical data are based on laboratory tests. ATHENA S.p.A reserves the right to modify or update the characteristics of its product without obligation to anyone.
