Suitable for use at high temperature and pressure, with thermo-mechanical cycling or shock. Excellent resistance to creep, excellent chemical stability. Good tightness even with low tightening loads and flanges with irregular surface. Compliant to DIN28091-4. Ideal in the presence of saturated and superheated steam and chemically aggressive fluids, with the exception of highly oxidizing agents.

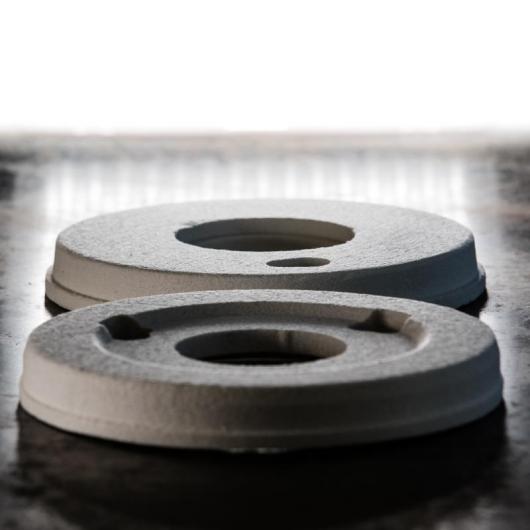

SDC 380 is the new special gasket introduced by Athena. It offers a lot of benefits from the combination between silicone rubber and fire-resistant-fibers in terms of low permeability and high resistance to extreme temperatures, ageing and acid condensation.

SDC 380 is specifically suited for special applications up to 300°C, where other standard gaskets cannot guarantee a perfect sealing. Athena R&D Department has a solid know how to provide its customers the best configuration in terms of size, shape and thickness.

MAIN FEATURES:

• Excellent Resistance to acid condensation inside the boiler heat exchanger
• High Resistance to humidity and ageing
• Good resistance to thermal shocks
• Extreme flexibility and adaptability to every surface
• Sizes and shapes fully customizable

TECHINCAL DATA

• Density: 0,69 ± 0,01 g/cm3
• Thermal Conductivity: λ = 0,11 W/m*K
• Tensile Strength: 0,81 ± 0,04 MPa
• Compression set: 300°C 18 MPa - 175°C 21 MPa
• Compressibility: min 20%
• Elastic Return: 56%

All technical data are based on laboratory tests. ATHENA S.p.A reserves the right to modify or update the characteristics of its product without obligation to anyone.

Fireproof biosoluble fiber rope, with excellent resistance to thermal shocks and high stability.

Greenshield and Blueshield are two innovative materials from Athena's HYDRONAT family, developed to meet the future needs of the HVAC sector, specifically designed for hybrid and hydrogen boilers. These compounds stand out for their ability to provide effective sealing against small molecules and exceptional impermeability to hydrogen. Greenshield offers resistance from -30°C to +140°C, while Blueshield operates efficiently within a temperature range of -25°C to +100°C. With over fifty years of experience, these solutions represent our commitment to innovation and sustainability in the boiler industry.

Suitable for use at high temperature and pressure, with thermo-mechanical cycling or shock. Excellent resistance to creep, excellent chemical stability. Good tightness even with low tightening loads and flanges with irregular surface. Compliant to DIN28091-4. Ideal in the presence of saturated and superheated steam and chemically aggressive fluids, with the exception of highly oxidizing agents.

SDC 380 is the new special gasket introduced by Athena. It offers a lot of benefits from the combination between silicone rubber and fire-resistant-fibers in terms of low permeability and high resistance to extreme temperatures, ageing and acid condensation.

SDC 380 is specifically suited for special applications up to 300°C, where other standard gaskets cannot guarantee a perfect sealing. Athena R&D Department has a solid know how to provide its customers the best configuration in terms of size, shape and thickness.

MAIN FEATURES:

• Excellent Resistance to acid condensation inside the boiler heat exchanger
• High Resistance to humidity and ageing
• Good resistance to thermal shocks
• Extreme flexibility and adaptability to every surface
• Sizes and shapes fully customizable

TECHINCAL DATA

• Density: 0,69 ± 0,01 g/cm3
• Thermal Conductivity: λ = 0,11 W/m*K
• Tensile Strength: 0,81 ± 0,04 MPa
• Compression set: 300°C 18 MPa - 175°C 21 MPa
• Compressibility: min 20%
• Elastic Return: 56%

All technical data are based on laboratory tests. ATHENA S.p.A reserves the right to modify or update the characteristics of its product without obligation to anyone.

Fireproof biosoluble fiber rope, with excellent resistance to thermal shocks and high stability.
