Capannoli Srl

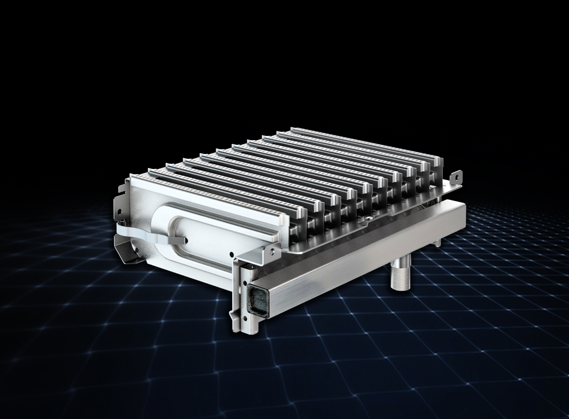

Atmospheric Bladed Burners

Description

Product Overview:

  • Designed with extensive use of CFD simulations
  • Modular construction allows for variation in number of blades
  • Fulfills EN and ANSI standards

Market Segments:

  • Residential boilers
  • Tankless water heaters

Technical Specifications:

  • Combustion type: Atmospheric
  • Size range: 5 to 20 blades each with length of 6.3" (160mm)
    • Available with .66", .74" and .80" (17mm, 19mm and 20.5mm) blade pitch
  • Input range per blade: 2.5k - 8.5k Btu/h (0.7 - 2.5 kW)
  • Power output range: 13k - 170k Btu/h (4 - 50 kW)
    • Turndown ratio 1:3
  • Low Noise: < 45 dB(A).
  • Material: Aluminized and stainless steel
