MANUAL DRIVE CLINCH UNIT MCP-44

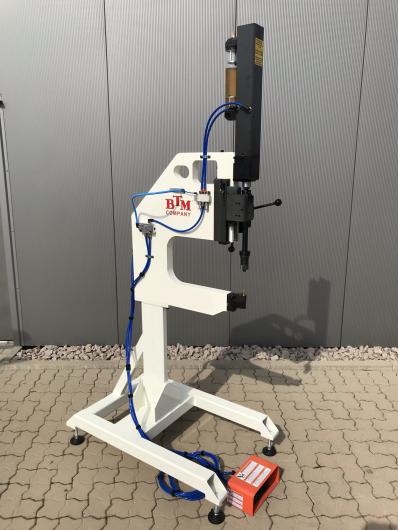

The MCP-44 Floor Standing machine is a pneumo-hydraulically operating press and can be used for clinching with all common BTM tools, for punching, coining, perforating and for pressing in bolts and nuts. At 6 bar, 45 kN of pressing force is generated via a pressure converter.

Up to 92 mm of infeed stroke can be manually set by the operator via a hand lever, and smaller strokes can also be preset via locking bolts. The power stroke is triggered by an additional foot pedal when an inside width of 6 mm is reached. In this position, several strokes can be performed in succession. A second foot pedal is used for the complete return stroke to the home position.

Thanks to BTM's standardized design with two jaw-side connection options, the MCP-44 post bed machine has a wide range of mold mounting options. This means that individual customer solutions can also be implemented with standardized mold mounting systems.

Features & Specifications

• Energy Supply: 5,5 bar (80 PSI) air
• Power Supply: pneumo- hydraulic
• Press Force: 45 kN
• Power Stroke: 8 mm
• Advance Stroke: 92 mm (manually)
• Total Stroke: 100 mm
• Throat Depth: 450 mm
• Retract stroke adjustable via locking pin (12,5mm - steps)
• Suitable for Tog-L-Loc® round, Lance-NLoc® rectangular and Oval-Loc® tools
• Sheet Thickness: approx. 4 mm max.
• Advance Stroke: by hand lever
• Power Stroke: by foot pedal
