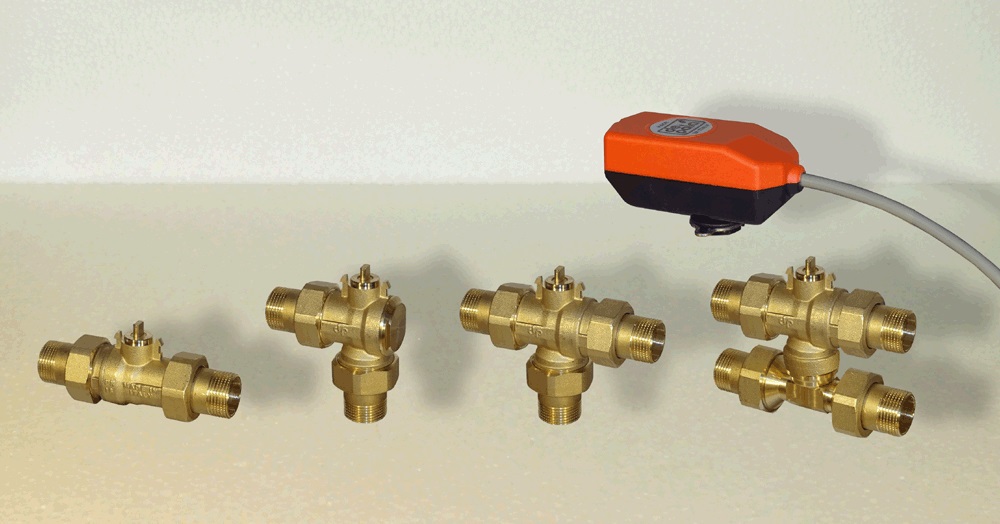

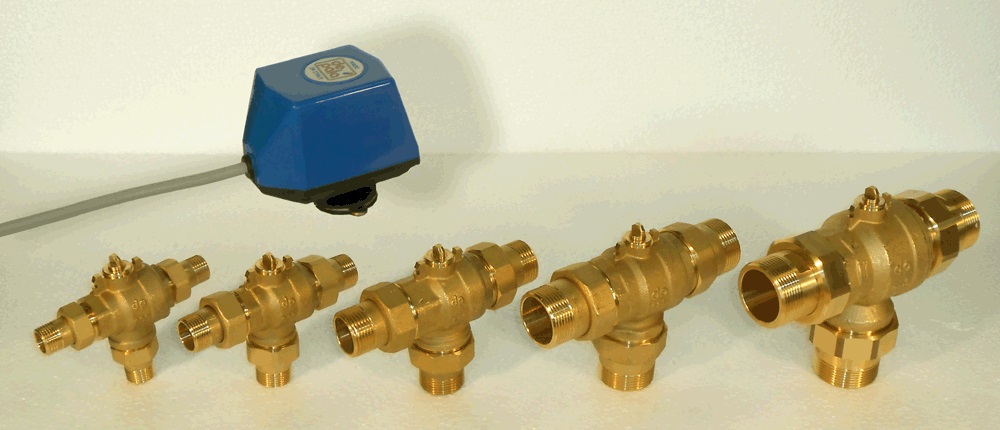

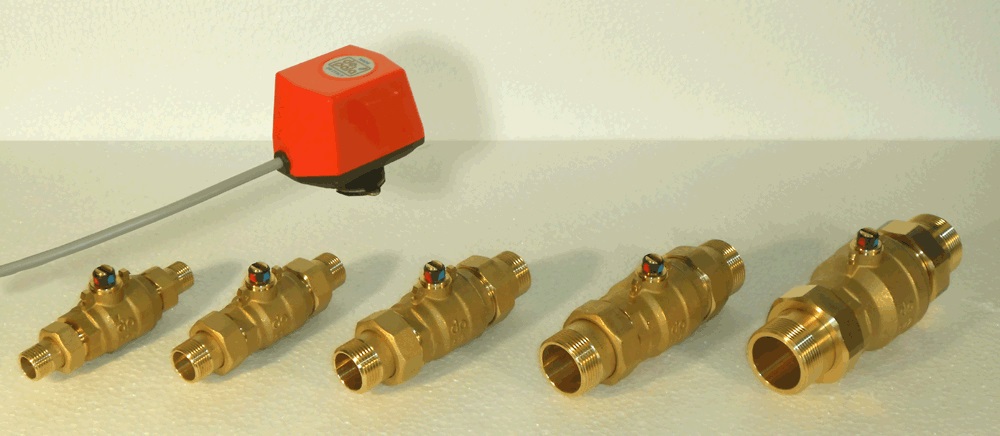

DE PALA 2-port, 3-port and 4-port compact motorized ball valves in brass. The complete range of valves are powered by a single bidirectional actuator with quick release coupling system. To open and close the flow, the valve rotates 90°. A colour indicator on valve shaft shows valve position. Valve can be suppliend with Female + Pipe-Union, or only Pipe-Unions Connection Fittings. Actuators are available in  different Supply Voltage versions, with one auxiliary switch. Rotation speed of 12"x 90°. Protection ratings available are IP54 or IP65.

VALVE:

Valve body : BRASS CW617N (UNI 12165)
Ball : BRASS CW617N (nickel-chromium plated)
SEALS on the ball and on the rod : PTFE and EPDM O-RINGS
Rod : DRAWN BRASS CW614N (UNI 12164) with double EPDM O-RING and PTFE seal
Nominal operating pressure : 16 bar
Maximum differential operating pressure : Δp 4 bar
Fluid temperature field : FROM 0 °C TO 100 °C
Utilisable fluids : WATER; WATER with GLYCOL or Fluids which are compatible with PTFE and EPDM rubber
Load loss : no effect (TOTAL FLOW TYPE)
Quick release bayonet coupling system
COUPLED SERVOMOTORS: Opening / closing time: 12"x 90°

ACTUATOR

Supply Voltage: 230VAC - 24VAC
Control type: 2 wires (relay inside) / 3 wires
n. 1 Aux. switch
Electric protection level: IP54 or IP65
