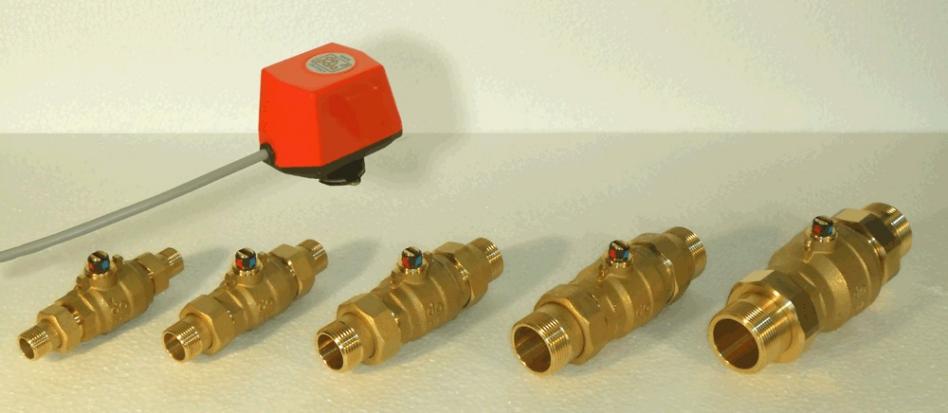

DE PALA 2-port, 3-port and 4-port compact motorized ball valves in brass. The complete range of valves are powered by a single bidirectional actuator with quick release coupling system. To open and close the flow, the valve rotates 90°. A colour indicator on valve shaft shows valve position. Valve can be suppliend with Female + Pipe-Union, or only Pipe-Unions Connection Fittings. Actuators are available in  different Supply Voltage versions, with one auxiliary switch. Rotation speed of 12"x 90°. Protection ratings available are IP54 or IP65.

VALVE:

Valve body : BRASS CW617N (UNI 12165)
Ball : BRASS CW617N (nickel-chromium plated)
SEALS on the ball and on the rod : PTFE and EPDM O-RINGS
Rod : DRAWN BRASS CW614N (UNI 12164) with double EPDM O-RING and PTFE seal
Nominal operating pressure : 16 bar
Maximum differential operating pressure : Δp 4 bar
Fluid temperature field : FROM 0 °C TO 100 °C
Utilisable fluids : WATER; WATER with GLYCOL or Fluids which are compatible with PTFE and EPDM rubber
Load loss : no effect (TOTAL FLOW TYPE)
Quick release bayonet coupling system
COUPLED SERVOMOTORS: Opening / closing time: 12"x 90°

ACTUATOR

Supply Voltage: 230VAC - 24VAC
Control type: 2 wires (relay inside) / 3 wires
n. 1 Aux. switch
Electric protection level: IP54 or IP65

DE PALA Brass 2-port and 3-port motorized ball valves in brass up to 4" - DN100. These valves are produced following ISO 5211 connection flange standards. To open and close the flow, the valve rotates 90°. Valves have Female  Connection Fittings. Actuators are available in  different Supply Voltage versions, with one or two aux. switches, and a 60"x 90° rotation speed. Protection ratings available are IP42, IP54 or IP65.

• Threading F-F UNI ISO 228,
• PN 40 (3” PN 25, 4” PN 16), diameters from 1/4“ to 4“,
• Rod sealed with double EPDM O RING,
• Fluid temperature –10°C+100°C.
• Utilisable fluids: water or water with max. 40% glycol,
• fluids which are compatible with PTFE and EPDM,
• Body valve made of brass CW614N then nickel-plated,
• Ball and rod made of brass CW614N,
• Seats for the ball made of PTFE with anti-seizing O RING

COUPLED SERVOMOTORS: Opening / closing time:  60" - 120"
Supply Voltage: 230VAC - 24VAC - (SPECIAL TYPE : 24VDC)
Control type: 2 wires (relay inside) / 3 wires
Auxiliary switch version available
Electric protection level: IP42 - IP54 - IP65

DE PALA 3-port valve with a "T" bored valve to divert the flow from central AB inlet to lateral A or B. These valves are powered by a bidirectional actuator with quick release coupling system. To open and close the flow, the valve rotates 90°. A colour indicator on valve shaft shows valve position. Valve can be suppliend with Female, Pipe-Union, Male or Connection Fittings. Actuators are available in  different Supply Voltage versions, with one, two or no aux. switches, two or no aux. switches, and a wide range of rotation speed. Protection ratings available are IP54 or IP65.

VALVE:
Valve body : BRASS CW617N (UNI 12165)
Ball : BRASS CW617N (nickel-chromium plated)
SEALS on the ball and on the rod : PTFE and EPDM O-RINGS
Rod : DRAWN BRASS CW614N (UNI 12164) with double EPDM O-RING and PTFE seal
Nominal operating pressure : 16 bar
Maximum differential operating pressure : Δp 4 bar
Fluid temperature field : FROM 0 °C TO 100 °C
Utilisable fluids : WATER; WATER with GLYCOL or Fluids which are compatible with PTFE and EPDM rubber
Load loss : no effect (TOTAL FLOW TYPE)
Quick release bayonet coupling system
COUPLED SERVOMOTORS: Opening / closing time: 12"x 90°

ACTUATOR
Supply Voltage: 230VAC - 24VAC - (SPECIAL TYPE : 110VAC - 12VDC - 24VDC)
Ambient temperature: 0 - 65 °C
Control type: 2 wires (relay inside) / 3 wires
n. 1 Aux. switch
Electric protection level: IP54 or IP65

DE PALA 3-port valve with a Lateral Diverting bored valve to divert the flow from lateral AB inlet to streigth A or diverted B outlets. These valves are powered by a bidirectional actuator with quick release coupling system. To open and close the flow, the valve rotates 90°. A colour indicator on valve shaft shows valve position. Valve can be suppliend with Female, Pipe-Union, Male or Connection Fittings. Actuators are available in  different Supply Voltage versions, with one, two or no aux. switches, and a wide range of rotation speed. Protection ratings available are IP54 or IP65.

VALVE:
Valve body : BRASS CW617N (UNI 12165)
Ball : BRASS CW617N (nickel-chromium plated)
SEALS on the ball and on the rod : PTFE and EPDM O-RINGS
Rod : DRAWN BRASS CW614N (UNI 12164) with double EPDM O-RING and PTFE seal
Nominal operating pressure : 16 bar
Maximum differential operating pressure : Δp 4 bar
Fluid temperature field : FROM 0 °C TO 100 °C
Utilisable fluids : WATER; WATER with GLYCOL or Fluids which are compatible with PTFE and EPDM rubber
Load loss : no effect (TOTAL FLOW TYPE)
Quick release bayonet coupling system
COUPLED SERVOMOTORS: Opening / closing time: 12"x 90°

ACTUATOR
Supply Voltage: 230VAC - 24VAC - (SPECIAL TYPE : 110VAC - 12VDC - 24VDC)
Ambient temperature: 0 - 65 °C
Control type: 2 wires (relay inside) / 3 wires
n. 1 Aux. switch
Electric protection level: IP54 or IP65

DE PALA 2-port, 3-port and 4-port compact motorized ball valves in brass. The complete range of valves are powered by a single bidirectional actuator with quick release coupling system. To open and close the flow, the valve rotates 90°. A colour indicator on valve shaft shows valve position. Valve can be suppliend with Female + Pipe-Union, or only Pipe-Unions Connection Fittings. Actuators are available in  different Supply Voltage versions, with one auxiliary switch. Rotation speed of 12"x 90°. Protection ratings available are IP54 or IP65.

VALVE:

Valve body : BRASS CW617N (UNI 12165)
Ball : BRASS CW617N (nickel-chromium plated)
SEALS on the ball and on the rod : PTFE and EPDM O-RINGS
Rod : DRAWN BRASS CW614N (UNI 12164) with double EPDM O-RING and PTFE seal
Nominal operating pressure : 16 bar
Maximum differential operating pressure : Δp 4 bar
Fluid temperature field : FROM 0 °C TO 100 °C
Utilisable fluids : WATER; WATER with GLYCOL or Fluids which are compatible with PTFE and EPDM rubber
Load loss : no effect (TOTAL FLOW TYPE)
Quick release bayonet coupling system
COUPLED SERVOMOTORS: Opening / closing time: 12"x 90°

ACTUATOR

Supply Voltage: 230VAC - 24VAC
Control type: 2 wires (relay inside) / 3 wires
n. 1 Aux. switch
Electric protection level: IP54 or IP65

DE PALA Brass 2-port and 3-port motorized ball valves in brass up to 4" - DN100. These valves are produced following ISO 5211 connection flange standards. To open and close the flow, the valve rotates 90°. Valves have Female  Connection Fittings. Actuators are available in  different Supply Voltage versions, with one or two aux. switches, and a 60"x 90° rotation speed. Protection ratings available are IP42, IP54 or IP65.

• Threading F-F UNI ISO 228,
• PN 40 (3” PN 25, 4” PN 16), diameters from 1/4“ to 4“,
• Rod sealed with double EPDM O RING,
• Fluid temperature –10°C+100°C.
• Utilisable fluids: water or water with max. 40% glycol,
• fluids which are compatible with PTFE and EPDM,
• Body valve made of brass CW614N then nickel-plated,
• Ball and rod made of brass CW614N,
• Seats for the ball made of PTFE with anti-seizing O RING

COUPLED SERVOMOTORS: Opening / closing time:  60" - 120"
Supply Voltage: 230VAC - 24VAC - (SPECIAL TYPE : 24VDC)
Control type: 2 wires (relay inside) / 3 wires
Auxiliary switch version available
Electric protection level: IP42 - IP54 - IP65

DE PALA 3-port valve with a "T" bored valve to divert the flow from central AB inlet to lateral A or B. These valves are powered by a bidirectional actuator with quick release coupling system. To open and close the flow, the valve rotates 90°. A colour indicator on valve shaft shows valve position. Valve can be suppliend with Female, Pipe-Union, Male or Connection Fittings. Actuators are available in  different Supply Voltage versions, with one, two or no aux. switches, two or no aux. switches, and a wide range of rotation speed. Protection ratings available are IP54 or IP65.

VALVE:
Valve body : BRASS CW617N (UNI 12165)
Ball : BRASS CW617N (nickel-chromium plated)
SEALS on the ball and on the rod : PTFE and EPDM O-RINGS
Rod : DRAWN BRASS CW614N (UNI 12164) with double EPDM O-RING and PTFE seal
Nominal operating pressure : 16 bar
Maximum differential operating pressure : Δp 4 bar
Fluid temperature field : FROM 0 °C TO 100 °C
Utilisable fluids : WATER; WATER with GLYCOL or Fluids which are compatible with PTFE and EPDM rubber
Load loss : no effect (TOTAL FLOW TYPE)
Quick release bayonet coupling system
COUPLED SERVOMOTORS: Opening / closing time: 12"x 90°

ACTUATOR
Supply Voltage: 230VAC - 24VAC - (SPECIAL TYPE : 110VAC - 12VDC - 24VDC)
Ambient temperature: 0 - 65 °C
Control type: 2 wires (relay inside) / 3 wires
n. 1 Aux. switch
Electric protection level: IP54 or IP65
