Dry-Air Honeycomb Chemical filter, DRISORB series, is an 'in-situ' synthesized/deposited (insoluble metal silicate and activated carbon) macroporous desiccant honeycomb matrix, impregnated with a choice of oxidizing agents and alkaline solutions. It has high efficiency and reliability. The filter is specially designed for higher airflow, therefore, requires a lower surface area and has a lower pressure drop.

Unique Features:

• Bulk density >320.3 Kg/Cu.mtr. (> 20 Lbs./Cu.Ft.)
• Honeycomb monolith media available in 1'' to 12''depth in standard and custom filter sizes
• Tested in accordance with ASHRAE 145.2 P and ISO 111555-2
• Higher airflow range from 2.0 -3.0 m/s (400-600 FPM)
• 100% efficiency
• Tested by most respectable RTI lab of the USA
• Longer life (higher MTBR)
• Available in a combination with various impregnates
• Very low-pressure drop
• Backed by DRI's cutting-edge state-of-art R&D and testing facilities
• UL certified media

Advantages of DRISORB™ Filters

• Optimum choice for places with space constraints
• Impregnation % higher due to its design
• Easy to replace and maintain

DRI V Bank Cassettes & Cartridge Filters:

DRI offers various types of V bank & round Cartridge filters for different industrial & commercial applications, with a choice of pocket depths & low surface velocities.
The V Bank Cassettes & cartridges are made of made stainless steel.

G3MA Passive Desiccant Dehumidification Wheels Patented

Achieve Optimum Dehumidification Without energy usage

Regenerates desiccant without additional energy usage

The unique G3MA "Passive" Desiccant Dehumidification Wheel (Patented) has the ability to be regenerated with the 50% RH room return air allowing for substantial moisture removal through dehumidification of the fresh air being supplied to the room.

• Average removal around 14 gr/lb
• High-performance in-situ synthesized desiccant (wheel)
• Fully water washable
• 100% non-flammable
• Removes moisture from a saturated air stream without heat / thermal regeneration
• No washing away of desiccant on continued exposure to saturated / wet air

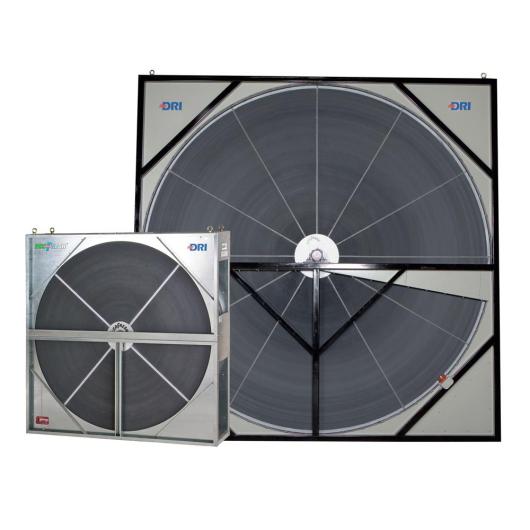

''EcoDry'' Desiccant Rotors

• The desiccant honeycomb rotor media shall be adsorbent, non toxic, non flammable, fully water washable. The substrate of the rotor shall not be made from asbestos or any synthetic material, and shall not have any toxic desiccants impregnated like lithium chloride, etc.
• The desiccant media shall be pH natural
• The desiccant media shall have in-situ synthesized metal silicate desiccant on an inert inorganic fiber substrate
• The active desiccant material shall be at least 80% of the media weight, so as to ensure high performance and minimal heat carryover
• The net organics in the honeycomb media shall not exceed 2%
• The desiccant rotor shall have integral long-life bearings supported by a simple fixed shaft design to allow a simple slide out of the rotor/bed
• The desiccant dehumidification media shall have a perimeter flange which should encircle the entire perimeter to allow greater durability and to roll the rotor on the ground, without damage. The perimeter flange should be smooth and consistent to serve as a perimeter seal surface, thus ensuring a long life for the perimeter seal, without being cut, torn, or otherwise damaged
• The desiccant rotor shall have a perimeter flange and shall have "teeth" located around the perimeter, to ensure a positive and slip-free rotation with a chain drive mechanism
• The desiccant media shall not fracture due to repeated temperature and moisture cycling and all the materials of construction shall be non-toxic
• The surface of the media shall have a special edge hardening so as to ensure a smooth surface and long life of both the media and the seal contacting it
• The desiccant media shall not use any organic burn-off process, as this shall weaken the media structure
• The desiccant rotor shall have a long life with adequate air filtration

DRI...Green 'Air Conditioning' world-over

DRI has established a reputation around the world for technology innovations and industry leadership in Fresh Air Treatment Products and Solutions which help maintain healthy IAQ (Indoor Air Quality) and also meet today's environmental challenges. DRI has played a pioneering role in innovating various new Fresh Air HVAC Systems. Our products are well suited to a wide array of applications in commercial spaces like hotels, hospitals, supermarkets, auditoriums, and all other conditioned spaces as well as conditioned manufacturing & processing areas like pharmaceuticals, food, electronics, etc.

How does the product work ?

The DRI G3MA "Passive" Desiccant Wheel (Patented) does not require thermal heat for regeneration. The unique "Passive" Desiccant Wheel has the ability to be regenerated with the 50% RH room return air allowing for substantial moisture removal through dehumidification of the saturated (100% RH) Fresh Air being supplied to the room.

EcoCool Evaporative Cooling Pad uses the simple principle of Cooling by evaporation i.e. passing hot fresh air through the wet and cool surface to bring temperatures down.

Sensible Heat is thereby changed to Latent Heat and Fresh Air leaving the pads is humidified and cold.

The EcoCool Evaporative Cooling Pads are saturated with water, sprayed onto it through prefixed channels.

Fresh Air, which is warm or hot, is blown (with the help of a fan) through the wet EcoCool Pad. The water evaporates when it comes in contact with the warm/hot air, thus cooling as well as humidifying the air entering the area.... shop floor and industrial premises, Greenhouses, Poultry houses.

Ecofriendly and economic, EcoCool provides the ideal media to keep the temperature low in industrial, commercial, and residential areas, poultry farms, hatcheries, livestock areas, greenhouses, and other agricultural areas.

DRI is the world's leading independent desiccant rotor and cassette manufacturer. DRI now has an installed base of hundreds of thousands of desiccant rotors on all continents over the last 23 + years. We are a reliable and trusted partner globally with over 40 years of experience in environmental control solutions.

Our "Ecodry" desiccant rotors , are top-of-the-line in performance and are available in a variety of combinations of substrates and desiccants. We also offer desiccant rotors/wheels for replacement in existing systems. We have the ability to manufacture these rotors in any diameter and depth that also with very precise dimensions, which is a must for replacement jobs. The rotors are highly adsorbent, non-toxic, non-flammable, and fully water washable. The media is pH neutral, having in-situ synthesized metal silicate desiccant on an inert inorganic fiber substrate. The active desiccant material is at least 80% of the total media weight. The surface of the media is edge hardened to ensure a smooth surface, thereby increasing rotor as well as seal life. Our standard rotors have a perimeter flange to allow greater durability and to roll on the ground without damage. The rim of the desiccant rotors is in stainless steel as a standard, as a large part of the applications are in the food and pharmaceutical industry.

We have multiple desiccant rotor options. Our standard MH range is used for the majority of dehumidification applications. We have an LH / DHP1 range for very low dew point requirements, such as in the plastics industry and lithium cell/battery applications. We have another range for low-temperature regeneration. Also for commercial fresh air treatment applications, we have a patented product, a passive desiccant rotor regenerated based on room return air.

On the performance side, our desiccant rotors are better than any other media in the marketplace, especially when it comes to critical low dew point requirements.

Our desiccant rotors have unique advantages over everyone else-they are pH neutral. We do not use any acid during the media preparation or any burn-off process during manufacturing, hence the media is comparatively much stronger.

For commercial dehumidification applications, we supply unique G3MA "True Passive Dehumidification" wheels which allow substantial moisture removal through dehumidification of the fresh air being supplied to the room.
