Dogu Iklimlendirme Sanayi ve Ticaret A.S.

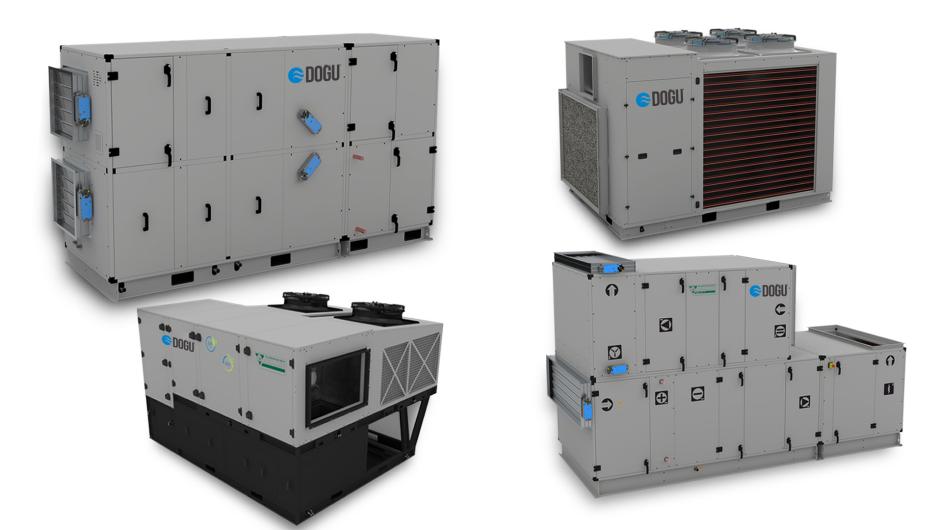

Air Handling Units and Rooftop Packaged Air Conditioners

Air Handling Units and Rooftop Packaged Air Conditioners

Dogu Iklimlendirme Sanayi ve Ticaret A.S.
Supplier profileAll products
Contact supplierContact persons

Description

FOUR DKS - Air Handling Unit

  • Flow rate range of 2.000 – 100.000 m3/h
  • Eurovent certified
  • DIN 1946/4 & VDI 6022 hygiene certified
  • Steel profile case with D1 - L1 – T2 - TB2
  • Thermal bridgeless aluminum profile case with D1 - L1 - T2 - TB2
  • Easy installation and commissioning
  • Plug&Play
  • Modbus, BACnet, LonWorks

FOUR ECRH - Rooftop Unit

  • Flow rate range of 4.400 – 35.200 m3/h
  • Compatible with ECODESIGN ErP 2021 Lot 21
  • Operation with 0-100% fresh air
  • High seasonal efficiency
  • Eco-friendly R32 refrigerant gas.
  • Independent dual circuit cooling
  • EC plug fan and EC axial fan
  • Double skin case (50 mm rock wool insulation)
  • Optional rotary type heat exchanger
  • Optional thermodynamic heat recovery
  • Optional water, electric or natural gas heater
  • Optional economizer
  • Optional return fan
  • Plug&Play
  • Modbus, BACnet, LonWorks

FOUR POOL - Package Pool Dehumidifier Unit

  • Flow rate range of 3.000– 25.000 m3/h
  • Hydrophilic coated plate heat exchanger
  • High efficiency AC plug fan
  • Double skin case (50 mm rock wool insulation)
  • Absolute humidity control
  • Mechanical cooling
  • Free cooling
  • Optional EC plug fans
  • Plug&Play
  • Modbus, BACnet, LonWorks

More from us

Our websiteOur product

Downloads

More products by Dogu Iklimlendirme Sanayi ve Ticaret A.S.

Heat/Energy Recovery Units(residential)

HOME - Residential Heat Recovery Unit

  • Flow rate range of 270 - 850 m3/h
  • Compliant with ERP 2018 directives
  • A+ energy class
  • Counterflow plastic heat recovery exchanger
  • EC plug fan
  • 19 mm rubber insulated case
  • Low sound level
  • Interchangeable service direction from right or left
  • Switchable duct connection from top or front
  • By-pass damper (%100)
  • Optional CO2 and humidity sensor
  • Optional wireless control
  • Optional ISO ePM1 filter
  • Optional duct type electric heater
  • Optional duct type DX/heating/cooling coil
  • Plug&Play
  • Modbus

FOUR HOME CEILING - Residential Heat Recovery Unit (Ceiling Type)

  • Flow rate range of 350 – 500 m3/h
  • Compliant with ERP 2018 directives
  • A+ energy Class
  • Counterflow plastic heat recovery exchanger
  • EC plug fan
  • 19 mm rubber insulated case
  • Low sound level
  • Interchangeable service direction from right or left
  • By-pass damper (%100)
  • Optional CO2 and humidity sensor
  • Optional wireless control
  • Optional ISO ePM1 filter
  • Optional duct type electric heater
  • Optional duct type DX/heating/cooling coil
  • Plug&Play
  • Modbus

HOME Residential Heat Recovery Unit Unit with EPP Casing(HOME EPP)

  • Flow rate range of 350 - 500 m3/h
  • Compliant with ERP 2018 directives
  • A+ energy class
  • Counterflow plastic heat recovery exchanger
  • EC plug fan

EPP (Expanded Polypropylene) Case

  • Low sound level
  • Interchangeable service direction from right or left
  • Interchangeable duct connection from top or front
  • By-pass damper (%100)
  • Built-in pre-heater
  • Optional CO2and humidity sensor
  • Optional IOT controllers
  • Optional ISO ePM1 filter
  • Optional duct type DX/heating/cooling coil
  • Plug&Play
  • Modbus


HOME HP-HW Heat Recovery Unit (Heat Pump)with Hot Water

  • AirFlow 350 m3/h
  • External Static Pressure 200 PA
  • Cooling Capacity(heat pump)* 1.58 kW
  • Heating Capacity (heat pump)* 2 kW
  • Refrigerant R290(PROPAN)
  • Electrical Connection 230V ~ 1/50 Hz
  • Sound Level 40 dB(A)

Kitchen Ventilation

FOUR KITCHEN - Ecology Unit

  • Flow rate range of 3.500 – 30.000 m3/h
  • Compact design
  • Optional stainless steel internal surface
  • Cyclone metal filter, greasestop filter, electrostatic filter, activated carbon filter
  • Optional V-UV lamp
  • Fan flow control according to filter pollution
  • Plug&Play
  • Modbus, BACnet, LonWorks

FOUR SMOKE Soot & Grease Abatement System

  • Flow rate range of 3.000 – 10.000 m3/h
  • Compact design
  • AISI 304 quality stainless steel manufacturing
  • Low water consumption
  • Low energy consumption
  • High efficiency filtration system
  • Plug&Play

HWW - Make-up Air Hood with Water Wash

  • AISI 304 quality stainless steel manufacturing
  • Up to 95% particle capture ability
  • Easy maintenance thanks to the washing system
  • 40% lower exhaust flow and operating cost
  • Fast and accurate product selection with the selection program
  • Modbus

Heat/Energy Recovery Units(non-residential ceiling and commercial)

RTER - Rotary Type Energy Recovery Unit

  • Flow rate range of 1.000– 20,000 m3/h
  • Compliant with ERP 2018 directives
  • Rotary energy recovery exchanger
  • EC plug fan
  • ISO ePM10 + ISO ePM1 filter for supply & exhaust
  • Switchable duct connection from top or front
  • Interchangeable service direction from right or left
  • Low sound level
  • Double skin case (50 mm rock wool insulation)
  • Optional duct type attenuator and damper
  • Optional duct type electric heater
  • Optional duct type DX/heating/cooling coil
  • Plug&Play
  • Modbus, BACnet, LonWorks

FHR - Counter Flow Heat Recovery Unit

  • Flow rate range of 1.000 – 17.000 m3/h
  • Flow rate range of 1.000 – 7.000 m3/h (Vertical Type)
  • Compliant with ERP 2018 directives
  • Counterflow aluminum heat recovery exchanger
  • EC plug fan
  • Low sound level
  • By-pass damper (%100)
  • ISO ePM10 + ISO ePM1 filter for supply & exhaust
  • Double skin case (50 mm rock wool insulation)
  • Optional duct type attenuator and damper
  • Optional duct type electric heater
  • Optional duct type DX/heating/cooling coil
  • Plug&Play
  • Modbus, BACnet, LonWorks

CFHR/CFHR-S - Counter Flow Heat Recovery Unit (Ceiling Type)

  • Flow rate range of 500 – 4.000 m3/h
  • Compliant with ERP 2018 directives
  • Counterflow aluminum heat recovery exchanger (CFHR)
  • Crossflow paper energy recovery exchanger (CFHR-S)
  • EC plug fan
  • Double skin case (30 mm rock wool insulation)
  • Low sound level
  • By-pass damper (%100)
  • Optional CO2 and humidity sensor
  • Optional ISO ePM1 filter
  • Optional duct type electric heater
  • Optional duct type DX/heating/cooling coil
  • Plug&Play
  • Modbus
All products
