ISH 2025 Contactor – Products, Exhibitors, Contacts

You can find the Interactive Hall Plan 2025 here.

Dogu Iklimlendirme Sanayi ve Ticaret A.S.

Air Distribution & Management Products(Fire&Smoke Dampers, VCD, VAV, CAV, Diffusers)

Air Distribution & Management Products(Fire&Smoke Dampers, VCD, VAV, CAV, Diffusers)

Dogu Iklimlendirme Sanayi ve Ticaret A.S.
Supplier profileAll products
Contact supplierContact persons

Description

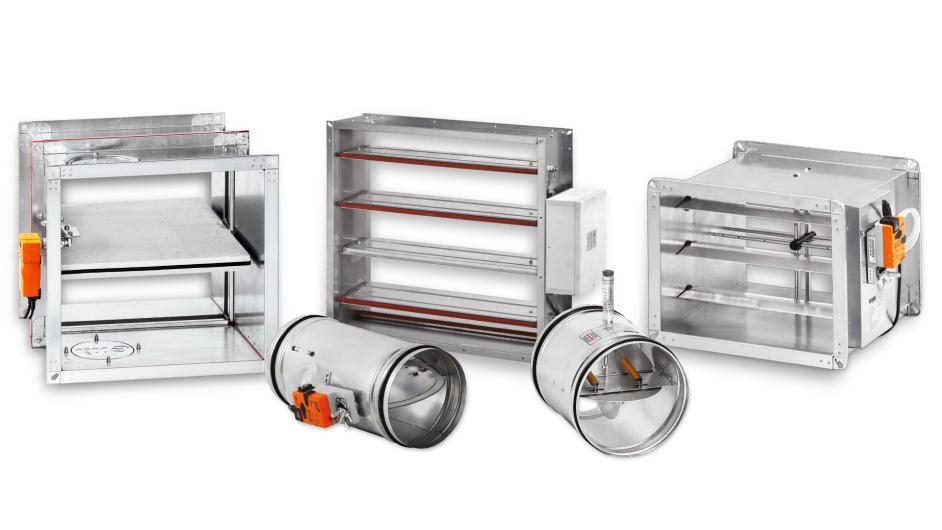

VGF - Fire and Smoke Damper

  • EI 120 (ve, ho i <-> o) S fire resistance according to EN 13501-3:2005+A1:2009 standard
  • CE certificate according to EN 15650:2010 standard
  • Easy installation
  • Single module production between 200x200 mm and 1300x800 mm dimensions

ACA / ACB / ACD - Variable / Constant Air Volume Units

  • Flow adjustment according to comfort needs
  • High precision calibration in the VAV-CAV laboratory
  • Compliance with VDI 6022, DIN 1946-4, VDI 3803, EN 16798_3 hygiene standards
  • Optional acoustic insulation

GLC / GLD - Laminar Flow Ceiling System

  • 100% leakproof guarantee
  • AISI 304 quality stainless steel manufacturing
  • 995% filter efficiency
  • Complies with ISO EN 14644, DIN 1946/4, DIN 24194, DIN 25414, ÖNORM H6020, SWKI VA 105_01, HTM 03_01 hygiene standards.

GFP - HEPA Filter Box

  • 100% leakproof guarantee
  • DKP sheet or AISI 304 quality stainless steel
  • sheet manufacturing
  • Inner surface resistant to disinfection processes.
  • HEPA filter with MDF or aluminum frame
  • Complies with VDI 6022, VDI 3803, EN 16798, ISO EN 14644, DIN 1946-4, DIN 24194, DIN 25414 hygiene standards.

More from us

Our websiteOur product

Downloads

More products by Dogu Iklimlendirme Sanayi ve Ticaret A.S.

Heat/Energy Recovery Units(residential)

HOME - Residential Heat Recovery Unit

  • Flow rate range of 270 - 850 m3/h
  • Compliant with ERP 2018 directives
  • A+ energy class
  • Counterflow plastic heat recovery exchanger
  • EC plug fan
  • 19 mm rubber insulated case
  • Low sound level
  • Interchangeable service direction from right or left
  • Switchable duct connection from top or front
  • By-pass damper (%100)
  • Optional CO2 and humidity sensor
  • Optional wireless control
  • Optional ISO ePM1 filter
  • Optional duct type electric heater
  • Optional duct type DX/heating/cooling coil
  • Plug&Play
  • Modbus

FOUR HOME CEILING - Residential Heat Recovery Unit (Ceiling Type)

  • Flow rate range of 350 – 500 m3/h
  • Compliant with ERP 2018 directives
  • A+ energy Class
  • Counterflow plastic heat recovery exchanger
  • EC plug fan
  • 19 mm rubber insulated case
  • Low sound level
  • Interchangeable service direction from right or left
  • By-pass damper (%100)
  • Optional CO2 and humidity sensor
  • Optional wireless control
  • Optional ISO ePM1 filter
  • Optional duct type electric heater
  • Optional duct type DX/heating/cooling coil
  • Plug&Play
  • Modbus

HOME Residential Heat Recovery Unit Unit with EPP Casing(HOME EPP)

  • Flow rate range of 350 - 500 m3/h
  • Compliant with ERP 2018 directives
  • A+ energy class
  • Counterflow plastic heat recovery exchanger
  • EC plug fan

EPP (Expanded Polypropylene) Case

  • Low sound level
  • Interchangeable service direction from right or left
  • Interchangeable duct connection from top or front
  • By-pass damper (%100)
  • Built-in pre-heater
  • Optional CO2and humidity sensor
  • Optional IOT controllers
  • Optional ISO ePM1 filter
  • Optional duct type DX/heating/cooling coil
  • Plug&Play
  • Modbus


HOME HP-HW Heat Recovery Unit (Heat Pump)with Hot Water

  • AirFlow 350 m3/h
  • External Static Pressure 200 PA
  • Cooling Capacity(heat pump)* 1.58 kW
  • Heating Capacity (heat pump)* 2 kW
  • Refrigerant R290(PROPAN)
  • Electrical Connection 230V ~ 1/50 Hz
  • Sound Level 40 dB(A)

Air Handling Units and Rooftop Packaged Air Conditioners

FOUR DKS - Air Handling Unit

  • Flow rate range of 2.000 – 100.000 m3/h
  • Eurovent certified
  • DIN 1946/4 & VDI 6022 hygiene certified
  • Steel profile case with D1 - L1 – T2 - TB2
  • Thermal bridgeless aluminum profile case with D1 - L1 - T2 - TB2
  • Easy installation and commissioning
  • Plug&Play
  • Modbus, BACnet, LonWorks

FOUR ECRH - Rooftop Unit

  • Flow rate range of 4.400 – 35.200 m3/h
  • Compatible with ECODESIGN ErP 2021 Lot 21
  • Operation with 0-100% fresh air
  • High seasonal efficiency
  • Eco-friendly R32 refrigerant gas.
  • Independent dual circuit cooling
  • EC plug fan and EC axial fan
  • Double skin case (50 mm rock wool insulation)
  • Optional rotary type heat exchanger
  • Optional thermodynamic heat recovery
  • Optional water, electric or natural gas heater
  • Optional economizer
  • Optional return fan
  • Plug&Play
  • Modbus, BACnet, LonWorks

FOUR POOL - Package Pool Dehumidifier Unit

  • Flow rate range of 3.000– 25.000 m3/h
  • Hydrophilic coated plate heat exchanger
  • High efficiency AC plug fan
  • Double skin case (50 mm rock wool insulation)
  • Absolute humidity control
  • Mechanical cooling
  • Free cooling
  • Optional EC plug fans
  • Plug&Play
  • Modbus, BACnet, LonWorks

Kitchen Ventilation

FOUR KITCHEN - Ecology Unit

  • Flow rate range of 3.500 – 30.000 m3/h
  • Compact design
  • Optional stainless steel internal surface
  • Cyclone metal filter, greasestop filter, electrostatic filter, activated carbon filter
  • Optional V-UV lamp
  • Fan flow control according to filter pollution
  • Plug&Play
  • Modbus, BACnet, LonWorks

FOUR SMOKE Soot & Grease Abatement System

  • Flow rate range of 3.000 – 10.000 m3/h
  • Compact design
  • AISI 304 quality stainless steel manufacturing
  • Low water consumption
  • Low energy consumption
  • High efficiency filtration system
  • Plug&Play

HWW - Make-up Air Hood with Water Wash

  • AISI 304 quality stainless steel manufacturing
  • Up to 95% particle capture ability
  • Easy maintenance thanks to the washing system
  • 40% lower exhaust flow and operating cost
  • Fast and accurate product selection with the selection program
  • Modbus
All products
