Duyar Vana Makina San. ve Tic. A.S.

Test & Drain Valve

Trade fair innovation

Test & Drain Valve

Duyar Vana Makina San. ve Tic. A.S.
Supplier profileAll products
Contact supplierContact persons

Description

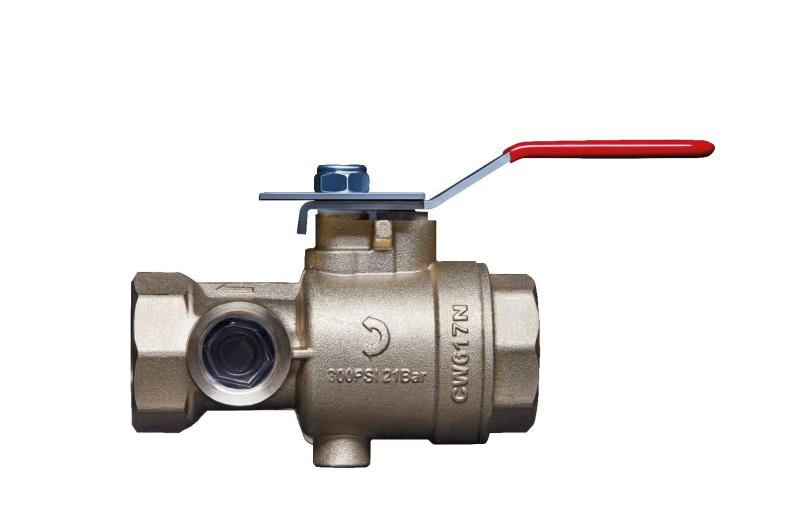

Test and drain valve is used to conduct testing and maintenance on sprinkler systems. Thanks to its orifice available in different sizes it creates a flow equivalent to the flow passing along one sprinkler only and enables tests of alarm devices on the lines for checking purposes in the case of a sprinkler water flow. The orifice diameters of the smallest sprinkler and the test drain valve in the system should be equal. It is also used as a drain valve to discharge water in the piping by changing the position of the valve. It includes a sight glass to observe the flow.


Specifications: Type : Y-4030, Y-4031, Y-4032, Y-4033 Dimensions : 1” - 2”/DN25 – DN50 ANominal Pressure : 300 psi (20,6 bar) Working Temperature : -10˚C/+120˚C Standards Certificate : UL*, FM* Design : FM 1625-2009, UL258-2004 Thread Design : ISO 228/1, NPT, NPS, BSP Tests : FM 1625-2009, UL258-2004

More from us

Our websiteOur product

More products by Duyar Vana Makina San. ve Tic. A.S.

Trade fair innovation

Wet Alarm Valve

The wet alarm valve is designed for applications where the water is unlikely to freeze. The water staying pressurized in the pipes is released over the fire area after the sprinkler is activated due to fire. The pressurized water system is not only feed contionuously, but also fills in the retard chamber. After the chamber is filled, the pressure switch on the chamber is actuated. The pressure switch sends the alarm information to the fire warning system or the automation system. After the pressure switch is actuated, the water is delivered to the water-motor gong and releases a mechanical alarm.




Specifications:

Model/Type : Y-4010 Dimensions : 2 ½” - 8”/DN65 - DN200 Nominal Pressure : 300 psi (20,6 bar) Working Temperature : +4˚CCertificate : FM Design : FM 1041, UL 262, TS EN 12259-2 Flange Connection Standard : EN -1092-2 (PN16) / ANSI Tests : FM 1041, UL 193, TS EN 12259-2

Trade fair innovation

Sprinkler

Duyar sprinkler is easy to use and extremely safe. Sprinkler is placed on the specially designed piping system such that iscovers the area requiring protection. One of the most significant components of the stuffing, the fluid in the glass tube expands and goes off due to the temperature generated by fire. Because the ambient temperature exceeds the maximum expected ambient temperature by 30°C during fire, the maximum ambient temperature of the sprinkler should be shosen tobe at temperatures above 30°C. Once the glass tube of the sprinkler above fire, the water under pressure hits the deflect and sprayed over fire. Only the sprinkler heating up during fire goes off, thereby releasing water.Duyar Valve Sprinkler Product List;

(For technical details, please check fire product catalogue)

Standart Sprey Sprinklers - Standart & Quick Response

  • Pendent
  • Upright
  • Sidewall

ECLH Standart and Quick Response

  • Pendent
  • Sidewall

Elo Sprinklers Standart and Quick Response

  • Pendent
  • Upright

Pendent Sprinklers

They are preferred in suspended ceilings or in locations where downward sprinklers are appropriate. Water sprays in a conically expansion. They can be used with escutcheons.

Pendent -Standart Response.

K Factor: K5.6(80), K8.0(115) Thread size: ½” NPT (15 mm), ¾” NPT (20 mm) /Response : Standard response Finished :Brass, Chrome, White Temperature: 57˚C(135˚F), 68˚C(155˚F), 79˚C(175˚F), 93˚C(200˚F), 141˚C(286˚F)

Pendent Sprinkler -Quick Response

K Factor: K5.6(80), K8.0(115) Thread size : ½” NPT (15 mm), ¾” NPT (20 mm) Response : Quick response Finished : Brass, Chrome, White Temperature : 57˚C(135˚F), 68˚C(155˚F), 79˚C(175˚F), 93˚C(200˚F), 141˚C(286˚F)

Upright Sprinkler

Mounted in locations without suspended ceilings with the deflector pointing upwards. The water hits the deflector and sprays downwards with a conical expansion. It can be used for wet, dry and pre-action systems.

Upright Sprinkler - Standard response

K Factor : K5.6(80), K8.0(115) Thread size : ½” NPT (15 mm), ¾” NPT (20 mm) Response : Standard response Finished : Brass, Chrome Temperature : 57˚C(135˚F), 68˚C(155˚F), 79˚C(175˚F), 93˚C(200˚F), 141˚C(286˚F)

Upright Sprinkler - Quick response

K Factor : K5.6(80), K8.0(115) Thread size : ½” NPT (15 mm), ¾” NPT (20 mm)

Response : Quick response

Finished : Brass, Chrome

Temperature : 57˚C(135˚F), 68˚C(155˚F), 79˚C(175˚F), 93˚C(200˚F), 141˚C(286˚F)

Side Wall Sprinkler They are preferred in suspended ceilings or in locations where downward sprinklers are appropriate. Water sprays in a conically expansion. They can be used with escutcheons.

Side Wall - Standart Respons

K Factor : K5.6(80), K8.0(115) Thread size : ½” NPT (15 mm), ¾” NPT (20 mm) Response : Standard response Finished : Brass, Chrome, White Temperature : 57˚C(135˚F), 68˚C(155˚F), 79˚C(175˚F), 93˚C(200˚F), 141˚C(286˚F)

Side Wall - Quick Respons

K Factor : K5.6(80), K8.0(115)

Thread size : ½” NPT (15 mm), ¾” NPT (20 mm)

Response : Standard response

Finished : Brass, Chrome, White

Temperature : 57˚C(135˚F), 68˚C(155˚F), 79˚C(175˚F), 93˚C(200˚F), 141˚C(286˚F)
