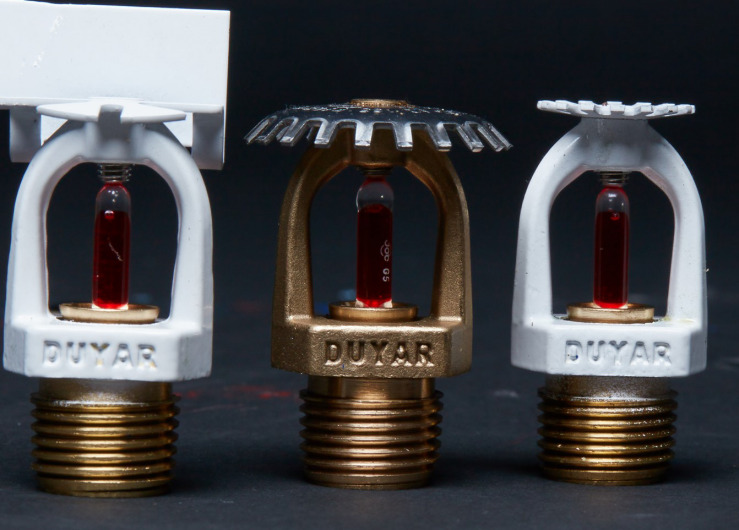

Duyar sprinkler is easy to use and extremely safe. Sprinkler is placed on the specially designed piping system such that iscovers the area requiring protection. One of the most significant components of the stuffing, the fluid in the glass tube expands and goes off due to the temperature generated by fire. Because the ambient temperature exceeds the maximum expected ambient temperature by 30°C during fire, the maximum ambient temperature of the sprinkler should be shosen tobe at temperatures above 30°C. Once the glass tube of the sprinkler above fire, the water under pressure hits the deflect and sprayed over fire. Only the sprinkler heating up during fire goes off, thereby releasing water.Duyar Valve Sprinkler Product List;

(For technical details, please check fire product catalogue)

Standart Sprey Sprinklers - Standart & Quick Response

• Pendent
• Upright
• Sidewall

ECLH Standart and Quick Response

• Pendent
• Sidewall

Elo Sprinklers Standart and Quick Response

• Pendent
• Upright

Pendent Sprinklers

They are preferred in suspended ceilings or in locations where downward sprinklers are appropriate. Water sprays in a conically expansion. They can be used with escutcheons.

Pendent  -Standart Response.

K Factor: K5.6(80), K8.0(115) Thread size: ½” NPT (15 mm), ¾” NPT (20 mm) /Response : Standard response Finished :Brass, Chrome, White Temperature: 57˚C(135˚F), 68˚C(155˚F), 79˚C(175˚F),    93˚C(200˚F), 141˚C(286˚F)

Pendent Sprinkler  -Quick Response

K Factor: K5.6(80), K8.0(115)  Thread size : ½” NPT (15 mm), ¾” NPT (20 mm) Response : Quick response Finished  : Brass, Chrome, White Temperature : 57˚C(135˚F), 68˚C(155˚F), 79˚C(175˚F),    93˚C(200˚F), 141˚C(286˚F)

Upright Sprinkler

Mounted in locations without suspended ceilings with the deflector pointing upwards. The water hits the deflector and sprays downwards with a conical expansion. It can be used for wet, dry and pre-action systems.

Upright Sprinkler - Standard response

K Factor : K5.6(80), K8.0(115) Thread size : ½” NPT (15 mm), ¾” NPT (20 mm) Response : Standard response Finished  : Brass, Chrome Temperature : 57˚C(135˚F), 68˚C(155˚F), 79˚C(175˚F),    93˚C(200˚F), 141˚C(286˚F)

Upright Sprinkler - Quick response

K Factor : K5.6(80), K8.0(115)  Thread size : ½” NPT (15 mm), ¾” NPT (20 mm)

Response : Quick response

Finished  : Brass, Chrome

Temperature : 57˚C(135˚F), 68˚C(155˚F), 79˚C(175˚F),    93˚C(200˚F), 141˚C(286˚F)

Side Wall Sprinkler   They are preferred in suspended ceilings or in locations where downward sprinklers are appropriate. Water sprays in a conically expansion. They can be used with escutcheons.

Side Wall - Standart Respons

K Factor : K5.6(80), K8.0(115) Thread size : ½” NPT (15 mm), ¾” NPT (20 mm) Response : Standard response Finished  : Brass, Chrome, White Temperature : 57˚C(135˚F), 68˚C(155˚F), 79˚C(175˚F),    93˚C(200˚F), 141˚C(286˚F)

Side Wall -  Quick Respons

K Factor : K5.6(80), K8.0(115)

Thread size : ½” NPT (15 mm), ¾” NPT (20 mm)

Response : Standard response

Finished  : Brass, Chrome, White

Temperature : 57˚C(135˚F), 68˚C(155˚F), 79˚C(175˚F),    93˚C(200˚F), 141˚C(286˚F)
