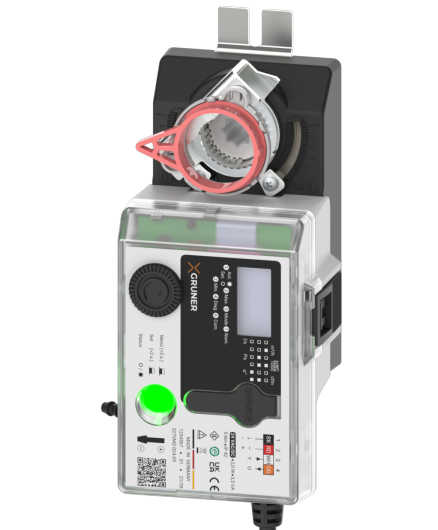

Gruner AG
327 VM
Description
- Volume airflow- /pressure control
- 5 / 10 / 15 Nm
- Universal clamp or form fitting with and without flange fixing
- Running time 5 Nm @ 20 - 120 s / 90° | 10 / 15 Nm @ 60 - 420 s / 90°
- IP42
- Gear de-clutch with pushbutton, lockable
- LED test button for status indication and menu navigation
- Display for parameterization
- Service connection for powerless parameterization in combination with Win-VAV2 software
- Dynamic or static differential pressure sensor up to 1000 Pa
- 5 years warranty 100‘000 cycles (0°-90°-0°) 1‘500‘000 partial cycles (±5°)
- Small size
- Optional communication Modbus RTU / BACnet MSTP
- Connection cables (4-wires, 6-wires), screw terminal, various plugs
- Open loop, external VAV control
