Item code : K011DGY
Touchless sensor type Concealed water tank ,Suit for wall hung toilet installation
Power supply mode: DC 6V (4pcs 1.5V alkaline batteries)
Battery life is around 9 months,about 30,000 times of use. It is easy to replace the batteries, take off the panel and take out the battery box to replace the batteries .
We have Hand wave type sensor concealed cistern & Traditional human body sensor concealed cistern .
Hand wave sensor concealed cistern: The sensing distance is 2CM-8CM ,Water will automatically flushing out once you wave hand before the flush plate with distance 2-8CM.
Traditional human body sensor concealed cistern:The sensing distance is70CM with straight-line distance. sensing less than 6 seconds, no action. Sensing more than 6 seconds,it will do once full flushing. You no need to do any action ,the water will automatically flushing itself .
1.High class full metal frame
2.HDPE plastic tank body
3.size : 525x1060x105mm
4. tank body with foam
5. 105mm thickness tank body
6.flush volume is 3L & 6L,Can be adjustable
7.flush plate size is 250*165mm,Multiple designs & Multiple material & Multiple colors for choices
8.with copper angle valve
9.with 90mm flush bend pipe

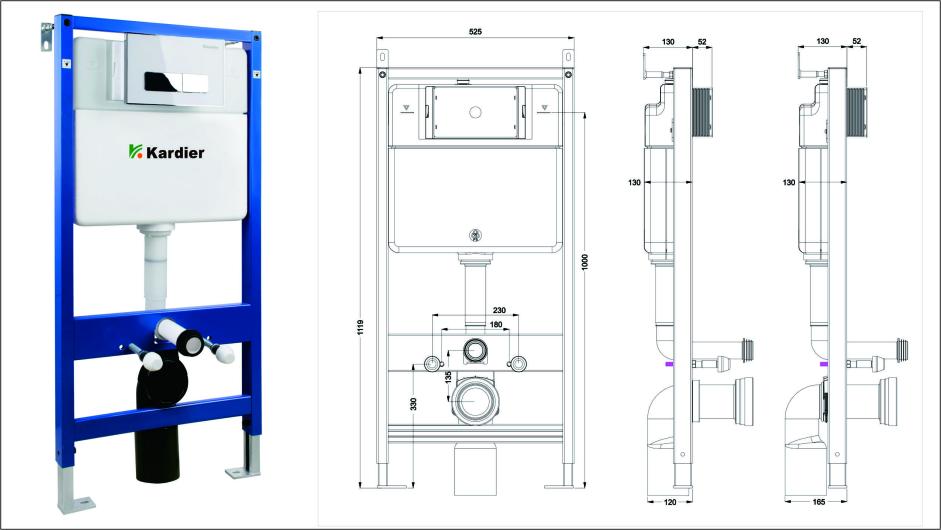

10.Our Pipe bracket can 180° turn around to suit for different flush pipe installation type ,flush pipe straight installation overall thickness is 100mm(require 120 wall thickness); Horizontal installation overall thickness is 145mm(require 160mm wall thickness) as per size picture
