Item code : K011DGY

Touchless sensor type Concealed water tank ,Suit for wall hung toilet installation

Power supply mode: DC 6V (4pcs 1.5V alkaline batteries)

Battery life is around 9 months,about 30,000 times of use. It is easy to replace the batteries, take off the panel and take out the battery box to replace the batteries .

We have Hand wave type sensor concealed cistern & Traditional human body sensor concealed cistern .

Hand wave sensor concealed cistern: The sensing distance is 2CM-8CM ,Water will automatically flushing out once you wave hand before the flush plate with distance 2-8CM.

Traditional human body sensor concealed cistern:The sensing distance is70CM with straight-line distance. sensing less than 6 seconds, no action. Sensing more than 6 seconds,it will do once full flushing. You no need to do any action ,the water will automatically flushing itself .

1.High class full metal frame

2.HDPE plastic tank body

3.size : 525x1060x105mm

4. tank body with foam

5. 105mm thickness tank body

6.flush volume is 3L & 6L,Can be adjustable

7.flush plate size is 250*165mm,Multiple designs & Multiple material & Multiple colors for choices

8.with copper angle valve

9.with 90mm flush bend pipe

10.Our Pipe bracket can 180° turn around to suit for different flush pipe installation type ,flush pipe straight installation overall thickness is 100mm(require 120 wall thickness); Horizontal installation overall thickness is 145mm(require 160mm wall thickness) as per size picture

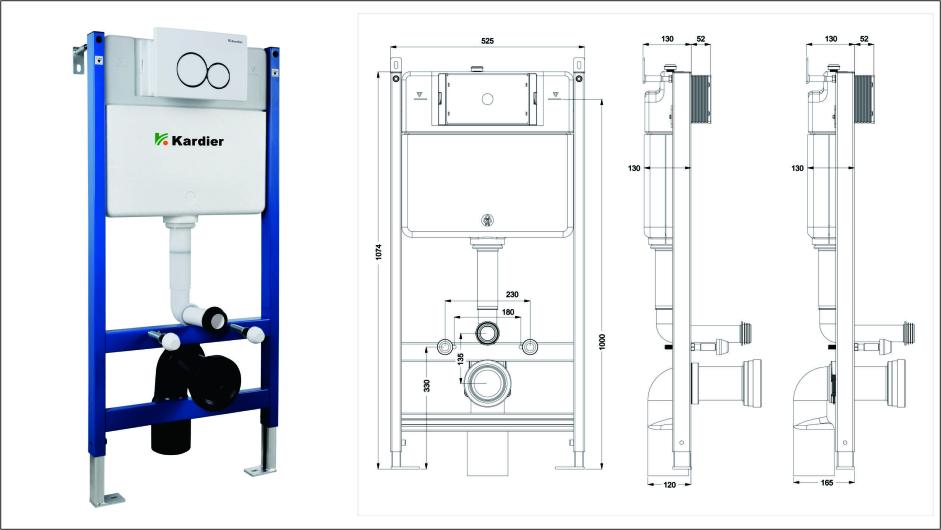

Item code : K009D

Concealed cistern ,Suit for wall hung toilet installation

1.High class full metal frame

2.HDPE plastic tank body

3.size :525x1060x130mm

4. tank body with foam

5. 130mm thickness tank body

6.flush volume is 3L & 6L,Can be adjustable

7.flush plate size is 250*165mm,Multiple designs & Multiple material & Multiple colors for choices

8.with copper angle valve

9.with 110mm flush bend pipe

10.Our Pipe bracket can 180° turn around to suit for different flush pipe installation type ,flush pipe straight installation overall thickness is 120mm(require 145 wall thickness); Horizontal installation overall thickness is 165mm(require 180mm wall thickness) as per size picture

Item code : K011V

Concealed cistern ,Suit for wall hung toilet installation

1.Standard half metal frame

2.HDPE plastic tank body

3.size : 470x770x100mm

4. tank body with foam

5. 100mm thickness tank body

6.flush volume is 3L & 6L,Can be adjustable

7.flush plate size is 250*165mm,Multiple designs & Multiple material & Multiple colors for choices

8.with copper angle valve

9.with 90mm flush bend pipe

10.Our Pipe bracket can 180° turn around to suit for different flush pipe installation type ,flush pipe straight installation /Horizontal installation : both need ≥115mm wall thickness

Item code : 023D

Concealed cistern ,Suit for wall hung toilet installation

1.High class full metal frame

2.HDPE plastic tank body

3.size :489x1140x90mm

4. tank body with foam

5. 90mm thickness tank body

6.flush volume is 3L & 6L,Can be adjustable

7.flush plate size is 250*165mm,Multiple designs & Multiple material & Multiple colors for choices

8.with copper angle valve

9.with 90mm flush bend pipe

10.Our Pipe bracket can 180° turn around to suit for different flush pipe installation type ,flush pipe straight installation overall thickness is 100mm(require 110 wall thickness); Horizontal installation overall thickness is 145mm(require 160mm wall thickness) as per size picture.

Item code : K011DGY

Touchless sensor type Concealed water tank ,Suit for wall hung toilet installation

Power supply mode: DC 6V (4pcs 1.5V alkaline batteries)

Battery life is around 9 months,about 30,000 times of use. It is easy to replace the batteries, take off the panel and take out the battery box to replace the batteries .

We have Hand wave type sensor concealed cistern & Traditional human body sensor concealed cistern .

Hand wave sensor concealed cistern: The sensing distance is 2CM-8CM ,Water will automatically flushing out once you wave hand before the flush plate with distance 2-8CM.

Traditional human body sensor concealed cistern:The sensing distance is70CM with straight-line distance. sensing less than 6 seconds, no action. Sensing more than 6 seconds,it will do once full flushing. You no need to do any action ,the water will automatically flushing itself .

1.High class full metal frame

2.HDPE plastic tank body

3.size : 525x1060x105mm

4. tank body with foam

5. 105mm thickness tank body

6.flush volume is 3L & 6L,Can be adjustable

7.flush plate size is 250*165mm,Multiple designs & Multiple material & Multiple colors for choices

8.with copper angle valve

9.with 90mm flush bend pipe

10.Our Pipe bracket can 180° turn around to suit for different flush pipe installation type ,flush pipe straight installation overall thickness is 100mm(require 120 wall thickness); Horizontal installation overall thickness is 145mm(require 160mm wall thickness) as per size picture

Item code : K009D

Concealed cistern ,Suit for wall hung toilet installation

1.High class full metal frame

2.HDPE plastic tank body

3.size :525x1060x130mm

4. tank body with foam

5. 130mm thickness tank body

6.flush volume is 3L & 6L,Can be adjustable

7.flush plate size is 250*165mm,Multiple designs & Multiple material & Multiple colors for choices

8.with copper angle valve

9.with 110mm flush bend pipe

10.Our Pipe bracket can 180° turn around to suit for different flush pipe installation type ,flush pipe straight installation overall thickness is 120mm(require 145 wall thickness); Horizontal installation overall thickness is 165mm(require 180mm wall thickness) as per size picture

Item code : K011V

Concealed cistern ,Suit for wall hung toilet installation

1.Standard half metal frame

2.HDPE plastic tank body

3.size : 470x770x100mm

4. tank body with foam

5. 100mm thickness tank body

6.flush volume is 3L & 6L,Can be adjustable

7.flush plate size is 250*165mm,Multiple designs & Multiple material & Multiple colors for choices

8.with copper angle valve

9.with 90mm flush bend pipe

10.Our Pipe bracket can 180° turn around to suit for different flush pipe installation type ,flush pipe straight installation /Horizontal installation : both need ≥115mm wall thickness
