Flue gas pipes made from plastic

For more than 30 years, Skoberne has been a leading manufacturer of plastic flue gas pipes and we are recognised for our exhaust gas systems for condensing boilers.

An overview of the benefits of plastic flue gas pipe products

• Durability
• Resistance to acidic condensates
• Insensitive to the effects of thermal cycling of condensing
• Easy repairs thank to simple push fit functionality

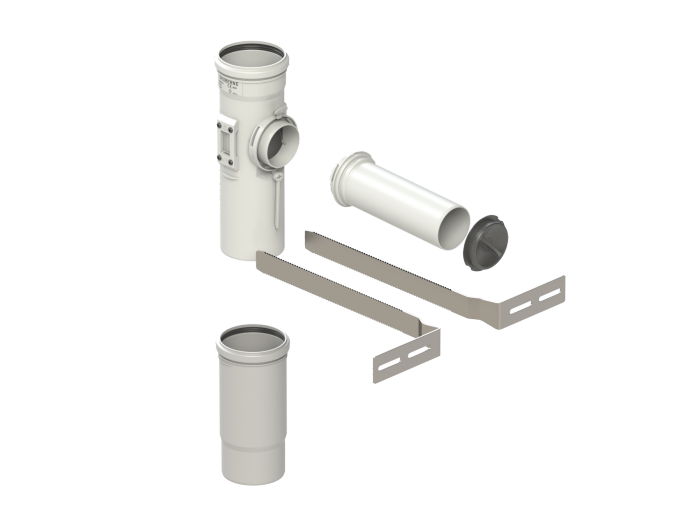

We have the right plastic flue pipe for every nationally and internationally recognised operating method:

• Single-wall - rigid
• Single-wall - flexible
• Concentric pipe (flue gas exhaust and air supply system)

These can be easily combined with each other and/or expanded, depending on the situation and requirement. As a result, unusual construction situations can also be overcome.

Product characteristics and applications of Skoberne’s plastic flue gas pipes

• Fuel: Oil or gas
• Operating mode: single wall and concentric (open vent or room sealed)
• Flue gas temperatures: up to 120°C
• Operating pressure: Positive and negative pressure
• Pressure class: P1 and H1
• Fire protection: "Flame retardant" (formerly DIN 4102 B1)
• UV resistance: stabilised
• Nominal diameters:
  - Single wall rigid: range from 60mm to 315mm
  - Flexible pipe: 60mm, 80mm, 110mm
  - Concentric 60/100, 80/125, 110/150, 110/160
• TÜV-certified quality product made in Germany

SKOBIFIX

SKOBIFIX® is single flue ductwork system incorporating the flue gas pipe.

SKOBIFIX 30

SKOBIFIX® is a "condensing chimney" made from our special SKOBIFIX® geopolymer foam.

This one-meter long ductwork block incorporates a tongue-and-groove system which guarantees simple, quick installation.

Each system unit comprises a central plastic flue gas pipe supported in the cast duct within a fire proof, lightweight ceramic block, which has been specially developed for heating systems and for HVAC installers. This system is in stock at well-known HVAC wholesalers across Germany.

Verified and approved for construction by the German Centre of Competence for Construction (Deutsches Institut für Bautechnik (DiBt))

SKOBIFIX® 30 is single flue ductwork system incorporating the flue gas pipe. The block material is a geopolymer foam which is patent-protected and trade mark registered.
 
SKOBIFIX® at a glance

Product: SKOBIFIXXs® 30 block incl. D80 PPs flue gas pipe

internal void cross-section [mm]: 100 x 140 with PPs D80 pipe

Overall  L x W x H [mm]: 150 x 200 x 1000

Weight [kg]: 10

Fire rating [min]: 30

Approval: DIBt Z-7.2-3210

Product: SKOBIFIXnano® 30 block incl. D60 PPs flue gas pipe

internal void cross-section [mm]: 80 x 100 with PPs D60 pipe

Overall  L x W x H [mm]: 130 x 160 x 1000

Weight [kg]: 8

Fire rating [min]: 30

Approval: DIBt Z-7.2-3210

Subject to technical modifications.

SKOBIFIXnano 30®

SKOBIFIXnano® 30 is Skoberne’s latest and smallest “condensing chimney system”, with exterior dimensions of only 130 x 160 mm. Thanks to its small cross-section, SKOBIFIXnano® fits easily into any wall or false wall.

• Flue gas pipe with 30-minute fire rating
• Gas exhausted by means of a flame-retardant PPs D60 pipe (pressure-tight and acid-resistant)
• Fire protection thanks to geopolymer foam ductwork mantle
• Combustion air intake via annular gap between flue gas pipe and geopolymer foam block’s cast in duct
• Easy installation thanks to tongue-and-groove system

It combines the tried-and-tested SKOBERNE plastic flue pipe with an external concentric pipe made from stainless steel. With its attractive all-over steel finish extending fully to the terminal and its compact design and construction, this will surely meet the design requirements of even the most fastidious of architects and building owners.

The introduction of new design components and the silky smooth steel surfaces, creates an overall system which of course still exhibits all of the quality characteristics you have come to expect of us. Those of you familiar with our products will not be surprised to learn that it is easily and quickly installed as both, inner and outer concentric joints are made simultaneously.
As yet, we only offer the standard size 80/125, but later this year, we will also make available sizes 60/100 and 110/160.

Advantages and characteristics in brief:

• Components are variable, compatible and adaptable; ideal for roof penetration
• Variable positioning of air intake
• Air column above intake remains static
• Total steel exterior – including the outlet
• Integral allowance for expansion/contraction of PP pipe within each linear concentric component
• Easy to install and dismantle
• Internal and external connections can be made simultaneously
• Sleek design of the air intake sleeve
• Outer concentric pipe has built-in seal
• Compact design of all components
• Flue section easily shortened

Stainless Steel-Stainless Steel Exterior Wall System:

Meets the requirements of corrosion resistance class 3 and is therefore ideally suited for solid fuels.

The DecoMute - by Skoberne & Cox Geelen

Sound-insulating cover for heat pumps - by Skoberne & Cox Geelen

With the growing trend towards renewable energy, air source heat pumps are becoming increasingly popular. With their increased use, the efficient handling of noise and sound development is becoming the focus of public attention. To counteract this problem, Skoberne and Cox Geelen have developed a cladding for outdoor heat pump units that has a sound-insulating effect and reduces noise by at least 5 dB.

In addition, the original and flexible design of the DecoMute means that the outdoor heat pump units are not only aesthetically pleasing and meet the homeowner's individual design requirements, but also improve the overall cityscape.

ADVANTAGES

• Reduces noise by at least 5 dB
• Protects the air source heat pump from weather influences such as rain, wind, hail, snow and UV radiation
• Gives the air source heat pump an aesthetic and stylish appearance
• Protects the air source heat pump from vandalism
• Easy to install and can also be retrofitted

The DecoMute is available in two sizes:

DecoMute S80

• External dimensions: L x W x H 1149 x 963 x 1160 mm
• Internal dimensions (incl. adjustable base):
• Min.: L x W x H 1080 x 420 x 700 mm
• Max.: L x W x H 1080 x 420 x 850 mm

DecoMute M80

• External dimensions: L x W x H 1430 x 963 x 1160 mm
• Internal dimensions (incl. base):
• Min.: L x W x H 1350 x 420 x 800 mm
• Max.: L x W x H 1350 x 420 x 800 mm
