The ceramic heating element, due to its construction is used for heating air and liquids (indirectly).

In the basic version, the heater is made of ceramic forms through which the heating coil is routed. The current output is the ceramic head to which the Power cords are connected.

The entire structure is stiffened with a rod running along the axis of the heater.

Applied ceramics and NiCr wires have very good electrical and mechanical parameters which ensures long life.

Application:

• Boilers, Storage Tanks
• Water Heaters
• Industrial washers

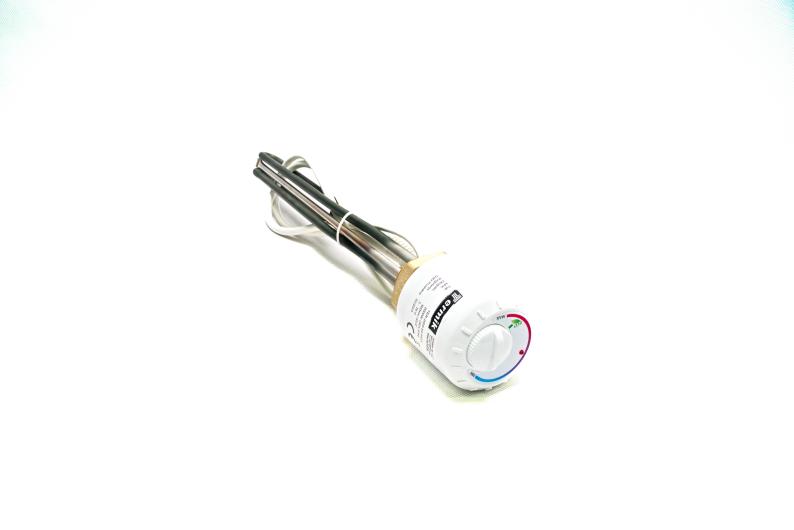

Immersion Heater with integrated isolation for direct water heating, especially used in enamelled tanks. It consist of three "U"-shaped tubular heaters and a sensor protection tube mounted in a screw head G6/4". The heater is with plastic housing, in which a temperature control (30-75*C) with a limiter (98*C) and indicator lamp is provided. The isolated construction of the tubular heater protects enamelled tank against corrosion.

• Power 2,5-12kW
• Voltage 230V, 400V
• Plug Size G6/4"
• Material Incoloy825
• Thermostat 30-75*C, 30-85*C, other
• Protectitive Cap IP44
