Wefatherm GmbH

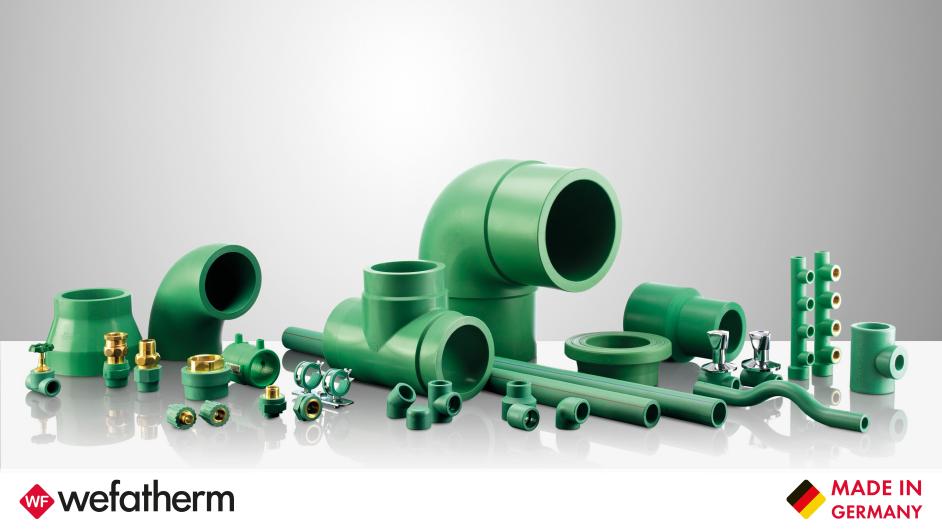

PP-R & PP-RCT

Description

For decades, polypropylene random copolymer (PP-R) has been applied worldwide successfully for hot and cold water applications. Material properties such as resistance to internal pressure, flexibility and impact have made PP-R the material of choice for a safe and reliable long-lasting installations like hot and cold water distribution, underfloor heating, radiator connections or wall cooling and heating systems.

Benefits of PP-R

  • 50 years lifetime according to tests performed under ISO 15874
  • No limitations to the pH value of water
  • No contact corrosion when exposed to iron particles
  • Taste and odour neutral
  • Bacteriologically neutral
  • Fast and easy installation
  • Entire plastic systems available
  • Good chemical resistance
  • Low tendency to incrustations

PP-RCT is the next generation of PP-R raw material. PP-RCT is an abbreviation for Polypropylene Random Copolymer with modified crystalline structure and enhanced temperature performance. The special fine and homogeneous crystal structure of the PP-RCT material improves the mechanical characteristics of the material.

Benefits of PP-RCT

  • Improved stress resistance at elevated temperatures. PP-RCT pipe systems can be operated at higher operating pressures
  • The improved long-term strength of the PP-RCT material leads to a more economic set of dimensions of the pipe system. Where possible, it enables designers to select thinner wall pipes with an increased flow capacity or smaller diameter pipes. Lighter pipe systems are easier and quicker to install
  • The substantially lower material usage provides an additional contribution to the conservation of resources supporting a sustainable environment

More products by Wefatherm GmbH

Valves and Accessories

Wefatherm offers a wide variety of high-quality accessories to complete its PP-R/PP-RCT product range.

  • Different kinds of valves to control flow
  • Profile backing rings, flange sleeves, stub ends
  • Pipe clamps, pressure test plugs

Wefatherm Double Union Ball Valve – DUAL BLOCK®

This new ball valve, available in dim. 20 – 63 mm, is a 2-way True Union ball valve with locked carrier, lockable union nuts and female ends for socket welding.

Wefatherm Double union ball valve – DUAL BLOCK® offers a variety of advanced features such as the patented SEAT STOP® carrier, a high-quality stem and ball support system, and a multifunctional locking handle. The patented DUAL BLOCK® system locks the union nuts in a preset position, preventing back-off due to vibration or thermal cycling. Deep grooves, thick O-rings, and cushioned Teflon seats contribute to strong seals.

Product features

  • Top quality industrial PP-RCT ball valve with double unions and fusion end sockets
  • Body, unions, end sockets made of PP-RCT, ball and stem made of PP-H
  • Patented SEAT STOP® ball seat carrier system to micro-adjust ball seats and minimize axial force effects
  • Patented DUAL BLOCK® system allowing locking of the union nuts in a preset position, assuring seal integrity
  • Easy radial disassembly allowing quick replacement of O-rings and ball seats without any need for tools
  • Option of disassembling downstream pipes with the valve in closed position
  • Floating full-bore ball with high quality surface finish
  • Ball seat carriers can be adjusted using the handle insert
  • Complying with EN ISO 16135, suitable for 20°C/10 bar
