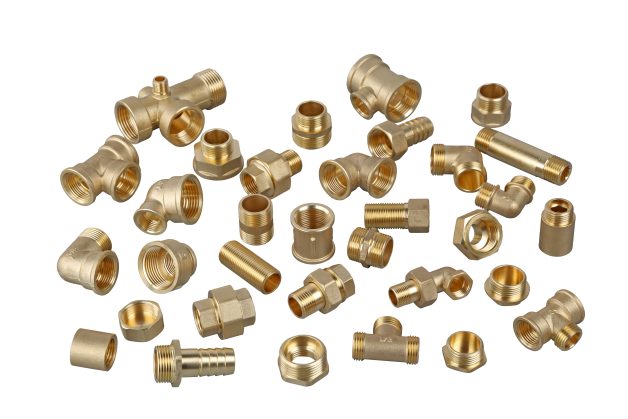

HS190 Brass threaded fitting

HONSON HS220 Brass Press Fittings for Multilayer pipe are well-designed and ideal for use in hot and cold water distribution systems (sanitary and heating systems).

U, TH and Univeral type are available.

The press fitting has the special characteristic of being immovable. This fitting, when compressed correctly, undergoes a permanent deformation that guarantees long-term sealing. For this reason, the press fittings are the only type of coupling that can be used and guaranteed in embedded systems.

The safe and stable connecting lies on the permanent compression plastic deformation of the stainless steel sleeve. The lock ring insulates the aluminium pipe from the brass pipe, thus avoiding corrosion effects.

The fittings are available in sizes from Ø16 to Ø 32. Easily installed and disassembled.

HONSON HS130 Brass Compression Fittings female threading for PE pipes are specifically designed according to DIN8076-1 for use on water distribution.

Features:
1. Ideal for use in plumbing system and heating installations
2. DVGW approved
3. Compliant with DIN8076-1 standard
4. Adaptable for polyethylene pipes (PE) joint of low, medium and high density
5. Body and nut made in hot forging brass according to UNE-EN12165.
6. Full range from 20mm to 63mm
7. Working temperature since -10°C to + 80°C Max Pressure PN: 16 bar (PN-16)
8. Marked for full traceability

Varieties brass parts suitable for garden. Including push-fit connector, hose connector and quick connectors.

HONSON HS100 brass compression fittings are specifically designed for use on hot and cold water services and heating installations. They are ideally compatible with copper, low carbon steel, stainless steel and a range of plastic pipe by means of compressing a brass ring onto the tube without the application of beat.

HONSON HS100 compression fittings as specified in EN1254-2.

Features

• Suitable for gas, compressed air and water application
• Wide range of fittings from 8mm to 54mm
• WRAS Approved, compliant with the relevant British standards EN1254-2
• SABS Approved, compliant with SANS 1067-1:2005
• DVGW Approved
• Marked for full traceability
• High quality copper material options, CW617N-DW, DZR
• Surface treatment options: raw, chrome-plated, nickel-plated
• Fast and easy installation
• Eliminate the harsh noise during installation

HONSON HS220 Brass Press Fittings for Multilayer pipe are well-designed and ideal for use in hot and cold water distribution systems (sanitary and heating systems).

U, TH and Univeral type are available.

The press fitting has the special characteristic of being immovable. This fitting, when compressed correctly, undergoes a permanent deformation that guarantees long-term sealing. For this reason, the press fittings are the only type of coupling that can be used and guaranteed in embedded systems.

The safe and stable connecting lies on the permanent compression plastic deformation of the stainless steel sleeve. The lock ring insulates the aluminium pipe from the brass pipe, thus avoiding corrosion effects.

The fittings are available in sizes from Ø16 to Ø 32. Easily installed and disassembled.

HONSON HS130 Brass Compression Fittings female threading for PE pipes are specifically designed according to DIN8076-1 for use on water distribution.

Features:
1. Ideal for use in plumbing system and heating installations
2. DVGW approved
3. Compliant with DIN8076-1 standard
4. Adaptable for polyethylene pipes (PE) joint of low, medium and high density
5. Body and nut made in hot forging brass according to UNE-EN12165.
6. Full range from 20mm to 63mm
7. Working temperature since -10°C to + 80°C Max Pressure PN: 16 bar (PN-16)
8. Marked for full traceability

Varieties brass parts suitable for garden. Including push-fit connector, hose connector and quick connectors.
