Vital components for business mechanisation, electric actuators allow automation of valve opening and closing. As a result, managing fluids such as gas, water, compressed air and oils becomes much more straightforward, especially where particularly critical situations arise.

For example, when there is a need to ensure a high cycle frequency or the safety of applications, or to deliver high productivity or accuracy and automation in the process, as well as for activating valves located in remote or hard to access locations, electric actuators are essential.

This is why a growing number of companies choose to include them in their systems. Indeed, electric actuators can improve productivity in a wide range of sectors, as well as delivering residential and smart home automation.They have proven useful in the automotive sector and many other industries.

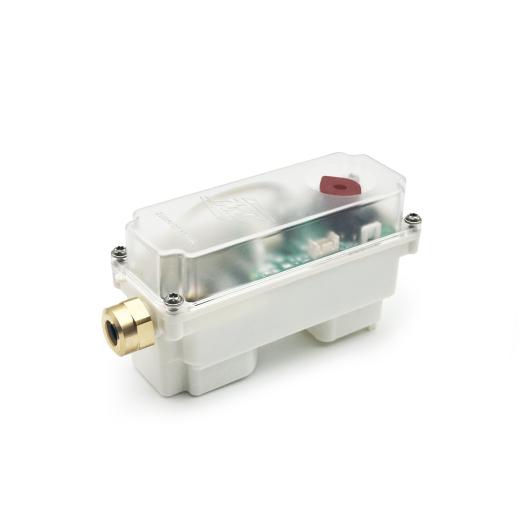

At BONOMI INDUSTRIES we have been producing high performance actuators for around a decade. We design, develop and manufacture the CP (Compact Power) actuators internally. These devices can achieve up to 100,000 opening and closing cycles at an ambient temperature of up to 80°C. They are available with motors ranging from 12 to 230 V AC, from 6 to 24 V DC and brushless motors, with 2P or 3P control.

Using this type of actuator offers a number of advantages:

• Small and lightweight
• Clever shape, allowing multiple actuators to be installed in series on different lines, even with restricted space
• Easy connection and direct mounting on ISO-5211 ball valves
• Robust gearbox with an IP65 (NEMA 4x) casing for long-lasting durability
• Visual position indicator and position feedback signal

The actuators can also be combined with RuB ball valves, designed to provide low operating torque. These devices can also achieve up to 100,000 cycles without requiring maintenance and with no risk of breaking or failing. In detail, we can supply:

• S.31: mini, 2 ways, quick connect mounting kit included, from 1/4” up to 3/4”.
• S.64 low torque: full port, interface with ISO 5211 valve, from 1” up to 1 ¼’’.
• S.64 & k.64: full port, interface with ISO 5211, from 1/2” up to 1”.
• S.65: full port, interface with ISO 5211, from 1/2" up to 1 ¼’’.
• S.76: 3 way 2 seats with L-port, from 1/2" up to 1”.
