EMKA Beschlagteile GmbH & Co. KG

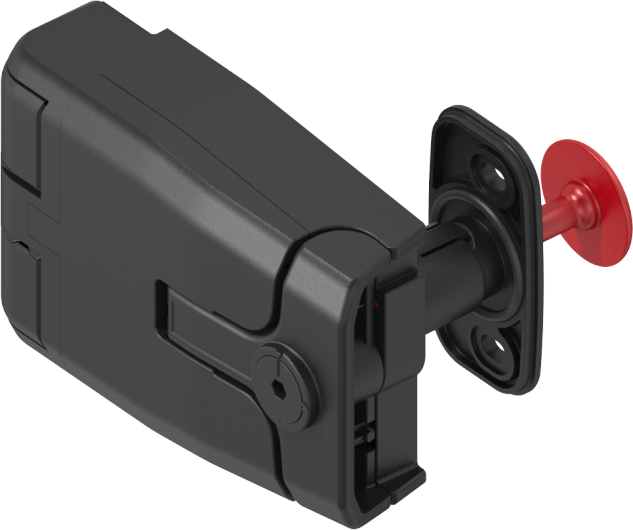

Compression Latch-Hinge with emergency opening

Compression Latch-Hinge with emergency opening

EMKA Beschlagteile GmbH & Co. KG

Supplier profile All products

Contact supplier

Description

Especially suitable for use on large doors (>1.6 m door height)
When the door is closed, the latch is adjustable (3 mm) to achieve perfect alignment
The favorable pivot point of the handle allows for low actuation forces a seal compression of 5 mm
Door or panel can be removed by unlatching the handles on both sides
3D Adjustable (tolerance compensation)
Latch-Hinge can be mounted as one piece with the door in place
Right or left hinged
Hinge 180° opening angle
Available with or without pressure relief
Patent submitted
VDI 6022 / ISO 846 compliant materials
ATEX compliant explosion protection version available on request
