EMKA Beschlagteile GmbH & Co. KG

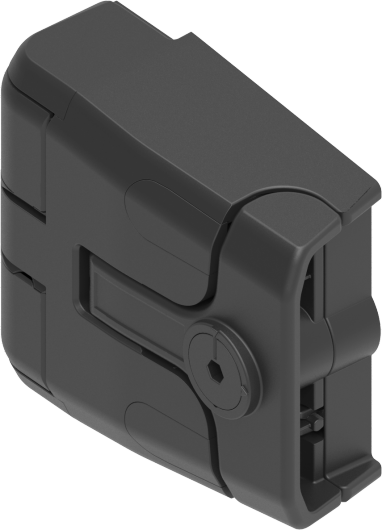

Compression Latch-Hinge large

Compression Latch-Hinge large

EMKA Beschlagteile GmbH & Co. KG

Supplier profile All products

Contact supplier

Description

For door surfaces > 0.8 m²
The favorable pivot point of the handle allows for low actuation forces a seal compression of 5 mm
When the door is closed, the latch is adjustable (3 mm) to achieve perfect alignment
Door or panel can be removed by unlatching the handles on both sides
Hinge 180° opening angle
3D Adjustable (tolerance compensation)
Available with or without pressure relief
ATEX compliant explosion protection version available on request
Patent submitted
