EMKA Beschlagteile GmbH & Co. KG

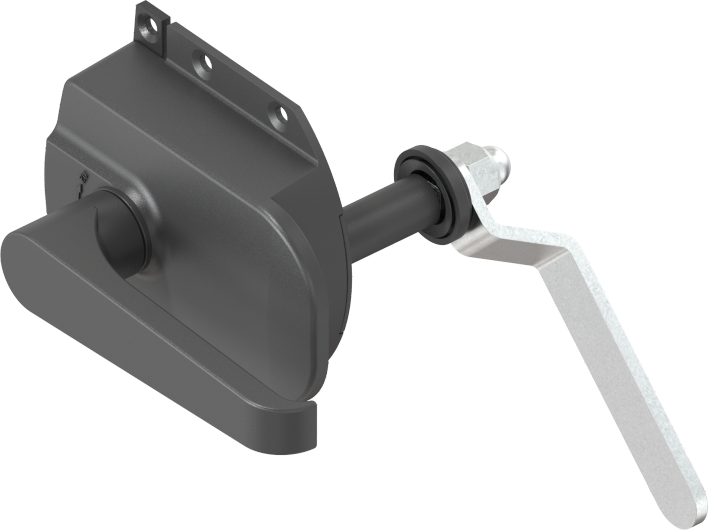

Surface mounted modular door lock with internal handle

Surface mounted modular door lock with internal handle

EMKA Beschlagteile GmbH & Co. KG

Supplier profile All products

Contact supplier

Description

New modular locking system especially for use on large doors (>1.6 m door height)
Various inserts and handle options in combination with different cams possible (stepped cam, pressure relief cam, etc.)
System for various door thicknesses (30 mm - 60 mm)
Also available as a version without inside handle
VDI 6022 / ISO 846 compliant materials

More from us

Our website

More products by EMKA Beschlagteile GmbH & Co. KG

Trade fair innovation

Compression Latch-Hinge small

For door surfaces < 0.8 m²
40 % reduced size → significant price advantage
The favorable pivot point of the handle allows for low actuation forces a seal compression of 5 mm
Door or panel can be removed by unlatching the handles on both sides
Hinge 180° opening angle
2D Adjustable (tolerance compensation)
Available with or without pressure relief
ATEX compliant explosion protection version available on request
Patent submitted

Trade fair innovation

Compression Latch-Hinge with emergency opening

Especially suitable for use on large doors (>1.6 m door height)
When the door is closed, the latch is adjustable (3 mm) to achieve perfect alignment
The favorable pivot point of the handle allows for low actuation forces a seal compression of 5 mm
Door or panel can be removed by unlatching the handles on both sides
3D Adjustable (tolerance compensation)
Latch-Hinge can be mounted as one piece with the door in place
Right or left hinged
Hinge 180° opening angle
Available with or without pressure relief
Patent submitted
VDI 6022 / ISO 846 compliant materials
ATEX compliant explosion protection version available on request

Trade fair innovation

Compression Latch-Hinge large

For door surfaces > 0.8 m²
The favorable pivot point of the handle allows for low actuation forces a seal compression of 5 mm
When the door is closed, the latch is adjustable (3 mm) to achieve perfect alignment
Door or panel can be removed by unlatching the handles on both sides
Hinge 180° opening angle
3D Adjustable (tolerance compensation)
Available with or without pressure relief
ATEX compliant explosion protection version available on request
Patent submitted

Trade fair innovation

Modular locking system

New modular handle with an innovative design
Suitable for doors opening inwards and outwards
Suitable for various door thicknesses (25 - 100 mm)
Fits 3 standard cut outs (13 mm, 19 mm, 24 mm)
Variety of locking options (round cylinder, blind plug, square insert, further inserts on request)
Roller Cam with Adjustable Clamping Load
Adjustable eccentric roller
Removable handle during transport
Meets the industry-specific national and international standards
Conforms with the entire EMKA range
Material: Polyamide with 30% glass filled (VDI 6022 / ISO 846 compliant materials)
Air Tightness class L1-L3 possible
Protected design
