LARGE CAPACITY VITRIFIED TANKS 'MASTER VITRO'

MAXIMUM BONDING-MOLECULAR INTERACTION: Applying a sophisticated "surface treatment" to the metal surface together with an automated process for the application of the enamel, results in much more than just a good mechanical adherence of the lining. During the curing process a molecular interaction occurs between the steel surface and the enamel coat applied. This maximum bonding of the enamel coat to the steel surface and the high degree of impermeability
of the vitreous enamelling, guarantee the durability of the product and prevents the kind of deterioration that can occur with other types of coatings, such as the detachment or blistering of the protective coat.

LONG-LASTING PRODUCT: VITREOUS ENAMELLED STEEL storage tank according to              DIN 4753/3: Food grade impermeable lining with a porcelain look that protects the metal surface of the storage tank in contact with water.

FOOD GRADE: Vitreous enamelling is a food-quality, impermeable lining with a porcelain look that protects the metal surface of the storage tank in contact with water. All internal linings in DHW tanks must, by law, be "food grade" (EC Regulation 1935/2004). Our vitreous enamelling, in addition to food grade certification at the test temperature specified in current regulations (22ºC), has food grade certification at 120ºC, which guarantees its maximum quality at extreme working temperatures.

MAXIMUM WORKING TEMPERATURE: It withstands the maximum DHW storage temperatures that these types of installation (95º) handle, without any deterioration or detachment thanks to its capacity of molecular interaction with the steel surface. This treatment is carried out by applying an enamel (inorganic chemical product) by either a "dry" or "wet" method (depending on the type of tank and its internal geometry), and then carrying out curing in an oven at 850ºC.

MAXIMUM STORAGE CAPACITY: Extra thick, rigid, PU mould-injected insulation that minimizes heat losses of stored DHW.

ELECTRIC HEATING: Ready for installation with Incoloy, low charge density electric immersion elements or with sheathed ceramic heating elements.

EASY TO HANDLE AND TRANSPORT: Our 'Master' storage tanks are designed for easy handling
and transport to the place of installation. They have an integrated system for handling and transporting by forklift truck, which facilitates handling operations enormously, as there is no need to palletize the product which, given its weight and size, would make handling difficult. The tanks are also equipped with lifting eyebolts on the top part so that if they have to be placed in a high area they can be lifted with an overhead hoist.

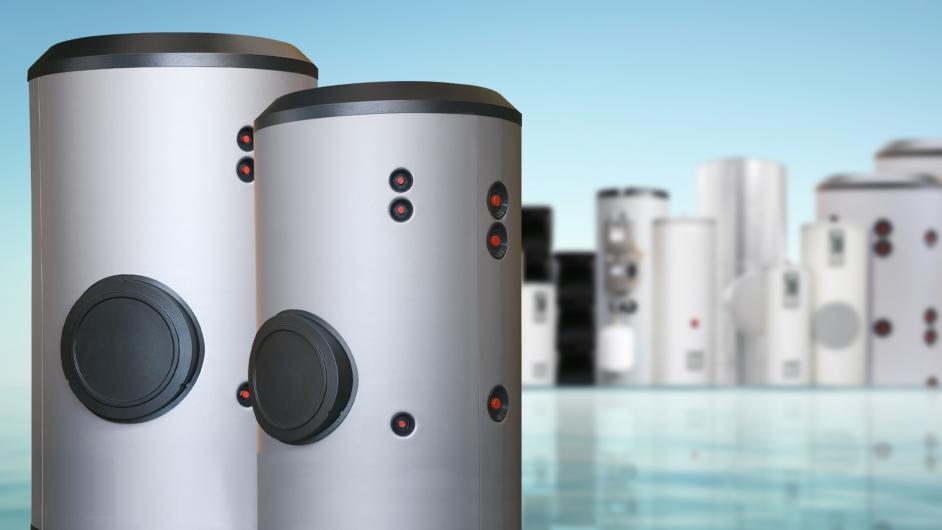

'MASTER VITRO' LARGE CAPACITY STORAGE TANKS                                                              With capacities from 1500 to 6000 litres these tanks are designed to provide an extraordinary storage capacity that translates directly into real savings.
Storage tanks ready for installation with plate heat exchanger and/or electric heating elements as the heating source.

FEATURES COMMON TO ALL 'MASTER VITRO' STORAGE MODELS:
• Vitreous enamelled steel DHW storage tanks according to DIN 4753/3
• Capacities: 1500, 2000, 2500, 3000, 3500, 4000, 5000 and 6000 litres
• Maximum working pressure of DHW storage tank: 8 bar (10 bar optional)
• Maximum working temperature of DHW storage tank: 95 ºC
• Thermal insulation: Rigid, mould-injected PU (CFC/HCFC-free, 0.025 W/mºK)
• Tanks for VERTICAL installation on floor. (HORIZONTAL position - optional)

'MASTER VITRO' LARGE CAPACITY TANKS WITH COIL

ANTI-LEGIONELLA DESIGN: The design of the complete range of 'MASTER VITRO' tanks adheres to all of the "Treatment and Prevention of Legionellosis" criteria specified in current UNE standards and EC Directives.The anti-legionella design applies to the storage tank unit and its internal DHW production system.

LARGE DHW PRODUCTION CAPACITY: A set of separate collectors and coils, made of STAINLESS STEEL, are fitted inside the storage tank, allowing the heat exchange surface to be dimensioned in accordance with the power required (up to 10 m2 in the 6000 litre model), adapted to traditional energy sources or to the use of renewable energies. This exclusive lapesa DHW production system for large capacity tanks, saves on installation space and allows total or partial maintenance of the unit, guaranteeing the continuous service of the installation.

FEATURES COMMON TO ALL 'MASTER VITRO' MODELS WITH COILS:
• Vitreous enamelled steel DHW storage tanks according to DIN 4753/3
• Capacities: 1500, 2000, 2500, 3000, 3500, 4000, 5000 and 6000 litres
• Maximum working pressure of DHW storage tank: 8 bar (10 bar optional)
• Maximum working temperature of DHW storage tank: 90 ºC
• Maximum pressure of set of coils: 25 bar
• Maximum temperature of set of coils: 110 ºC (up to 200 ºC with special high temperature seals)
• Thermal insulation: Rigid, mould-injected PU (CFC/HCFC-free, 0.025 W/mºK)
• Tanks for VERTICAL installation on floor (option of HORIZONTAL position)
