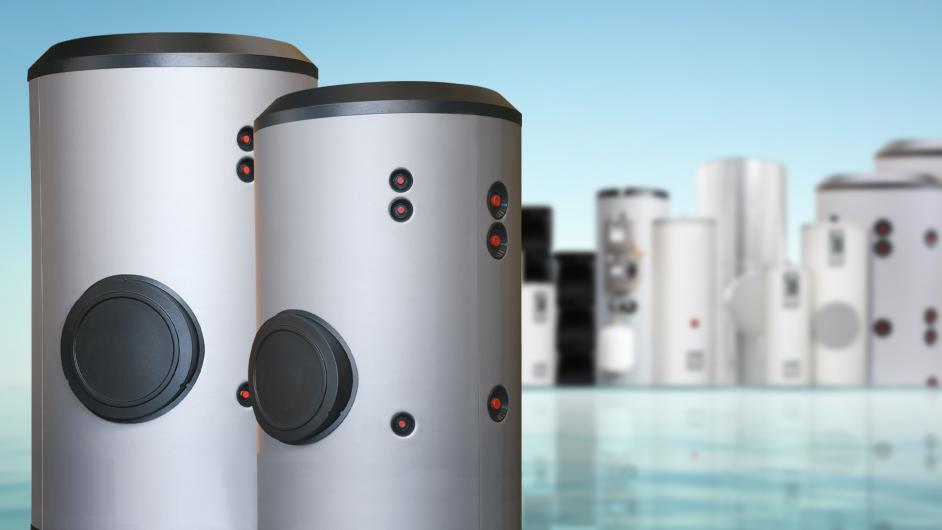

LARGE CAPACITY STAINLESS STEEL TANKS 'MASTER INOX'

LONG-LASTING PRODUCT: Nickel-chromiummolybdenum STAINLESS STEEL DHW storage
tank, highly resistant to pitting caused by halogen elements such as chlorine in drinking water. This is
the material used to manufacture all of the models in our 'MASTER INOX' series.

MAXIMUM STORAGE CAPACITY: Extra thick, rigid PU insulation that minimizes heat losses of stored DHW.

ELECTRIC HEATING: Ready to be fitted with Incoloy, low charge density electric immersion elements or with sheathed ceramic heating elements.

EASY TO MAINTAIN: With access to tank interior through ND400 side manhole, for inspection and
cleaning.

EASY TO HANDLE AND TRANSPORT: Our 'MASTER' storage tanks are designed for easy handling and transport to the place of installation. They have an integrated system for handling and
transporting by forklift truck, which facilitates handling operations enormously as there is no need to palletize the product which, given its weight and size, would make handling difficult. The tanks are also equipped with lifting eyebolts on the top part so that if they have to be placed in a high area they can be lifted with an overhead hoist.

'MASTER INOX' LARGE CAPACITY STORAGE TANKS                                                              With capacities from 1500 to 6000 litres these tanks are designed to provide an extraordinary storage capacity that translates directly into real savings.
Storage tanks ready for installation with plate heat exchanger and/or electric heating elements as the heating source.

FEATURES COMMON TO ALL "MASTER INOX" STORAGE MODELS:
• DHW storage tanks in AISI 316 L stainless steel
• Capacities: 1500, 2000, 2500, 3000, 3500, 4000, 5000 and 6000 litres
• Maximum working pressure of DHW storage tank: 8 bar (optional: 10 and 12 bar)
• Maximum working temperature of DHW storage tank: 90 ºC
• Thermal insulation: Rigid, mould-injected PU (CFC/HCFC-free, 0.025 W/mºK)
• Tanks for VERTICAL installation on floor. (OPTIONAL, HORIZONTAL position)

'MASTER INOX' LARGE CAPACITY TANKS WITH COIL

ANTI-LEGIONELLA DESIGN: The design of the complete range of 'MASTER INOX' tanks adheres
to all of the "Treatment and Prevention of Legionellosis" criteria specified in current UNE standards
and EC Directives and, in particular, in the R.D.865/2003 and the RITE (Regulations on Thermal
Installations in Buildings). The anti-legionella design applies to the storage: tank unit and its internal DHW production system.

LARGE DHW PRODUCTION CAPACITY: A set of separate collectors and coils, made of STAINLESS STEEL, are mounted inside the storage tank, allowing the heat exchange surface to be dimensioned in accordance with the power required (up to 10 m2 in the 5000 litre model), adapted to traditional energy sources or to the use of renewable energies. This exclusive lapesa DHW production system for large capacity tanks saves on installation space and allows total or partial maintenance of the unit, guaranteeing the continuous service of the installation.

FEATURES COMMON TO ALL 'MASTER INOX' COIL MODELS:
• DHW storage tanks in AISI 316 L stainless steel
• Capacities: 1500, 2000, 2500, 3000, 3500, 4000, 5000 and 6000 litres
• Maximum working pressure of DHW storage tank: 8 bar (optional: 10 and 12 bar)
• Maximum working temperature of DHW storage tank: 90 ºC
• Maximum pressure of set of coils: 25 bar
• Maximum temperature of set of coils: 110 ºC (up to 200 ºC with special high temperature seals)
• Thermal insulation: Rigid, mould-injected PU (CFC/HCFC-free, 0.025 W/mºK)
• Tanks for VERTICAL installation on floor. (OPTIONAL, HORIZONTAL position)
