Cleanair Plasma 2000 for 2000 m³/h with electrostatic filter

Kitchen extraction purification system for odour reduction and grease elimination with integrated EC-fan, equipped with NTP (low temperature plasma registers) plasma technology

Nominal extraction volume: 2.000 m³/h with external pressure drop of 350 pascal

Housing material in coated steel

Ozone exposed parts in stainless steel according to DIN 18869-7 (Part Kitchen ventilation)

Design: Double housing with insultation and suitable for roof installation lateral condensate drain

Plasma device for waste room ventilation CAP 600 SS. The device is equipped with the proven NT plasma technology designed as volume plasma.

Even though the device is relatively compact, the following 4 reaction stages are included:
- Mesh pre-filter
- Pre-filter sponge
- EC fan (adjustable)
- Plasma stage
- Catalyst (storage reactor)

This is a compact and fully-fledged version for use in waste rooms to remove odours from the exhaust air.

Effectively destroys bacteria, viruses, yeasts and mold spores in the inlet air.

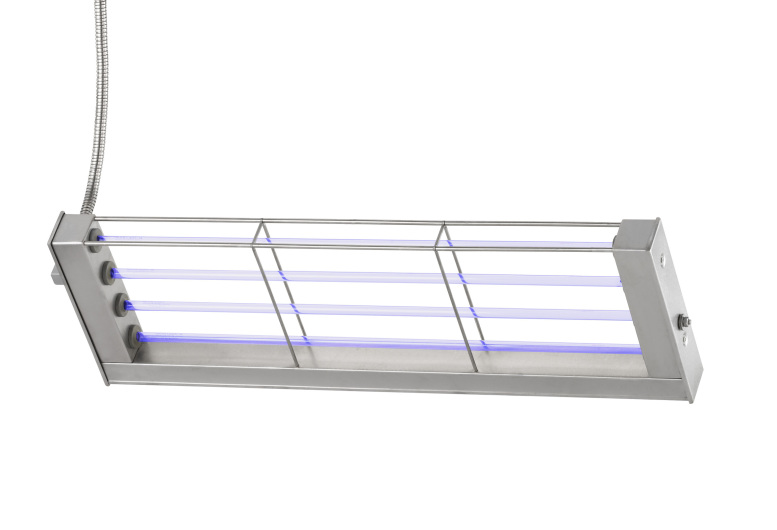

The suctioned-in outside air is guided inside an air conditioning duct module, across UV-C high performance lamps. These low-pressure lamps (UV-C-lamps) emit UV-C radiation of precisely 253,7 nm – a spectral line that reliably works to kill off germs. This means that microorganisms coming in from the outside are removed and, at the same time, the entire ventilation system is kept sterile.

Exhaust air cleaning module for efficient odour and grease removal.
Coated channel piece composed of a sponge filter, Mesh filter and electrostatic filter for prefiltering and a UV ozone cleaning system.

Housing material: coated outside
