Temperature Limiters

Temperature controls regulate a temperature easily and inexpensive within a fixed temperature range. The Temperature Controls are to be serial connected in the circuit (e. g. heating). The temperature is controlled by automatically switching on/off the heating.

Temperature Controller

• Nominal switching temperature 0°C to 250°C
• Rated current unto 16A / 230VAC
  5mA up to 200mA / 12VDC
• Approvals UL, CSA, VDE possible

Temperature sensors

Do you use KTY 84-130 in your application and don´t want to change the electronic? Please ask us for an one-to-one replacement solution for the no longer available KTY 84-130 to be able to work with the same equipment.

Of course you receive PT100, PT1000 as well as PTC and NTC in various models from us.

Temperature Sensors

• KTY 83-110 and 84-130 replacement (PTY)
• PT100
• PT1000
• PTC and NTC

Temperature Fuses are an effective and inexpensive way to avoid and cut-off the risk of overheating

Temperature Fuses

• Rated current 10A at 230VAC
  5A at 30VDC
• Temperature range 60°C up to 270°C

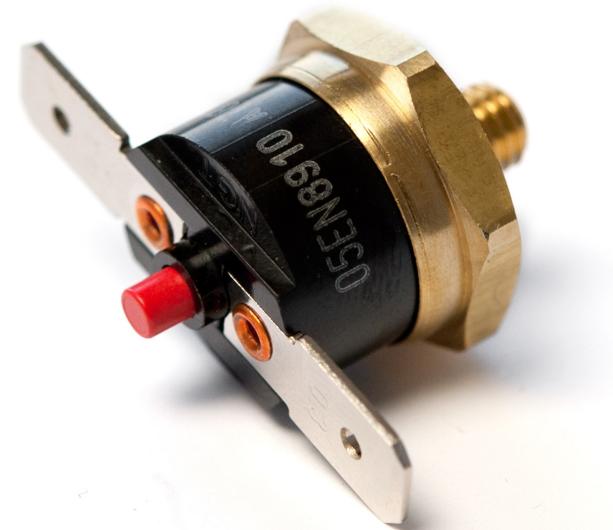

Thermal protectors are used to prevent an exceeding of a fixed temperature. On reaching the switching-off temperature the integrated bimetal disc snaps and cuts-off or closes the circuit. The difference to the Controller is mainly that the Thermal Protectors have a larger differential. Therefore it needs more time until the automatically reset effects.

Thermal protectors

• Nominal switching temperature 50°C up to 200°C
• Rated current up to 10A at 230VAC
• Approvals UL, CSA and VDE possible
