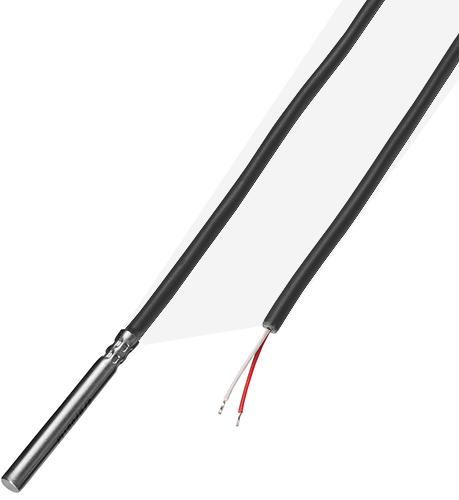

Temperature Sensors and KTY

Temperature controls regulate a temperature easily and inexpensive within a fixed temperature range. The Temperature Controls are to be serial connected in the circuit (e. g. heating). The temperature is controlled by automatically switching on/off the heating.

Temperature Controller

• Nominal switching temperature 0°C to 250°C
• Rated current unto 16A / 230VAC
  5mA up to 200mA / 12VDC
• Approvals UL, CSA, VDE possible

Temperature limiters are used to prevent too high temperatures, caused by malfunction or failure of other elements. On reaching the fixed temperature the limiters switch off the circuit. After removing the malfunction you can reset the limiter for finishing your production process under special monitoring. It is like a resettable fuse. Therefore, the user must make a conscious act to make a reset.

Temperature Limiters

• Nominal switching temperature 40°C until 250°C
• Rated current up to 16A at 230VAC
  5mA up to 200mA at 12VDC
• Approvals: VDE, UL, CSA possible

Temperature Fuses are an effective and inexpensive way to avoid and cut-off the risk of overheating

Temperature Fuses

• Rated current 10A at 230VAC
  5A at 30VDC
• Temperature range 60°C up to 270°C

Thermal protectors are used to prevent an exceeding of a fixed temperature. On reaching the switching-off temperature the integrated bimetal disc snaps and cuts-off or closes the circuit. The difference to the Controller is mainly that the Thermal Protectors have a larger differential. Therefore it needs more time until the automatically reset effects.

Thermal protectors

• Nominal switching temperature 50°C up to 200°C
• Rated current up to 10A at 230VAC
• Approvals UL, CSA and VDE possible
