Aironn Axial Type Jet Fan Series

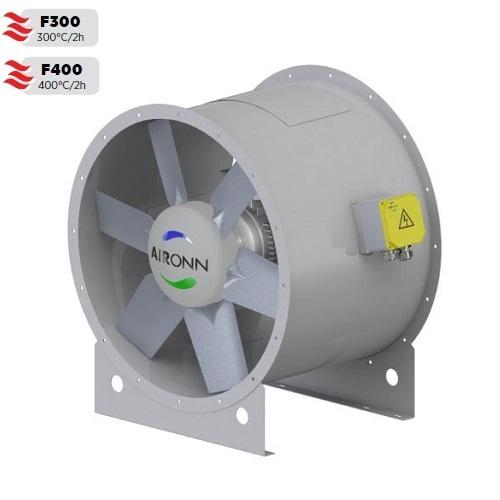

The Aironn Axial Type Unilateral Jet Fan Series is certified for 300°C for 2 hours and 400°C for 2 hours in compliance with EN 12101-3. Featuring airfoil fan blades with diameters ranging from 290 mm to 400 mm, the series delivers exceptional performance. The fans’ performance has been rigorously tested and validated in accordance with the AMCA 250-12 standard.

Fan Body

The fan bodies are constructed from high-quality galvanized steel, ensuring durability and corrosion resistance. Each unit comes equipped with a protection grill, which directs airflow on the discharge side and safeguards against debris on the intake side.

Fan Blades

The aerodynamic fan blades, made from ETIAL 171 aluminum alloy, are produced using the injection molding method. They are statically and dynamically balanced in compliance with ISO 1940/1-2003, guaranteeing stability and efficient operation.

Motor

The fans are powered by IP 55-rated motors with Class H insulation, available in both single-speed and dual-speed configurations. For added flexibility, single-speed motors can be adapted for use with inverters upon request. The sliding motor skid design ensures ease of maintenance and serviceability.

Electrical Components

Each unit features an IP 55-rated electrical terminal box, securely housed within the galvanized steel body for enhanced protection and reliability.

Tunnel Jet Fans

Jet fans are essential for two primary tunnel applications:

• Daily Ventilation – Ensuring consistent airflow and air quality.
• Emergency Ventilation – Assisting in smoke extraction during fires and facilitating the safe evacuation of individuals.

In emergency situations, our jet fans efficiently remove smoke from the fire source, providing a critical window for evacuation. These fans are equipped with components and motors capable of operating at high temperatures, ensuring reliability under the most challenging conditions. Both our fans and motors comply with EN-12101-3 standards and hold F300 and F400 certifications. (See: Documents)

Product Specifications

• Diameter Range: From 400 mm to 1800 mm
• Motor Power: From 0.55 kW to 160 kW
• Thrust Force: Up to 3200 Newton
• Blade Structures: Available in one-way and two-way options

Materials and Manufacturing

• Fan Blades and Fixing Components: Manufactured using ETIAL 171 aluminum alloy, produced via injection molding, and compliant with the EN1725 standard.
• Shaft Connection Rings: Made of CK-45 carbon steel, ensuring strength and durability.
• Fasteners: Screws and nuts are zinc-coated for corrosion resistance.

Structural Integrity

• Fan Housing: Wall thickness is optimized through structural analysis and rigorous post-manufacturing testing to suit different diameters.
• Silencers:
  • Inner and outer cylinders, inlet ports, and outlet rings have a 2 mm wall thickness.
  • Inner cylinder holes are 8 mm in diameter.
  • Fireproof rock wool insulation, 100 mm thick with a density of 50 kg/m³, ensures high-temperature resistance.

Durability and Protection

All sheet metal components are hot-dip galvanized for corrosion resistance and coated with epoxy paint for added durability.

Smoke Dampers for Smoke Control Systems

Smoke dampers are specifically designed to restrict the flow of smoke within a building, playing a critical role in engineered smoke control systems. These dampers automatically close using actuators during fire incidents, controlling the movement of smoke when the HVAC system is operational.

Applications of Smoke Dampers

Smoke dampers serve two primary functions:

• Passive Smoke Control Systems:
  The dampers close to prevent the circulation of air and smoke through ducts, effectively isolating affected areas.

• Engineered Smoke Control Systems:
  Designed to work alongside walls and floors as smoke barriers, these systems use the building’s HVAC system and/or dedicated fans to create pressure differentials, controlling the spread of smoke throughout the structure.

The ADS-2020-1 Smoke Dampers are specifically designed for use in dynamic HVAC systems to prevent the spread of smoke during life safety situations.

Aironn Hatch Type Axial Fans

The Aironn Hatch Type Axial Smoke Exhaust Fan Series for Roofs is certified for 300°C for 2 hours and 400°C for 2 hours in compliance with EN 12101-3. Available in diameters ranging from 400 mm to 1250 mm, these fans are equipped with motor-driven folding dampers and 50 mm-thick thermal insulation, effectively preventing heat transfer. The dampers are designed for quick action, opening rapidly when operation is required. With the ability to withstand snow loads of up to 1000 N, the powerful motor ensures reliable performance in all conditions. An integrated switch indicates whether the damper is open or closed.

The fan body is constructed from waterproof stainless galvanized steel, ensuring durability and corrosion resistance. On request, the body can be painted in any custom color. The 50 mm thermal insulation minimizes heat loss, even under varying internal and external weather conditions.

The performance of the Hatch Type Axial Smoke Exhaust Fan Series has been rigorously tested in accordance with the AMCA 210-07 standard.

Fan Body

The fan bodies are made from high-quality, corrosion-resistant hot-dip galvanized sheet metal. The flanges are self-flanged, formed by bending the body. Long-bodied designs are standard, with an optional inspection hatch available for added convenience.

Fan Blades

The aerodynamic blades, manufactured using ETIAL 171 aluminum alloy, are produced via injection molding. They are statically and dynamically balanced in compliance with ISO 1940/1-2003, ensuring stability and efficient performance.

Motor

Each unit features two IP 55-rated motors with Class H insulation, available in single-speed or dual-speed options. Upon request, single-speed motors can be adapted for use with inverters for greater flexibility.

Electrical Components

The fan is equipped with a standard IP 55-rated aluminum terminal box, providing robust protection for electrical components.

Aironn Axial Type Jet Fan Series

The Aironn Axial Type Unilateral Jet Fan Series is certified for 300°C for 2 hours and 400°C for 2 hours in compliance with EN 12101-3. Featuring airfoil fan blades with diameters ranging from 290 mm to 400 mm, the series delivers exceptional performance. The fans’ performance has been rigorously tested and validated in accordance with the AMCA 250-12 standard.

Fan Body

The fan bodies are constructed from high-quality galvanized steel, ensuring durability and corrosion resistance. Each unit comes equipped with a protection grill, which directs airflow on the discharge side and safeguards against debris on the intake side.

Fan Blades

The aerodynamic fan blades, made from ETIAL 171 aluminum alloy, are produced using the injection molding method. They are statically and dynamically balanced in compliance with ISO 1940/1-2003, guaranteeing stability and efficient operation.

Motor

The fans are powered by IP 55-rated motors with Class H insulation, available in both single-speed and dual-speed configurations. For added flexibility, single-speed motors can be adapted for use with inverters upon request. The sliding motor skid design ensures ease of maintenance and serviceability.

Electrical Components

Each unit features an IP 55-rated electrical terminal box, securely housed within the galvanized steel body for enhanced protection and reliability.

Tunnel Jet Fans

Jet fans are essential for two primary tunnel applications:

• Daily Ventilation – Ensuring consistent airflow and air quality.
• Emergency Ventilation – Assisting in smoke extraction during fires and facilitating the safe evacuation of individuals.

In emergency situations, our jet fans efficiently remove smoke from the fire source, providing a critical window for evacuation. These fans are equipped with components and motors capable of operating at high temperatures, ensuring reliability under the most challenging conditions. Both our fans and motors comply with EN-12101-3 standards and hold F300 and F400 certifications. (See: Documents)

Product Specifications

• Diameter Range: From 400 mm to 1800 mm
• Motor Power: From 0.55 kW to 160 kW
• Thrust Force: Up to 3200 Newton
• Blade Structures: Available in one-way and two-way options

Materials and Manufacturing

• Fan Blades and Fixing Components: Manufactured using ETIAL 171 aluminum alloy, produced via injection molding, and compliant with the EN1725 standard.
• Shaft Connection Rings: Made of CK-45 carbon steel, ensuring strength and durability.
• Fasteners: Screws and nuts are zinc-coated for corrosion resistance.

Structural Integrity

• Fan Housing: Wall thickness is optimized through structural analysis and rigorous post-manufacturing testing to suit different diameters.
• Silencers:
  • Inner and outer cylinders, inlet ports, and outlet rings have a 2 mm wall thickness.
  • Inner cylinder holes are 8 mm in diameter.
  • Fireproof rock wool insulation, 100 mm thick with a density of 50 kg/m³, ensures high-temperature resistance.

Durability and Protection

All sheet metal components are hot-dip galvanized for corrosion resistance and coated with epoxy paint for added durability.

Smoke Dampers for Smoke Control Systems

Smoke dampers are specifically designed to restrict the flow of smoke within a building, playing a critical role in engineered smoke control systems. These dampers automatically close using actuators during fire incidents, controlling the movement of smoke when the HVAC system is operational.

Applications of Smoke Dampers

Smoke dampers serve two primary functions:

• Passive Smoke Control Systems:
  The dampers close to prevent the circulation of air and smoke through ducts, effectively isolating affected areas.

• Engineered Smoke Control Systems:
  Designed to work alongside walls and floors as smoke barriers, these systems use the building’s HVAC system and/or dedicated fans to create pressure differentials, controlling the spread of smoke throughout the structure.

The ADS-2020-1 Smoke Dampers are specifically designed for use in dynamic HVAC systems to prevent the spread of smoke during life safety situations.
