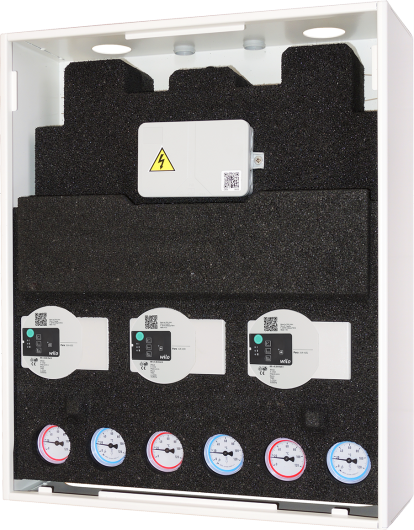

Modular Multi-Zone Distribution Box for Heat Pumps and Conventional Heat Generators

The extremely compact design allows up to three circuits to be hydraulically connected within a total width of just 450 mm.

The primary circuit includes two 1” male shut-off valves, a distribution manifold with an integrated hydraulic separator, or a simple manifold for systems up to 50 kW.

The hydraulic separator disconnects the primary circuit from the secondary circuit, enabling greater volumetric circulation of the heat transfer fluid compared to the fluid circulating in the generator.

Special insulation ensures suitability for cooling applications, preventing condensation.

It also includes an air-vent valve and a deaeration chamber. The IP55 junction box simplifies electrical wiring.

The distribution box, powder-coated in white RAL 9010, can be wall-mounted, recessed, or installed inside a hanging cupboard.
