Headers on both sides provide cross-counterflow that is almost perfect counter-current

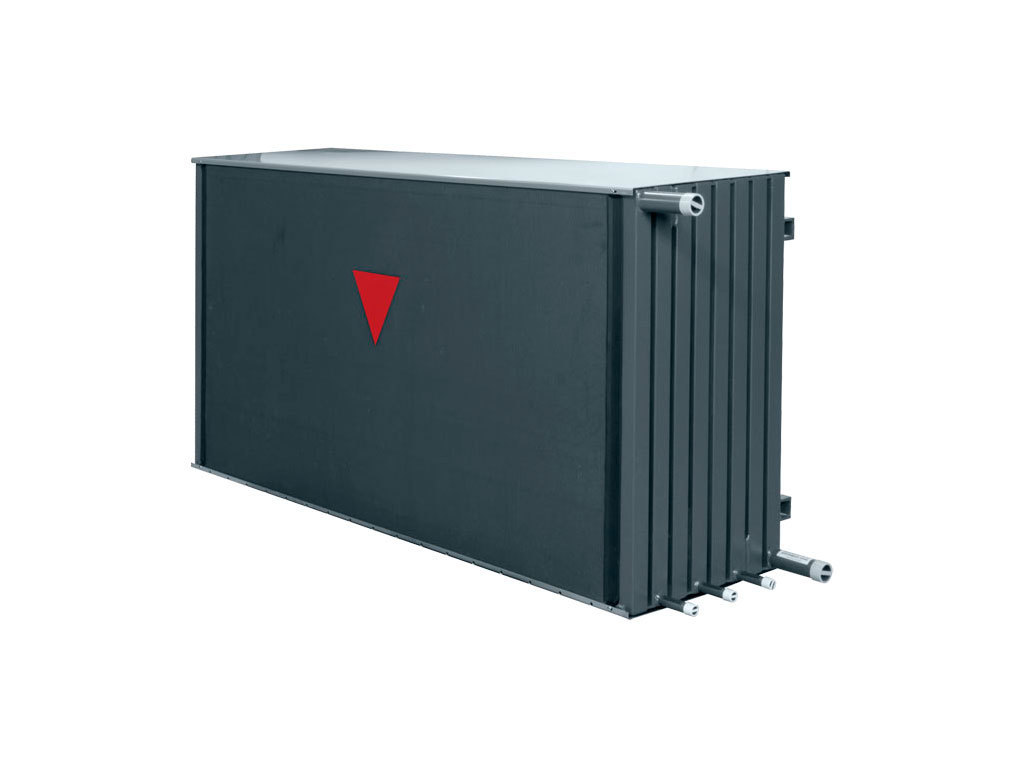

Konvekta high performance energy recovery coils achieve very small temperature differences between air and fluid.

Our unique design has headers on both sides that create cross-counterflow that is almost perfect counter-current. This allows for the largest overlap in exit temperatures between fluid and air.

Each coil iscustom designed, optimized, and manufactured for each specific project. Every coil is manufactured to the highest quality standards at the Konvekta factory in Switzerland and goes trough rigorous testing programs to meet certification standards.

Konvekta energy recovery coils, with 8 fins per inch and up to 22th in coild-depth, are easy to clean with high-pressure water or stream.

Konvekta high-performance energy recovery systems reduce energy consumption by 70-90 %

An energy recovery system controller that uses actual operating conditions is the most effective.

Konvekta high performance energy recovery systems make a major contribution to reducing CO2 emissions and have a high rate of return on capital investment. Optimization of the system and trouble-free operation are critical. Installation imperfections, maintenance needs, software errors of incorrectly set control valves must be identified and corrected. To achieve this,continuous monitoring is essential so that maintenance needs and system malfunction are quickly detected, reported and addressed. This guarantees a high level of system reliability and maximum energy recovery.

The calculations required to provide supply air at the desired temperature demands knowledge of the actual operating conditions and performance maps of the energy recovery coils, umps and valves. This data must be communicated to the system controller.

To achieve efficient, trouble-free operation,Konvekta provides an Operation optimization. Critical operating parameters are monitored in both part- and full-load operation and all system malfunctions are detected and corrected. Each energy recovery system is unique in design because the requirements of each building are different. Konvekta optimizes each design for specific operating conditions in all seasons as well as for partial and full load conditions.

The controller requires a VPN access. This allows Konvekta to retriev all relevant operating data daily. The data is analyzed and displayed graphically on the project dashboard which is available to the customer and password protected for security.

Optimally designed for each individual system, the hydronic module includes all major mechanical components such as pumps, control valves, a frost protection bypass line and several temperature sensors

Our energy recovery coils and hydronic modules are optimally sized for maximum heat transfer in the coils and guaranteed performance, even in partial load operation.

Continous Monitoring with watchdog capabilities

System malfunctions or reduced performance are detected and can be quickly resolved. This guarantees system availability and maximum recovery.

The goal of each energy recovery system is optimal net annual energy recovery which yields the greatest energy cost savings over lifetime of the building. This requires optimized and malfunctionfree operation. Installation error, software glitches and erroneous set values must be detected.

Comprehensive information at a glance

The increased use of electronics and software makes systems more complex. Therefore, it is important that system operators continously receive easy-to-interpret information about operating status and potential problems. With the new Auto-Reporting Plus all critical data is monitored and displayed graphically over the internet and is password protected to ensure security. Thanks to the clear, visual presentation of data, all important operating parameters can be easily assessed to ensure recovery efficiency and optimal system operation so that performance goals are achieved.
