Komfovent GmbH
Konrad-Zuse-Str. 2a
42551 Velbert
Germany
Telephone+49 2051 6051180
Fax+49 2051 6051184
Discover more from us
About us
Komfovent – Energy Efficient Air Handling Units
KOMFOVENT stands for comfort, healthy indoor climate, efficiency and productivity. We are responsible for high quality and reliable operation of our products. The most efficient solutions are achieved with our contemporary manufactured production and we ensure – KOMFOVENT WORKS PROPERLY.
KOMFOVENT is a constantly growing European company. More than 20 years we are dedicating all our energy to create and offer innovative products which could satisfy the most demanding customers. We are proud of employing 550 people and owning of 40000 m² of advanced, modern and brand new automated production area.
High level of quality, a deep respect to the environment with a trust for a better and cleaner world and occupational health and safety – that is the target our company adheres to.
Located in the Northern part of Europe, KOMFOVENT company got perfect experience from Scandinavian countries, which have long professional history in the ventilation field. KOMFOVENT is actively applying and refers to mostly requestive and strict quality standards for the produced ventilation equipment offering only energy efficient ventilation solutions.
Komfovent VERSO and KLASIK units is Eurovent certified, TÜV approved and confirms all required EU norms and regulations. Passive House Institute Certificate is also available for some range of the units. KOMFOVENT is the member of German Association of ventilation equipment producers RLT and company operational system complies with requirements of the quality and environment standards ISO 9001 and ISO 14001.
Every year the investments are being made for the acquisition of the new modern machinery, tools, and personnel training with the main goal – to produce and offer only high quality products.
Using knowledge and skills of our local engineers and specialists together with gained different experience from our foreign partners give us possibilities to offer the best technical solutions. For us growing is about moving forward together with our customers, sharing the same values, meeting their needs and expectations. Together with our partners we are going towards new and more ambitious goals.
Domekt Residential Ventilation Units:
Airhandlingunits between 50 and 700 m³/h for residential Ventilation. Units with horizontal or vertical connections or for ceiling installation.
Heatrecovery with Rotary- or Plateheatexchanger.
Verso Commercial Ventilation Units:
Airhandlingunits between 1.000 and 40.000 m³/h for Ventilation of commercial buildings.von Nichtwohnräumen. Units with horizontal or vertical connections or for ceiling installation.
Heatrecovery with Rotary- or Plateheatexchanger.
Klasik non residential ventilation units:
Wide range of KLASIK AHUs is applicable for the different type of projects that require more functional possibilities or other special solutions: public, industrial buildings, etc. Clean premise ventilation needs can be fulfilled by the hygienic version of the equipment.
RHP:
ventilation units with a rotary heat exchanger and an integrated heat pump.
All RHP units have integrated heat pump, this technology extends air handling unit’s capabilities – the unit not only ventilates, but also heats and cools the premises. Implementation of such complex technical solution not only extends the application of the unit, but also ensures high efficiency due to two energy recovery stages (by rotary heat exchanger and heat pump).
Downloads
Documents
Keywords
- RLT
- Wohnraumlüftung
- Wärmerückgewinnung
- KWL
- Lüftung
Our Products

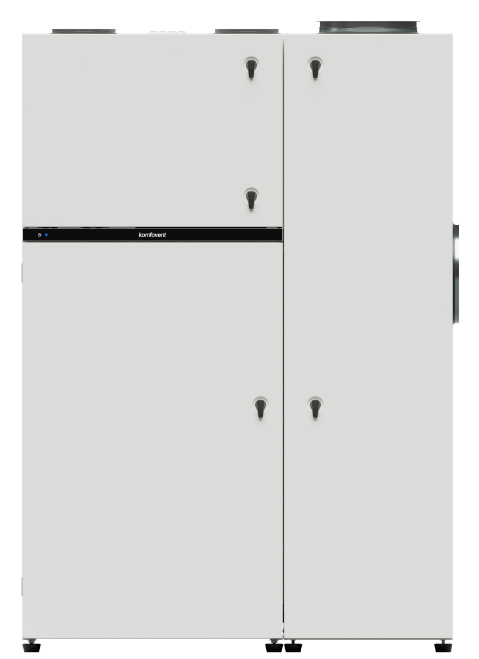

KOMBI hybrid heating and ventilation unit
KOMBI – the hybrid heating and ventilation unit combines all functions: ventilation, heating, cooling, and domestic hot water. All essential systems in one unit save you time and space during the planning phase, as you have to select the space for one unit instead of three or four devices, not to mention the reduced investment costs.
The KOMBI unit consists of three internal modules: residential ventilation with heat and humidity recovery, air to water heat pump for main heating and cooling needs, and an integrated water tank for domestic hot water preparation and storage. All the modules are controlled simultaneously via an integrated control system.
The features of a KOMBI unit:
• Ready to use hybrid ventilation and heating unit
• Simple planning / installation / maintenance
• Space-saving solution
• No outdoor unit needed - minimal impact on the exterior of the building
• Large capacity domestic hot water tank
• Noise level control
• Effective heating even up to -25 °C
• Heating up to -30 °C with additional integrated electric heater
• Maximum energy saving ensured by integrated intelligent control algorithms
• Easy HVAC system control with a single remote panel
• 5-year warranty

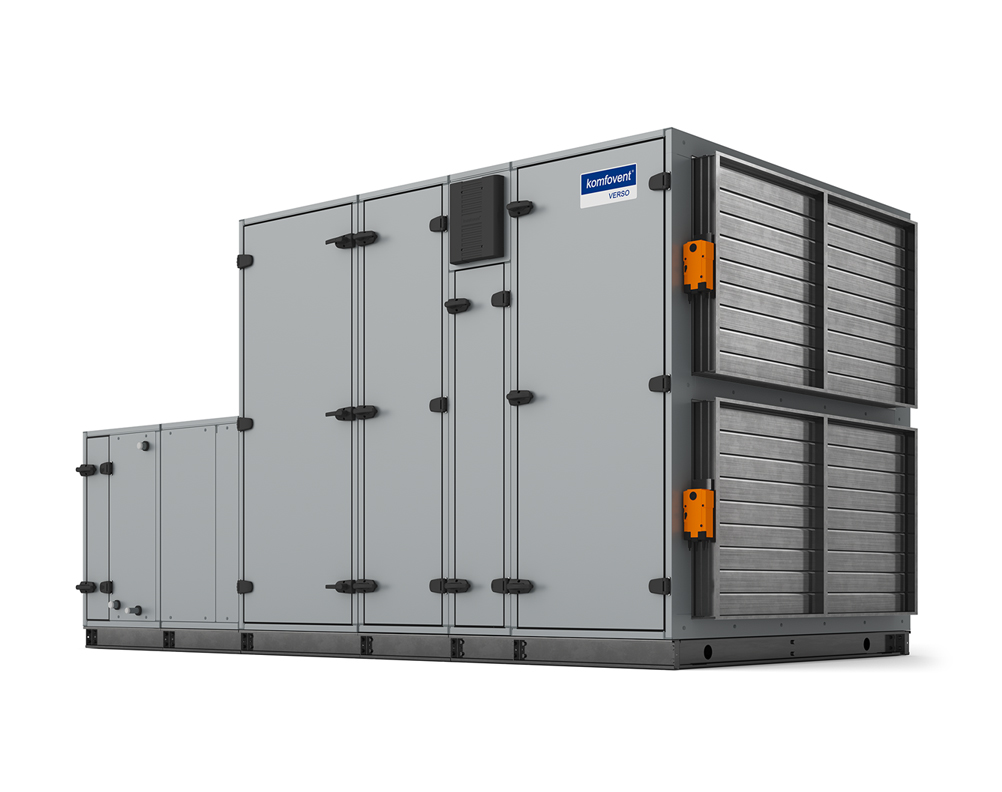

VERSO Pro2
Advanced and highly efficient modular air handling units
The airflow capacity: 1000 – 40 000 m³/h.
VERSO Pro2 range uses the latest technologies to ensure
the best energy-saving and operation parameters. The
superior performance classes T2/TB1/L1/D1 have been
achieved thanks to the patented casing design.
The VERSO Pro2 series offers 1,6 million possible combinations
for the simplest and the most complex projects,
such as business centers, shopping malls, sports arenas,
cinemas and theatres, hotels, airports, logistic centers, industry.
Patented VERSO Pro2 casing – superior performance
Advanced PVC profile technology ensures best casing characteristics:
minimal energy losses, lowest sound levels, highest air tightness and mechanical durability.
Rotary heat exchanger
Used in Verso R series units. Temperature efficiency factor
– up to 86 %. Possible wave height: L, ML, SL.
Types of rotary heat exchangers:
• Condensing (aluminium);
• Condensing with epoxy coating;
• Sorption (aluminium with zeolite 4Å coating).
Rotary heat exchangers are made of seawater-resistant
aluminum foil, the casing is also made of galvanized steel.
Rotary heat exchanger rotation speed is controlled by a
frequency converter, according to the air temperature.
The heat exchanger can be ordered with an installed
purge section.
Counter flow plate heat exchanger
Used in Verso CF series units. Temperature efficiency factor
– up to 95 % in wet conditions and up to 88 % in dry
conditions. The plate heat exchanger is equipped with an
automatic by-pass. The heat exchanger is made of seawater-
resistant aluminum plates. The distance between the
plates is 2,1 or 3 mm.
VERSO Pro2 series units can be ordered with an enthalpy
counterflow plate heat exchanger.

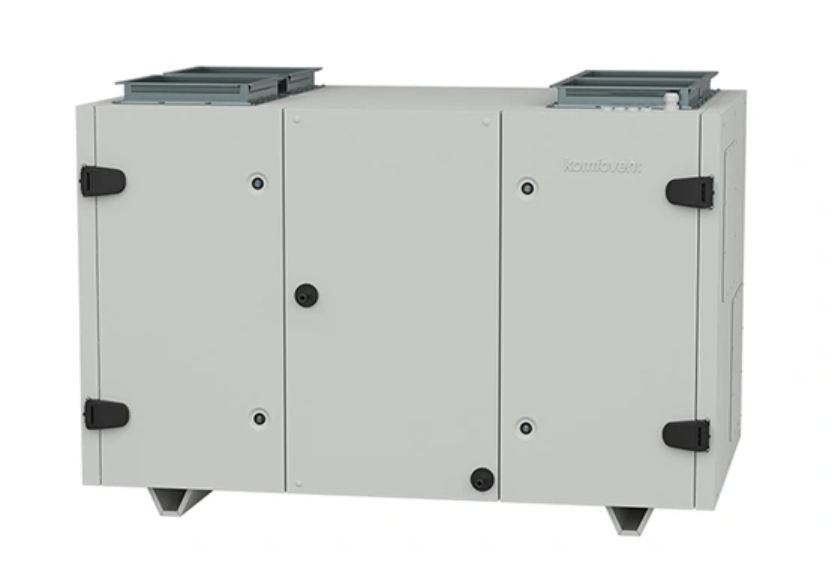

Schoolventilation Unit VERSO R 1000 FSA C5
The VERSO R 1000 FSA C5 school ventilation unit is a decentralized ventilation unit for ventilating individual rooms such as classrooms, daycare rooms or even offices. The unit can be installed directly under the ceiling without an air distribution system and supplies the room with fresh air.
- Ventilation as needed in your classrooms and school rooms.
- Low installation effort.
- Avoidance of excessive CO2 levels.
- No noise pollution from the environment (traffic, etc.).
- Significant increase in air quality.
- Filtration of the air = reduces the germ and bacteria load.
- No heat loss due to the recovery and saving of
of additional heating energy. - Moisture recovery = avoids drying out of the air in the room
air and protects the mucous membranes. - Optimal thermals = the air distribution system avoids
drafts and mixed air. - Health-preserving and performance-enhancing.
- Low maintenance and servicing costs due to
remote diagnosis.

Residential Ventilation Units DOMEKT
DOMEKT air handling units are designed for the ventilation of residential premise. DOMEKT series offers the
standardized range of air handling units with heat recovery by rotary or counter-flow plate heat exchanger, or
just air supply units. Units’ air flow performance ranges from 50 m³/h to 1000 m³/h.
A compact and universal air handling units’ design helps to integrate them in a kitchen furniture.
It is also possible to hang the units on the wall, ceiling, or to put it on the floor.
All DOMEKT units are based on the PLUG & PLAY principle: each unit has the integrated control system and is
delivered with a complete automatic control installed and prewired inside the unit. A modern control panel can
be supplied with each DOMEKT unit.
Due to the availability of clever design and functions the units offer a great opportunity to keep running costs
low. They are safe, reliable and durable in operation. The filtered air is supplied clean and fresh to the premises,
which is extremely advisable for allergic people.
ENERGY SAVING
• Modern energy efficient EC fans.
• High efficiency rotary and counterflow plate heat exchangers.
• Low resistance and high filtration class air filters.
• Over 20 functions optimise unit’s operation and reduce
running costs.
SMART CONTROL
• "Komfovent Control" app.
• Ability to control via a web browser.
• Integration into a smart home management system.
• Demand control ventilation according to the air quality
parameters by connecting additional sensors.
HUMIDITY CONTROL
• Optional heat exchangers – sorption rotary or enthalpic
counterflow plate – efficiently recover humidity.
• Air quality function ventilates premises according to
the user desired humidity settings.
RELIABLE AND DURABLE CASING
• Powder coated (RAL 9003) galvanized steel panels insulated
with mineral wool.
• Hydrophobic and lightweight EPP (expanded polypropylene)
casing without thermal bridges and condensation
is designed for several units.
LOW NOISE LEVEL
• Perfectly balanced fans.
• All of the unit’s components are aerodynamically
matched.
• Sound absorbing insulation and special composite
materials.
LONG-LIFE SOLUTIONS
• Variable rotary heat exchanger speed control.
• Fan motors are protected from humidity and dust, and
equipped with long-life bearings.
• Up to 10 safety functions, which ensure reliable operation
of unit components.

RHP - Ventilation with integrated Heatpump
RHP Standard series air handling units with a rotary heat exchanger and an integrated heat pump. Operating
capacity ranges from 150 m3/h to 1 700 m3/h.
RHP Professional series air handling units with a rotary heat exchanger and an integrated heat pump for the
air flows from 1 200 m3/h to 25 000 m3/h can be selected with the selection software to match particular
professional projects.
Integrated heat pump technology extends air handling unit’s capabilities – the unit not only ventilates, but
also heats and cools the premises. Implementation of such complex technical solution not only extends the
application of the unit, but also ensures high efficiency due to two energy recovery stages (by rotary heat
exchanger and heat pump).
VENTILATION
RHP units provide the premises with
fresh air consuming minimal power
HEATING
RHP units can efficiently heat
the premises especially during a
transitional period
COOLING
RHP units provide the most efficient
cooling during the summer
AIR FILTRATION
Fresh air supplying into room is
cleaned from dust
HUMIDITY CONTROL
RHP units in summer perform
dehumidification and in winter –
regeneration of humidity
Wide possibilities with RHP:
• Unit monitoring and management through the
Internet and BMS.
• Extremely high energy efficiency.
• Simple designing, installing, operation and
maintenance.
• Shortest payback time.
• Unified smart control, simplified management.
• No outdoor unit, no refrigeration specialists required.
Integrated control system C5
Automatic system designed for professionals, controls
thermodynamic processes and saves energy.
The user is given detailed information about the operation
of the unit. Variety of modes and functions allows the
user to choose the optimal operating mode that maximizes
energy saving.
