• Special steel sheet and convector structure provides maximum heat capacity.
• Production in accordance with EN 442 standarts.
• Universal installation option
• Maximum corrosion resistant by epoxy poliester electrostatic powder coating process.
• Special packaging and corner protection for potential damages and installation accessories.
• High operating pressure
• Heat transfer cost saving by low water volume.
• Production in high technology robot weld line.
• 100 % leakage and quality test for every radiator.
• All accessories required for wall mounting are included in product package
• 15 years guarantee.

• Available height: 300 mm- 400 mm-500 mm-600 mm- 900 mm
• Available length: From 400 mm to 3000 mm
• Types: TYPE 10-11-20-21-22-33
• Models: Premium Classic, Vertical,Slim
• Installation: Side, Bottom,Universal
• Front Panel: Classic, Flat, Horizontal Line

Maktek Electric Radiator is a unique technology that combines practical electric heaters with conventional heating system of a classic panel radiator. A fast convected heat gives a constant temprature throughout the room. It offers the perfect solution for boiler heated homes that require additional heating or for properties with no gas supply available. The radiators operate with 100% efficiency and due to low surface temprature they are completely safe for small children. Maktek Electric Radiators do not need any regular maintainence and can be used for a very long period of time. The units are easy to install, similar to a classic panel radiator. Heating starts instantly and the room temprature reaches to desired level within minutes.

Works with 100% efficiency. First investment rate is quite low when the whole house is heated. Homogeniously heats the room thanks to special resistance and outer panel temprature conductivity. Panels and convectors rapidly spreads fluid heat to the environment.

• No need for installation connection, works only with electricty
• Rapid heating and economic energy consumption
• Works anywhere where electricity is available , can be moved or can be mounted on the wall
• Provides balanced heating out of many capacity options hence avoids unnecessary energy consumption. Total radiator cost is much lower.
• Thanks to homogenious heating feature of classical panel radiators, drying up of room air is prevented. Provides healthier heating in comparison to extreme surface temprature heaters like infrared, halogene heaters or electric stoves

Very Comfortable and Practical

Works completely according to the heating principle of a boiler. Provides perfect comfort and equal heating,wherever the panels are installed. Heating at desired temprature is possible thanks to thermostat. The panels are ultra silent during operation. Available as flat or classic front panel.

Durable

• Maximum resistance to corrosion thanks to epoxy polyester electrostatic powder painting
• Special sheet metal compatible with DIN EN 10130 norms are used for manufacturing.
• Optimum efficiency thanks to welding system of convectors to fluid channels
• Epoxy polyester powder painting system by using spray surface cleaning technology at full automatic machines
• Production according to EN 442 standarts.
• Ce certified, produced according to EMC directives
• 3 years warranty

Realiable and Healthy

• There is no soot problem since there is no chimney connection
• No moving parts for safety reasons
• There is no risk of explosion or gas poisoning since the panel do not produce carbonmonoxide or other dangerous gas waste
• Risks such as short circuit or fuse blowing is eliminated thanks to special inner design.
• Does not circulate the dust in the air like a fan heater would do

How To Choose The Correct Radiator Capacity

Factors such as climate conditions, size of the room , isolation of the building and the method of installation plays a great role over the expected efficiency of the radiator. An avarage required capacity for radiator can be deducted by using a simple formula which can be done even by the end user.

Capacity = Length of the room x Width of the room X Height of the room x A

A signifies the following numbers:

For living room A = 0,086

For bedroom A = 0,076

For kitchen A = 0,066

For winter garden A = 0,13

Example = In order to calculate the necessary heating power for a room with 5 meters length, 2 meters width and 2,5 meters height;

Capacity = 5 x 2 x 2,5 x0,086 ( For living room A = 0,086) = 2, 15 kw/ h

This value might change according to the isolation status of the room. You can check this information from the technical table.

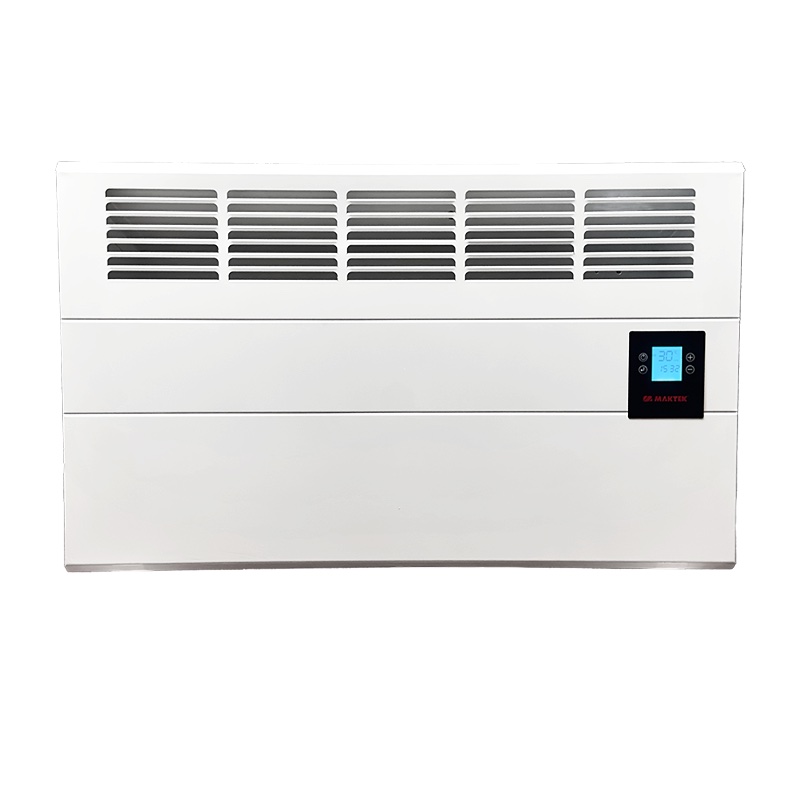

Electric Convector Heater produced in Turkey by Maktek is a perfect choice for delivering practical and comfortable heating with no need for piping or installation. Available as digital control and manuel control models, the heater provides instant heating after plugged in. It is possible to use Maktek Convector Heater as floor standing with the legs provided with the product or it can be mounted on the wall. The product is extremely light so it is possible to carry it around thanks to the handle at the back.

• ERP Lot20 compliant
• Capacity range from 1000 W>> 2500 w
• Monitores the room temperature and heater surface temperature seperately
• Child safety function
• Weekly and daily 24h timer functions
• Electronic room temperature control
• Can be used as free standing or can be mounted on the wall

Child Safety

With low surface temperature operation function, you can limit the surface temperature of the heater to a desired value. If the heater will be used in presence of unattended small children such as children rooms, daycares/schools ; it is very safe to set the limit surface temperature to minimum from the control panel. This will limit the surface temperature of the heater and avoid accidental burns.

Realiable & Healthy

• 100 % quiet operation and ultra silent heater since there is no fan or moving parts inside
• High efficiency X-shaped aluminium heating element provides comfortable heating. The heater does not have any red glowing parts, therefore it does not burn the oxygen in the room and provides high air quality heating
• Does not require periodic maintenance
• Overheat protection with safety thermostat
• Tip over protection: The heater shuts off when it’s not pleced in upright position
• Built in electronic control panel with LCD screen

Modes & Functions

• Open Window Function: This mode prevents electricity energy waste. While this function of the heater is active, the heater shuts off automatically when a window or door is open in the heating area. This provides vast energy savings when the user forgets to turn off the heater as they open windows to ventilate the room.
• Manuel Operation Mode: Manuel operation mode disregards the room temperature reading from the room temperature sensor and the heater operates only according to the adjusted heater surface temperature. When the surface temperature reaches adjusted value the heater shuts off and when the surface temperature decreases by 5° C, the heater starts working again.
• Comfort Mode: In this mode, the room temperature adjustment is fixed at 24° C to ensure comfortable heating and brings the room to the comfort temperature of 24°C
• Economy Mode: In this mode, the room temperature adjustment is fixed at 18°C to ensure economic operation and heats up the room only up to 18° C. This mode can be used during the night in bedrooms for a healthy sleeping temperature and electric comsuption reduction.
• Boost Mode: In this mode, the room temperature adjustment is fixed at 35° C to ensure rapid heating and the heater operates at max power.
• Time Function: This function allows you to set time intervals for the heater to start and stop operation automatically. It provides comfort by enabling automatic operation without having to turn on/ off heater manually and also energy savings by setting the closing times of the heater.

Omega LCD Electric Heating Boiler

Provides instant domestic hot water and heating. The boiler can also be produced as heating only function or with necessary components to connect to an external reserve water tank. Outputs 6 kw-10 kw-12 kw can operate with 220 V, higher outputs require 380 V.

• Outputs from 6 kw to 100 kw
• Adjustable boiler output
• Full automatic modulation
• Built in weekly timer
• Suited to underfloor heating
• Can be fitted to any moisture free location
• O emission , 0 waste gas
• Large LCD screen

Comfortable Heating and Hot Water

Omega LCD is a perfect solution to houses with no access to gas supply. The boiler efficiently operates with central heating and it is suited to underfloor heating. It also provides instantaneous domestic hot water for showers ,sink and baths at constant temprature. For larger hot water requirements, it can be combined with a hot water storage cylinder. Built in weekly timer function enables automatic operation of the boiler for every day seperately.

Superior Functions

Mainboard with microprocessor and a large LCD screen enables enhanced control parameters. Adjustable maximum boiler capacity feature enables the boiler output to be adjusted on the LCD screen.Water pressure transducer shows system water pressure that provides protection for low and high pressures

Cost Effective Solution

There is no heat loss in electric heating. Omega LCD Electric Boiler operates with 99% efficiency. Energy efficient circulation pump provides electricity savings. With full automatic modulation, heating capacity of the boiler is adjusted according to the heating demand, ensuring maximum saving during operation.

Safe and Reliable

Omega LCD comes with multiple security systems including frost protection. Thanks to 3 bar safety valve, the boiler is fully protected against high pressure. Float water level sensor ensures the main heat exchanger is full and protect the heating elements from operating without water. Each boiler comes with RCD (short circuit relay) and it provides electrical protection and safe operation. Limit thermostat and safety thermostat protects against overheating. Antijamming system protects the circulation pump and the 3 way valve motor.

Makpell Pellet Boiler

Maktek Pellet boiler is a complete unit with chrome combustion chamber, automatic ignition, waste gas fan, integrated pellet tank, automatic pellet feeding motor, circulation pump, expansion tank, pellet feeding helezone, water and waste gas temprature sensor, integrated safety systems and LCD control panel

• It is produced with outputs 25 kw and 35 kw in our ISO 9001:2015 certified factory
• High efficiency and care free performance thanks to full automatic ignition and pellet loading
• Combustion is provided equally over all the surfaces of the combustion chamber thanks to patented cylindirical combustion chamber design for 6 mm diameter pellets and pellet intake system that distributes the pelletts into the combustion chamber homogeniously
• Makpell Pellet Boiler has Class 5 efficiency and emission values according to EN 303-5:2021 standarts
• A+ energy efficiency and over 124< Energy Efficiency Index
• All the boiler functions can be monitored on LCD screen
• The boiler can be operated with a single button on the electronic control panel , provides easy and practical use
• The boiler comes with multiple safety systems such as safety thermostat against over heating, back firing, operation without system water, frost protection
• Provides energy saving and low waste gas emission thanks to special case design
• Combustion air that comes from the peripheral surfaces of the combustion chamber enables homogenious burning of the fuel
• High temprature resistant 310 quality chrome combustion chamber minimises the corrosion during heating
• Ultra quiet phase controlled fan provides optimum air circulation at all working power stages enablinghighest efficiency
• Automatic loading provides the ashes to be collected in the ash drawer
• Erp compatible, energy efficient circulation pump enables circulation at desired flow and provides energy saving
