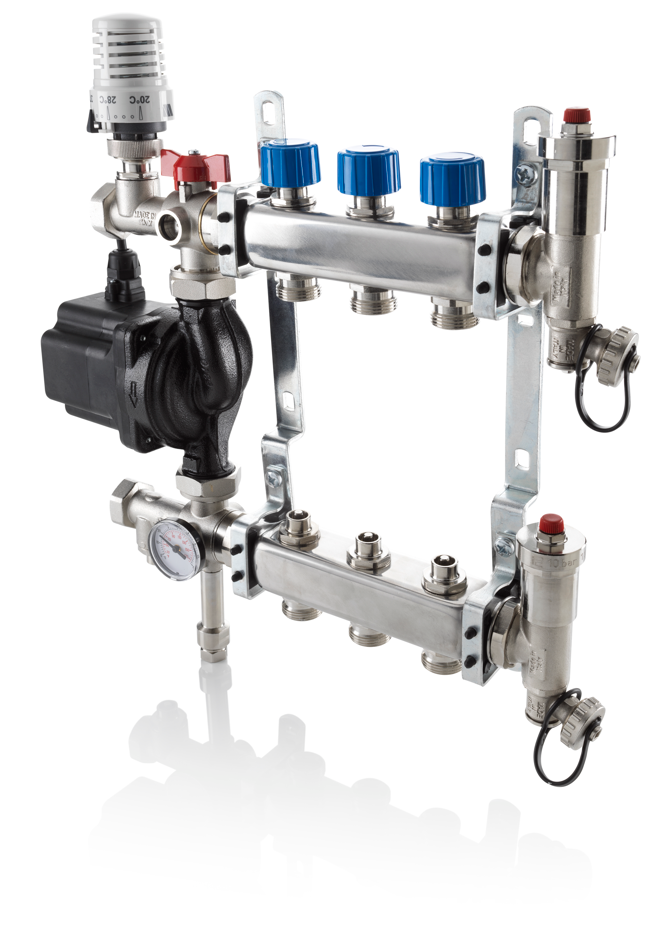

Pintossi+C stainless steel distribution manifolds can be used both for underfloor heating and cooling systems. This kind of manifolds are mainly used in underfloor heating systems with radiant panels, radiators or fan coils.

The specific characteristics of the stainless steel AISI 304 and in particular is extreme strenght, allows to use thinner surface compared to brass, granting a greater lightness. Besides stainless steel bar, unlike brass bar, does not have internal tensions, which may lead to breaks or cracks and then to water leakages, in particular if the brass bar is not heat treated.

The specific design of Pintossi+C manifolds grant, compared to standard brass bar or plastic manifolds, higher flow rates, getting up to 5 m³/h (1” manifolds).

Manifolds can be equipped with flowmeters for the regulation and control of the circuits flow or with lockshields. Each manifolds is supplied pre-assembled with brackets for iron boxes or for wall installation. The end parts are equipped with drain valve and with manual or automatic air vents. Furthermore it’s available a straight or angle ball valves kit with thermometer to control the supply and return water temperature.

Both valves and end parts are equipped with PTM system (Pintossi soft sealing), which allow a quick and safe installation, without the use of additional sealing materials, like hemp or PTFE ribbon.

Each manifolds is singularly tested.

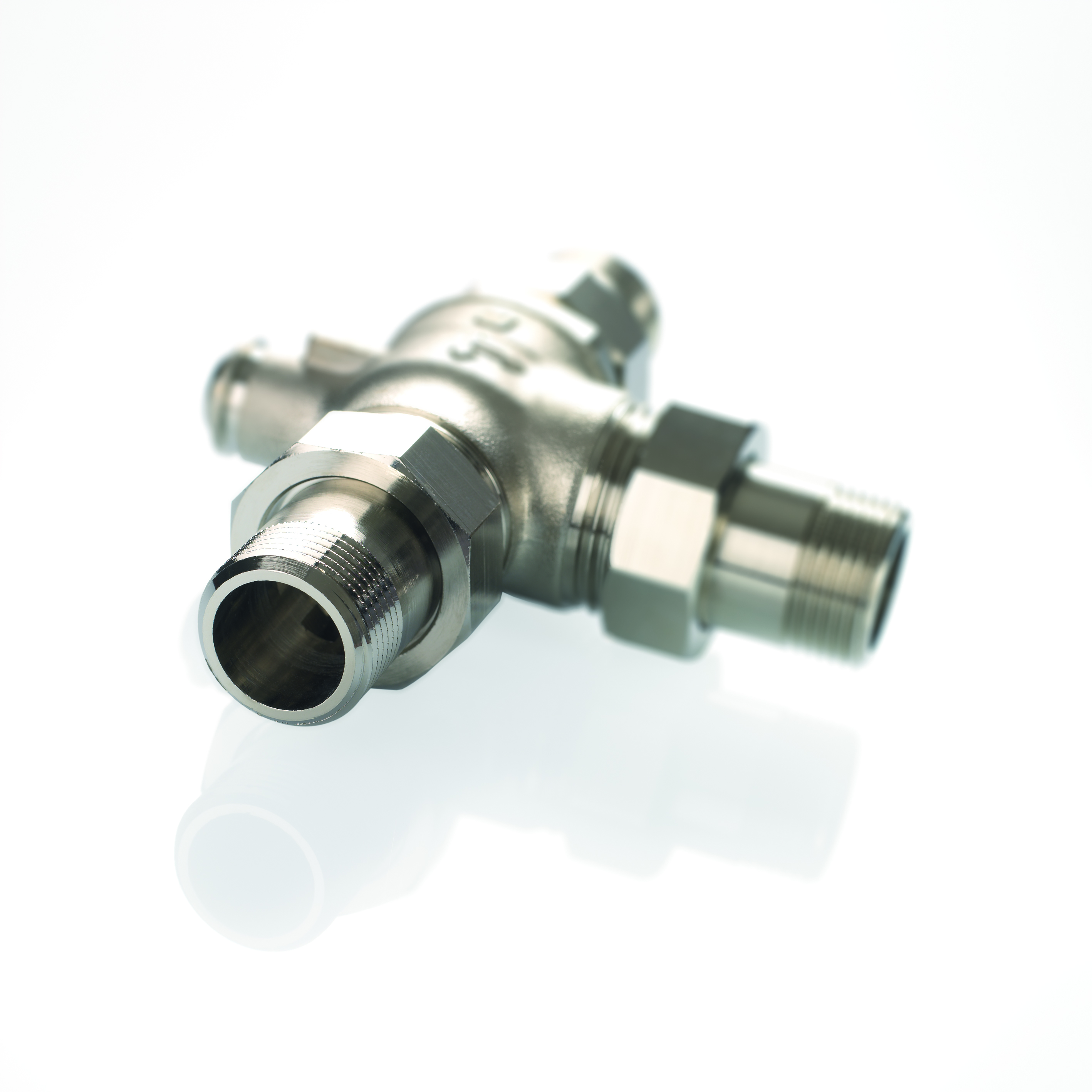

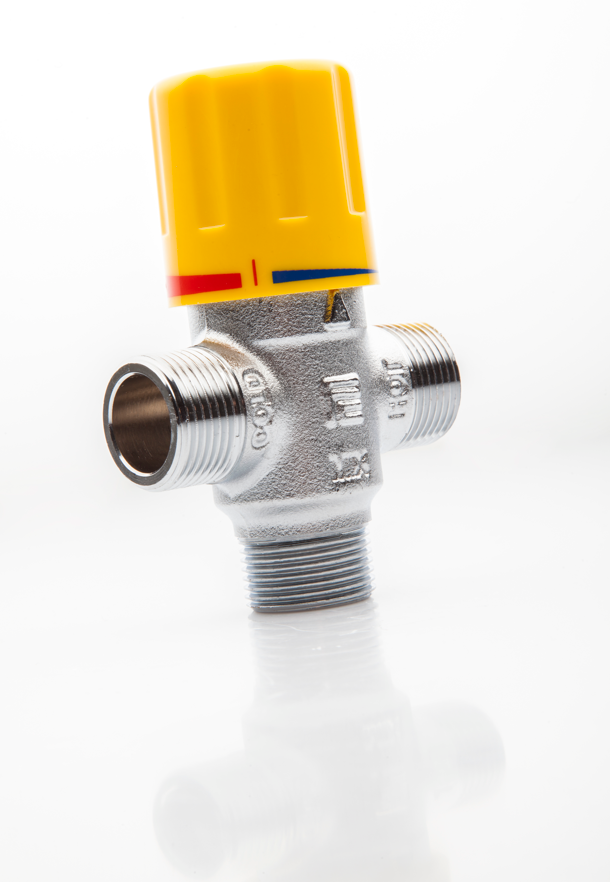

Pintossi+C thermostatic mixing valve is designed for use in domestic water as well as heating systems.

The main function is to maintain constant, to a set value, the mixed water temperature, regardless of any variation of temperature and pressure of hot and cold water supply.

The thermostatic mixing valve is equipped with a temperature-sensitive element that detecte the temperature of the mixed water. This sensor is directly in contact with the fluid, allowing an high precise measurement of the mixed water and grating and high speed response in case of temperature and pressure changes in the inlet hot and cold water.

An anti-burn function is provided by the valve, stopping the hot mixed water delivery in case of unexpeted interruption of the inlet cold water supply, avoiding potentials burns. Thanks to this and anti-burining function the valve is particular indicated in public buildings like schools and hospitals for the presence of individuals at risk.

Thanks to the water high temperature allowed, the valve is particularly suitable to be used in solar applications or in systems where the inlet hot water temperature can reach very high values.

The valve can be installed in single or multi-fixture point of use like washbasin, shower, etc. as well as in hydronics applications.

The valve is suitable to be used with drinking water and made in accordance with Italian D.M. 174/2004 and are ACS (Attestation conformite sanitaire) approved.

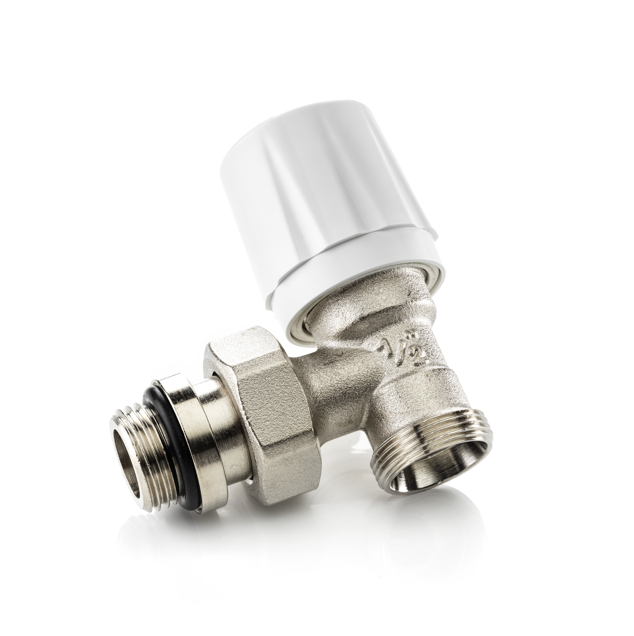

Pintossi+C Thermostatic radiator valves with manual control are equipped with a thermostatic screw and a wheelhandle for opening and closing the valve for the correct control and removal of the radiator from the heating system.

Designed and built for low thermal inertia functioning. They are available in angle or straight version for the connection with iron pipe, copper pipe, PEX or multilayer pipes.

These valves can be used for the manual control of the fluid, thanks to the precise wheelhandle assembled, but can be converted in thermostatic valves with the easy substitution of the handle with a thermostatic or electrothermal head.

The sealing between the valve and the radiator is guaranteed by PTM system (Pintossi soft sealing), which allow a quick and safe installation, without the use of additional sealing materials, like hemp of PTFE ribbon.

They are featured by a quiet functioning, these valves can be installed in every two pipes heating systems, with vertical or horizontal distribution.

Pintossi+C motorized zone ball valves with full flow can be used in heating and cooling systems, as well as for sanitary water applications. They are the perfect solution to be used when a thermal regulation divided in more environments is needed, shutting-off or diverting the flow.

The valves are available in the following versions:

• 2 ways zone valve for opening/closing operations;
• 3 ways zone valve for diverting the flow;
• 3 ways zone valve with by pass.

The regulation can be done connecting the valve to a room thermostat, giving the information of opening/closing, depending on the set temperature.

Besides the valves can be used in central heating systems, solid fuels generators, heat pumps and hybrid systems.

Pintossi+C zone valves guarantee high performance levels: reduced dimension and ease of use during installation allow to automatically intercept the fluid in hydraulic water systems and zone heating systems.

All the valves are equipped with pipe unions for an easy installation.

Main features:
- No seepage
- Short opening and closing times
- Operational capacity with high differential pressures
- Low head losses thanks to the full bore flow

Pintossi+C safety relief valve is designed in order to open automatically when the internal pressure of the system exceeds a pre-set maximum pressure value, by discharging the fluid throught it. Once the pressure of the system returns below the pre-set maximum value the safety valve closes automatically. This safety feature prevents reaching dangerous pressure levels which may damage and affect the components installed in the system.

Thanks to the ergonomic handwheel the valve can be manually open anytime, for checking the correct functioning

This kind of valves are tipically installed on boilers in heating systems and on hot storage cylinders in water systems and in hydraulic systems in general.

Pintossi+C safety relief valves are designed in compliance with the essential safety requirements stipulated in the EU Pressure Equipment Directive PED 2014/68/EU (Pressure Equipment Directive) and marked with CE logo.

The valves are ACS (attestation conformite sanitaire) approved to be used even in sanitary water system.
