Smart Home

A. Introduction
Smart Home PVC-U underground and drainage piping system is one of the most comprehensive products in the market with full range from 32mm to 160mm in a diameter. It is mainly used for non-pressure drainage lines for residential and industrial projects.

• Material: Unplasticized Polyvinyl Chloride
• Size: 32mm – 160mm
• Pipes Length: 6 meters straight length
• Area of application:
• o Waste water pipes inside/outside buildings and underground
• o Water Management Systems
• o Ducting Systems
• Jointing: PVC Solvent Cement
• Color: White fittings and white pipes with two orange stripes
• Installation temperature: up to 60°

B. The Advantages of Smart Home – PVC Drainage System are:

• Manufactured from the finest PVC material
• Long lengths of pipes – 6 meters – reduces the number of joints and fewer the opportunities of leakage
• Long-term durability to survive in high temperatures (Against deformities)
• PVC 90° elbow and tree include wide inspection door to facilitate maintenance process
• Smooth surface that assures low friction loss and high flow
• Light weight, ease of transportation, handling and installation

Inspecting Chamber Advantages

1. Highest drainage rate 300 liters/minute.
2. Body made of PPR for more flexibility and non-breakage.
3. ABS cover bottom-reinforced for more sollidity.
4. 1×160 mm input, 4×110 mm inputs, 1×160 mm output.
5. Maximum load 1500 KG.
6. Chamber height control through 20 cm extension.
7. Composed of 3 pieces assembled as males and females, silicon is preferred for assembling for tight close.

Introduction

Smart Home PVC-U underground and drainage piping system is one of the most comprehensive products in the market with full range from 32mm to 160mm in a diameter. It is mainly used for non-pressure drainage lines for residential and industrial projects.

• Material: Unplasticized Polyvinyl Chloride
• Size: 32mm – 160mm
• Pipes Length: 6 meters straight length
• Area of application:
• o Waste water pipes inside/outside buildings and underground
• o Water Management Systems
• o Ducting Systems
• Jointing: PVC Solvent Cement
• Color: White fittings and white pipes with two orange stripes
• Installation temperature: up to 60°

B. The Advantages of Smart Home – PVC Drainage System are:

• Manufactured from the finest PVC material
• Long lengths of pipes – 6 meters – reduces the number of joints and fewer the opportunities of leakage
• Long-term durability to survive in high temperatures (Against deformities)
• PVC 90° elbow and tree include wide inspection door to facilitate maintenance process
• Smooth surface that assures low friction loss and high flow
• Light weight, ease of transportation, handling and installation

C. Installation Tips

• Pipe cut must be upright for proper jointing with fitting and a file should be used to remove burrs from pipe.
• Wipe the end of the pipe from inside and outside with clean cloth to remove dirt, grease and/or moisture. Do not apply adhesive until the pipe is clean and dry
• The joint surfaces must be softened and remain wet with solvent cement during joint assembly.
• A thin coat of the adhesive should be applied inside the fitting and outside the pipe to fill in the gap between the pipe and fittings
• Assembly must be made while the surfaces are still wet and the solvent cement is still fluid
• Joint strength develops as the solvent evaporate from the joint
• Cleaner primer must be used to prime and clean all jointing surfaces, before application of solvent cement. Cleaner primer softens the surface and is essential to a successful jointing process.
• No additive of any kind should be introduced to the cleaner primer, or to the solvent cement. Ensure that the solvent cement is in good condition and runs freely from the brush.

Smart Home PVC-U underground and drainage piping system

In 1995, EGIC has introduced polypropylene – PPR water supply solutions to the Egyptian market with superior German quality and achieved a new benchmark of hot and cold water.

• Material: Polypropylene – Random copolymer
• Size: 20mm – 160mm
• Pipes Length: 4 meters straight length
• Area of application:
• o Cold and hot potable water
• o Swimming pool installation
• o Rainwater application
• o Heating systems
• o Pipelines for industrial use
• o Compressed air system
• Color: Green
• Stripes: Orange
• Standard: DIN 8077/DIN 8078, DIN EN ISO 15874
• Pipe series: SDR 6/S 2.5

The Advantages of Smart Home – PPR Water Supply System are:

• Available with wide range of sizes (20mm – 160mm)
• High flow rate, light weight and smooth inner surface
• Great stability and reliability at higher temperature
• Non-toxic, chemical resistant and absolutely has no rust release
• Ease of fitting and ability to maintain water pressure.
• Low installation cost as it doesn’t need any kind of solvent cement compared to PVC

Installation Tips

• Use cutters with a sharp, pointed blade for smaller sizes
• Remove any debris left from cutting the pipe
• Wipe the end of the pipe from inside and outside with clean cloth to remove dirt, grease and/or moisture
• Plug in the iron early, as it will take 5-10 minutes to heat up.
• When the iron is hot, insert the pipe and fitting into the iron.
• Pushing both sides at the same time, immediately insert the pipe into the fitting. Push the pipe until the rings meet within the welding time.
• Once the rings meet, you will have 5 to 15 seconds to make adjustments to the alignment, depending on the pipe size. Do not twist during adjustment, alignment, or insertion.

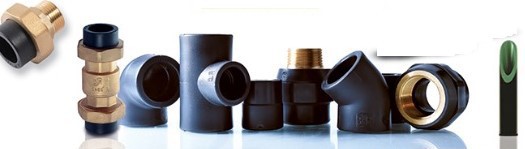

PPR pipes and fittings

Home is a dwelling place where we spend most of our life. Installing superior piping system that work properly in our home is really crucial; as it makes it a peaceful place of live.

EGIC Research and Development team continually strives to work on the latest innovative products and smart piping solutions, as well as on development of new items. Using the most modern equipment leads to increase productivity and meet customers’ needs. We present complete home solutions with superior quality and competitive prices among appropriate distribution channels.

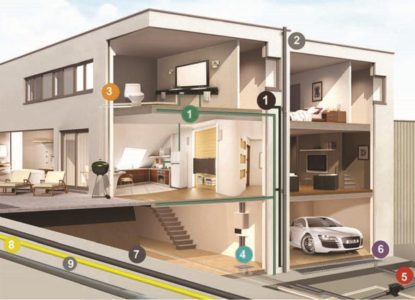

1. PPR / PP- RCT pipes & fittings for drinkable hot and cold water
2. PPR pipes & Fittings for UV-resistant with food grade
3. PP pipes & Fittings with seal plugs for drainage above & underground
4. PVC pipes & Fittings for Drainage
5. Floor Drains
6. Gully Trap/inspection chambers
7. Drainage Channels
8. PE pipes for water supply / Drainage
9. PE gas pipes
10. HTPVC pressure pipes
11. Gray PVC pipes

Our Superior Quality Systems aim for a complete plumbing solutions.

• Zero Leakage
• Zero Contamination
• Zero Corrosion
• Zero Blockage

Bronze and brass Inserts

EGIC deepened its industrial investments by developing in-house manufacturing of bronze and brass inserts using the latest “state-of-art” CNC machines of German and Italian origins. We elevated to a new era by installing a Swiss made horizontal continuous casting production unit for manufacturing a guaranteed high quality bronze bars.

Bronze Bars

• Bronze alloy – copper percentage 85%
• Round Solid Bars
• Round Hollow Bars
• Different Profile Solid Bars
• Different Profile Hollow Bars
• Different Diameters up to 75mm
• Different Lengths up to 4 meters

Bronze/brass Inserts

• Automatic Bar Feeder
• Sizes from 10 mm to 110 mm
• The average cycle time 2.4 seconds per piece
• Safe for human use
• 33 interlock notches between PP-R and copper insert = 10 times strength of other products
• Trapezoidal profile, the more pressure and heat the more interlocking efficient (to ensure the longest life of the product)

Bronze and Brass Inserts
