Integrated DX module (evaporator condenser and compressor) on the device, fully automated, package design that does not require external unit.

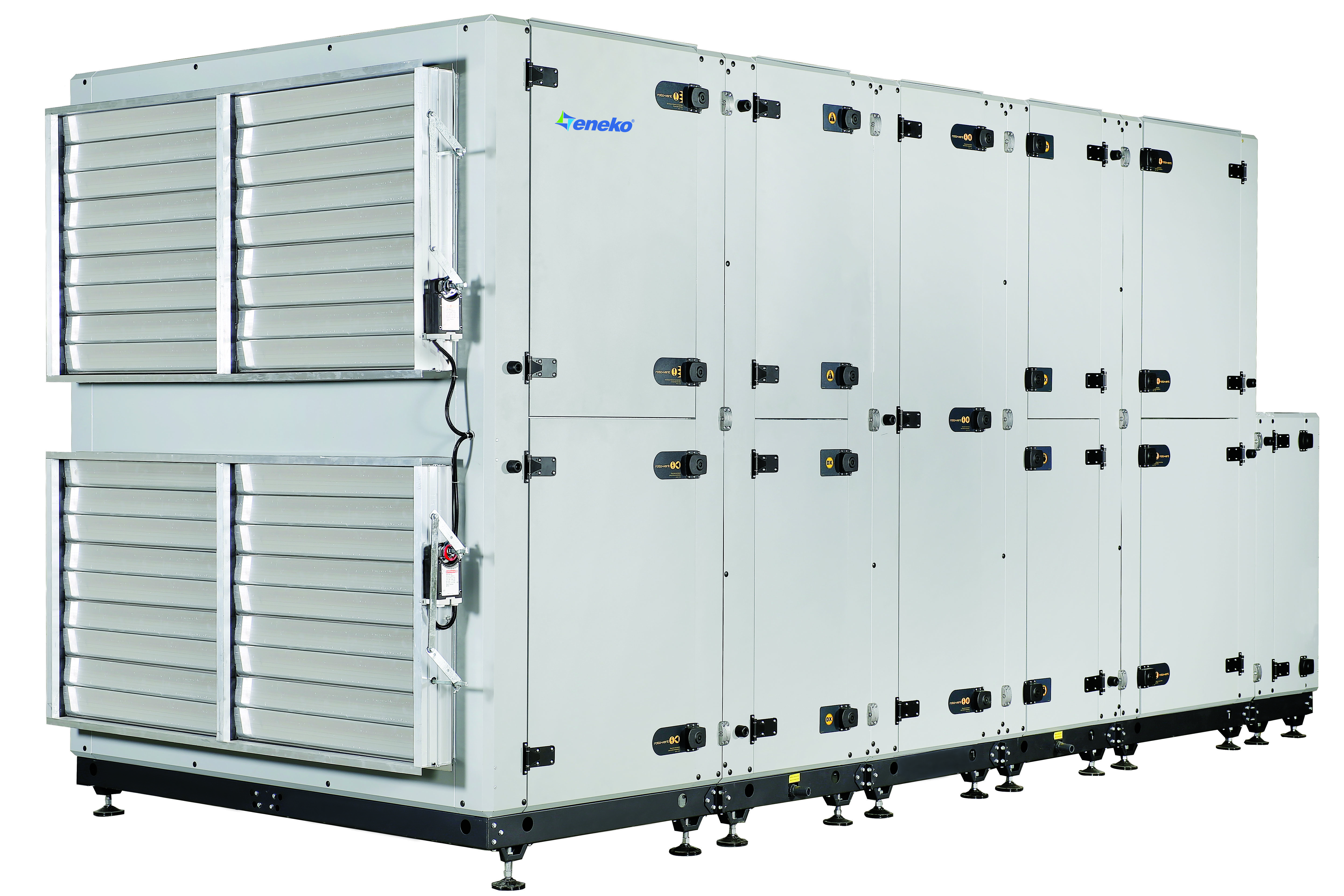

• Production in three different structures with a flow rate between 3,000 m3 / h and 28,000 m3 / h; ERO AC Series heat recovery with rotary wheel exchanger,

• The advantage of operating with 100% fresh air

• Specially designed casing,double skin isolated with rock wool; 50 mm thick,and density of 70 kg / m3• Screw adjustable feet,

• The advantage of being able to be installed indoor or outdoor (packaged unit which can be installed in indoor)

• Low energy consumption and low noise level with EC Plug Fan,

• Integrated HeatPump module, Variable speed scroll compressors

• R32 available

• Withouth defrost design up to -20°C

• In addition to the unit structure, the exhaust air can be passed through the condenser,

• Special design integrated into unit body MCC-DDC panel

• Halogen-free jackets include in-device cabling, plug-in connectors for cell separations,

• Advanced, integrated automation system,

• Mod-Bus / BacNet alternatives

• Mechanical and electrical tests carried out 100% before shipment,

• Plug & Play

• Remote monitoring

• Continuous fresh air supply

• Aluminium counterflow heat exchanger (temperature efficiency up to 90%)

• Energy-efficient fans with EC motors

• Efficient air filtration

• Efficient air distribution throughout the entire space

• Integrated control system• CO2 control (accessory)

• Easy to install, maintain and control

• 100% proportional bypass

• Integrated On/off preheater(Accessory)

• Integrated Proportional postheater (Accessory)

• Integrated DX/Changeover heating and cooling coil (Accessory)

ERV Series Rotary Compact Power Plants are used to solve all ventilation and air conditioning needs, including renovated buildings.

ERV Series Devices are produced in two different types; Channel connection ports are located in the ERV series power plants, and in the ERV-V series devices are located in the upper part of the device.

• Low energy consumption and low noise level with EC Plug Fan
• Highly efficient and Eurovent certified rotor
• High efficiency - compatible with ERP and Ecodesign / ERP 2018
• Advanced automation system
• Plug & Play
• Remote monitoring.

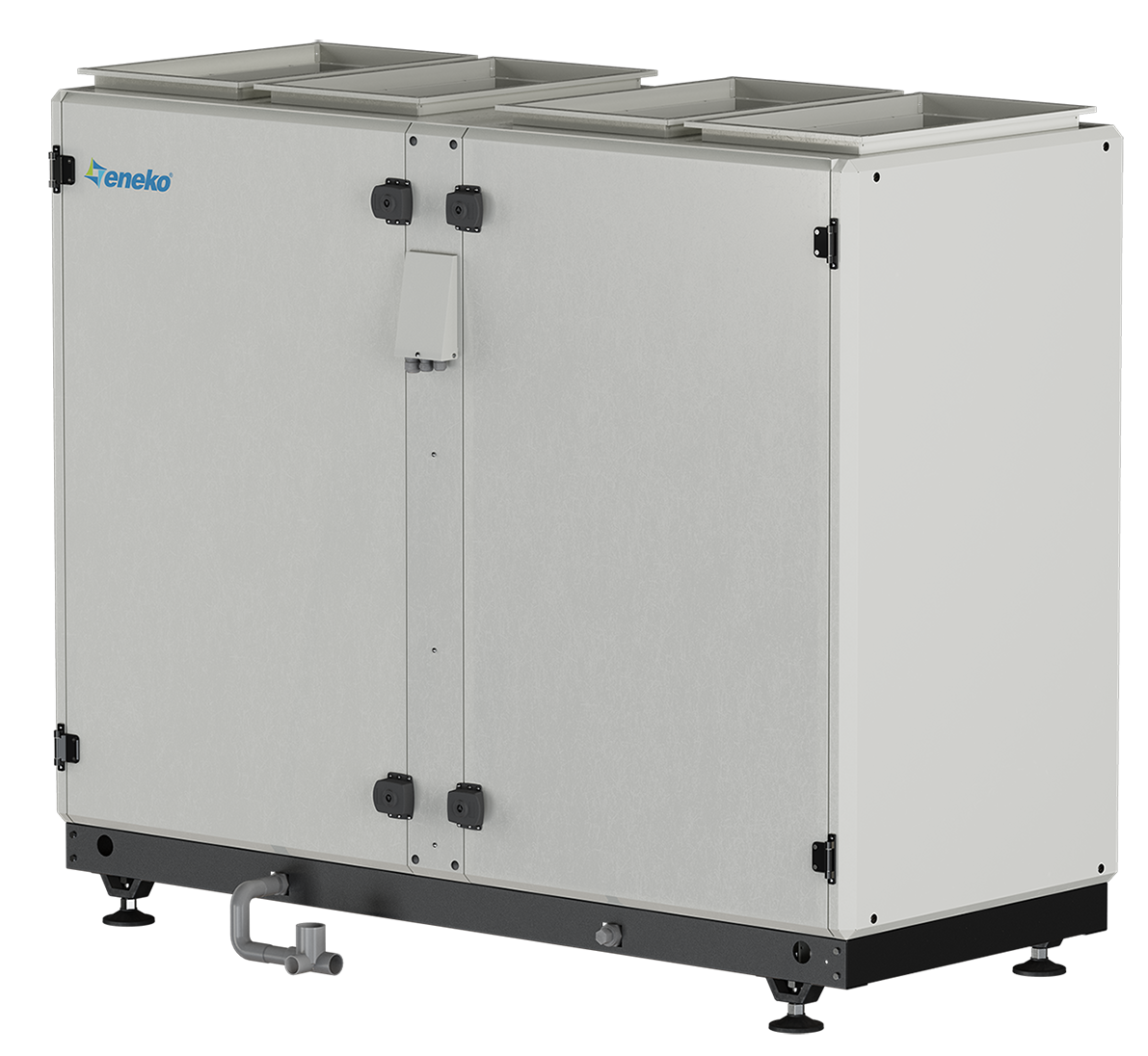

• Floor type, high efficiency, compact power plant with rotor heat recovery
• Two different alternatives according to the air flow, with 8 models each, at a nominal flow rate of 950 - 10200 m3 / h;
• ERV Series power plants horizontal flow / outflow

ERV-V Series power stations vertical air flow / top outlet

• ERP and Ecodesign compliant (ERP 2018)
• Low energy consumption and low noise level with EC Plug Fan
• High efficiency hygroscopic rotor heat recovery,
• Double-skinned case with 50 mm, 70 kg / m3 insulation
• Screw adjustable feet,
• Compact design, requires smaller space for installation.
• M5 filter on fresh air side F7 indoor air suction
• MCC-DDC panel integrated in the device body
• Optional electric heater
• Optional hot water / cold water / Dx serpentine addition
• Ventilation up to optional requirement (CO2 sensor)
• Optional sorption rotor
• Optional different filter alternatives
• Optional channel type muffler
• Advanced, integrated automation system,
• Mod-Bus / BacNet alternatives
• Plug & Play
• Remote monitoring

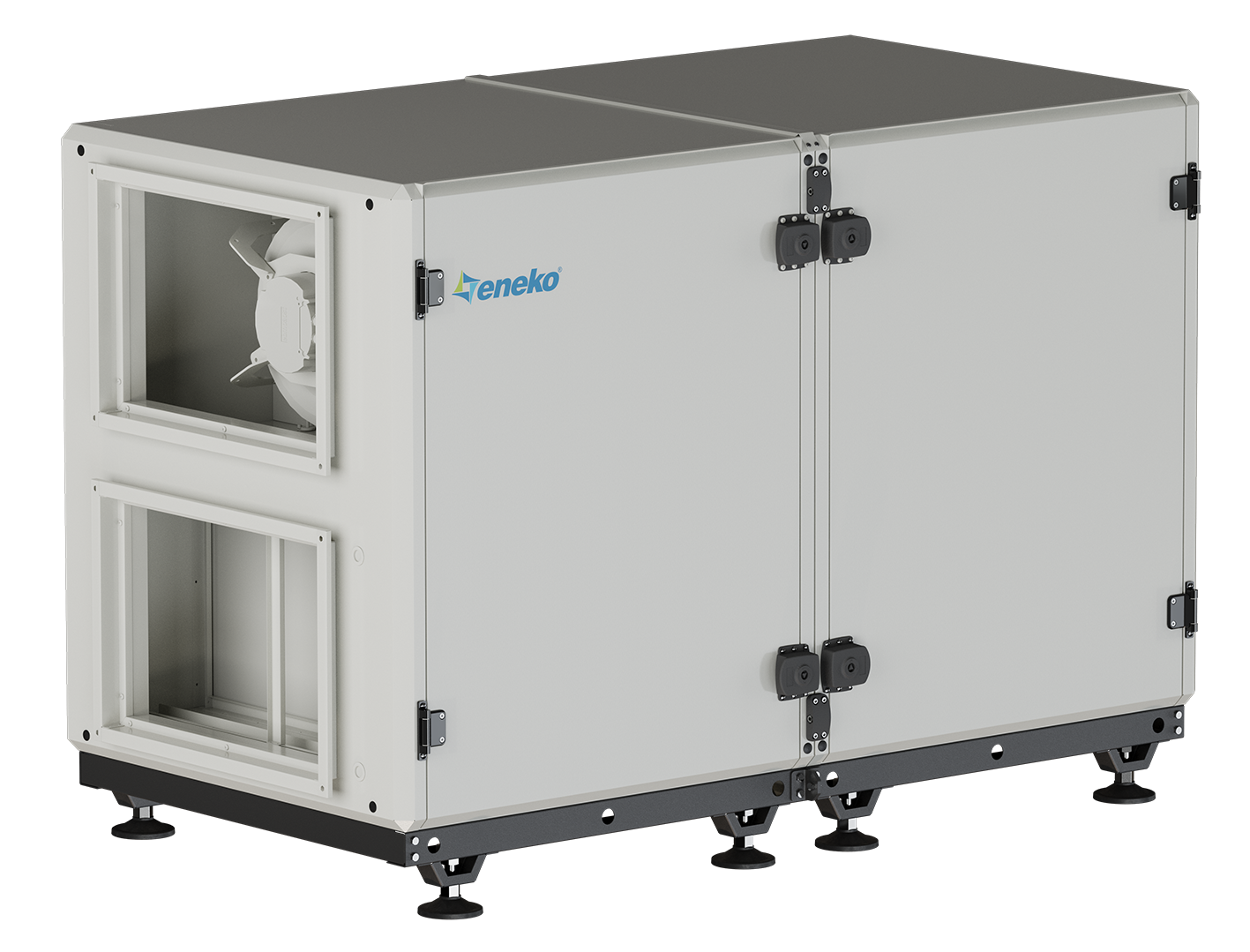

• Floor type, high efficient, counterflow Compact heat exchanger with heat recovery
• Two different alternatives according to the air flow with 5 models in the range of 1,000 - 7,000 m3 / h;

ECV-H Series power plants horizontal flow / outflow
ECV-V Series power stations vertical air flow / top outlet

• ERP and Ecodesign compliant (ERP 2018)
• Low energy consumption and low noise level with EC Plug Fan
• High efficiency hygroscopic rotor heat recovery,
• Double-skinned case with 50 mm, 70 kg / m3 insulation
• Screw adjustable feet,
• Compact design, requires smaller space for installation.
• M5 filter on fresh air side F7 indoor air suction
• MCC-DDC panel integrated in the device body
• Optional electric heater
• Optional hot water / cold water / Dx serpentine addition
• Ventilation up to optional requirement (CO2 sensor)
• Optional different filter alternatives
• Optional channel type muffler
• Advanced, integrated automation system,
• Mod-Bus / BacNet alternatives
• Plug & Play
• Remote monitoring

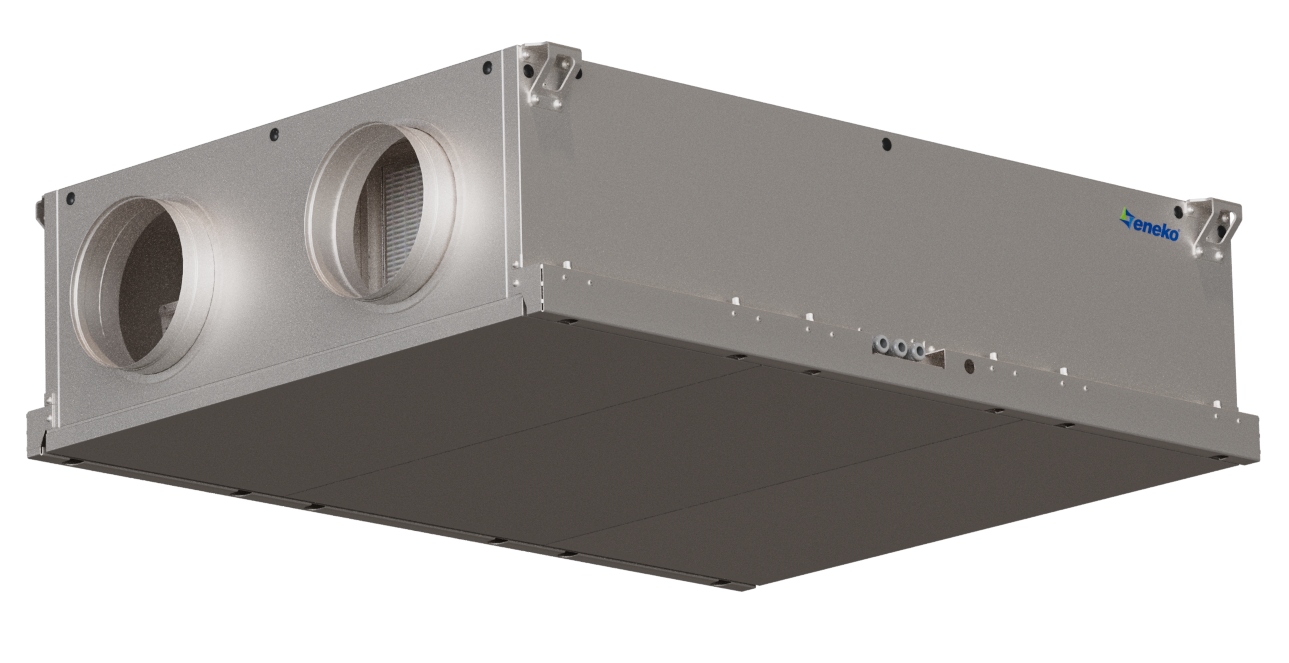

ENVU-ECO units are ceiling type Air Handling Units equipped to and suitable to be used in offices, residential houses, schools, and public places to provide fresh air up to 2400 m3/h.

• Low energy consumption with EC Plug Fan

• Low noise level with increased panel thickness

• Easy service from the bottom

• Left and Right options

• Advanced automation system

• Plug&Play

• The product range has a efficiency aluminum counterflow exchanger and ERP 2018 compliant. ENVU-ECO has 6 models between 200-2400 m3/h, and designed to fit for ceiling applications. It is an ideal solution for both new buildings and for renovation projects.

• Low energy consumption and low noise level with EC Plug Fan

• By-pass Damper

• ENVU-ECO has wide range of accessories to fully meet your project requirements, such as heating and cooling coils, filter boxes, external dampers, sensors and others.

• Optional ISO ePM 1 >80% class filter
