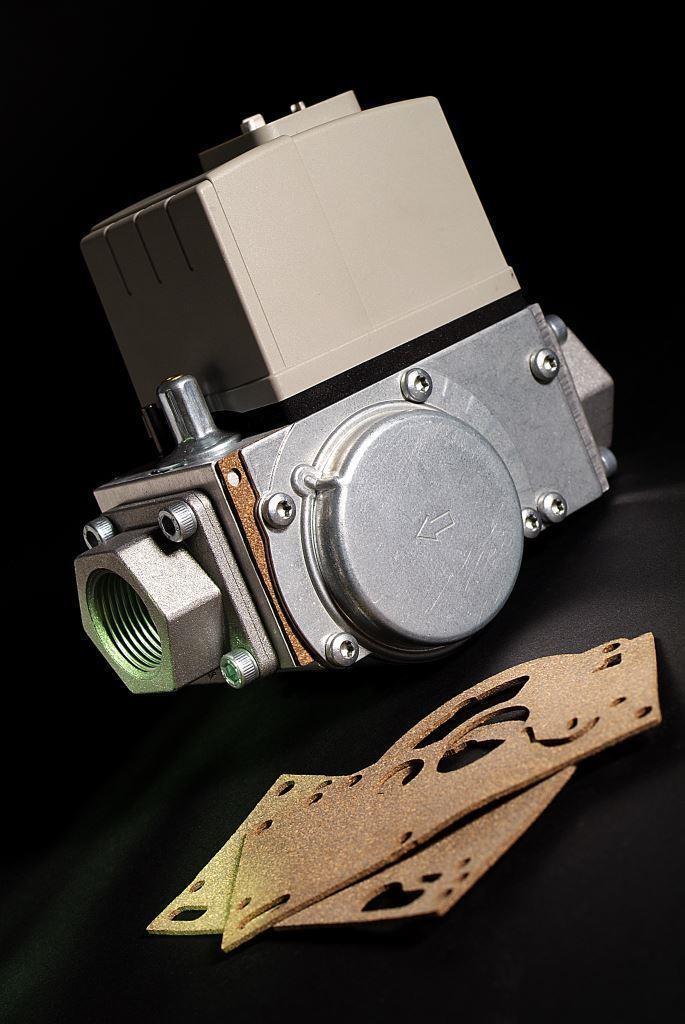

1028 DVGW

Is a medium loading cork rubber used for natural Gas and LPG applications. It complies to DIN 3535-5, NP 4464, ES 30.1.1., part 6.1.1.2.

1120

Compounded with a special Nitrile (NBR) rubber. This product is suitable for most transformer oils and big flanges at different application temperatures.

1237

Compounded with Styrene Butadiene (SBR) rubber. This product has an outstanding low sealing stress and is suitable for most lubrication fluids.

Approvals:

• DIN 3535-5
• NP4464
• ES 30.1.1, parte 6.1.1.2
• ASTM-03455
• ASTM-05282

Asbestos-free gasket material. It contains aramide fibers, inorganic fillers and other high-temperature resistant substances which are bonded with high strength and especially gas-tight under increased pressure and increased temperature.

Approvals:

• DVGW
• FDA
• Elastomer guideline (KTW)
• WRAS
• W270
• VP 401
• HTB
• Fire Safe
• BAM
• Grade X
• TA Luft
• Germanischer Lloyd (DNV GL)

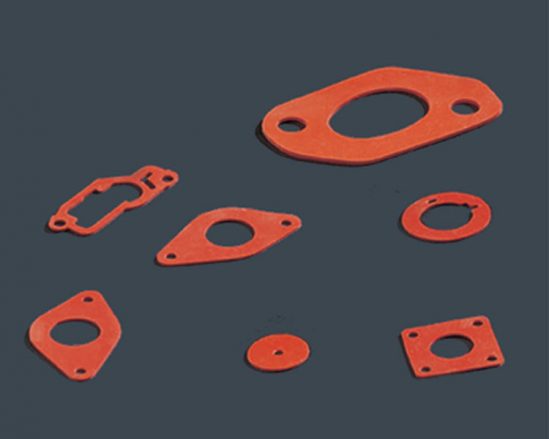

The rubber sheeting and matting range is suitable for most áreas of use, offering the most suitable solution to each rubber scope of application: sealing (gaskets), protection (machine and process), safety (electric insulation, fire/smoke), and flooring (industrial matting).

The rubber sheeting and matting range is especially designed for:

• Chemical, acids, bases, oils
• Energy, electrical insulation and fire protection
• Food, FDA and (EC) 1935/2004 certificates
• Driking water, several certificates such as ACS, WRAS, BELGAQUA, AS/NZS, etc.
• Steel industry, high temperatura
• Automotive, acids, bases, oils
• Construction & environment, fire/smoke matting, bearings
• Mining & quarries, skirting, dust sealing

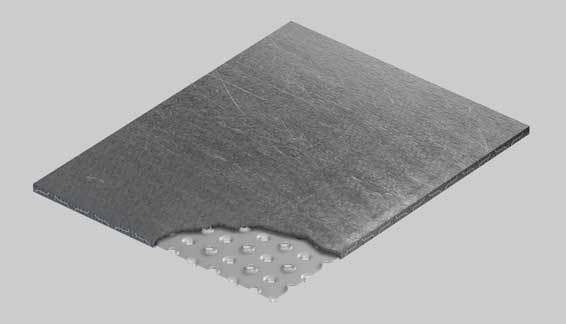

Sheets manufactured with pure expanded graphite, not requiring any kind of binder, fiber or filling material.

They are flexible, slide perfectly and resist high temperatures up to 450 °C, even in steam presence. They have good chemical stability and low fluid permeability.

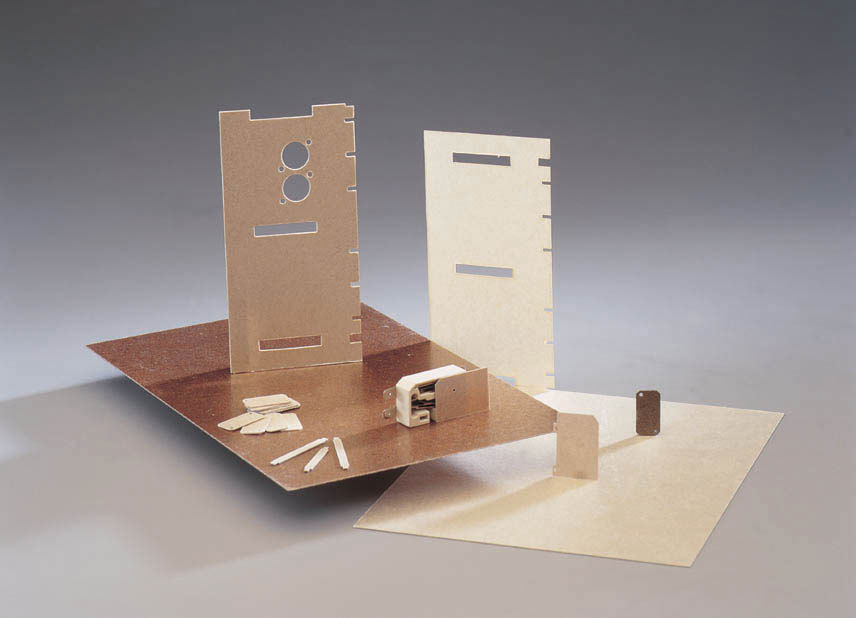

Insulating materials based on integrated mica paper layers impregnated with high thermal properties silicone resins. The material is polymerized under specific pressure and temperature to form insulating plates.

• Very low smoke emission.
• Temperature resistance up to 600°C.
• Excellent die-cutting even in small pieces.
• Excellent dielectric characteristics.
