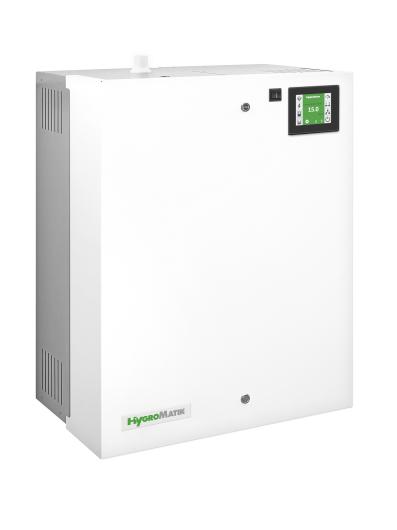

FlexLine steam humidifiers. Flexibility in award-winning quality.

With the FlexLine, HygroMatik provides a modern generation of steam humidifiers which consists of a basic model that can be expanded to create an individual humidification solution suitable for all requirements. In order to make this flexibility available to our customers quickly, we have developed a modular system. This was awarded in three categories and FlexLine received the Plus X Award.

Flexibility pays dividends.

All advantages at a glance.

• A series of units for all applications and performance categories
• Ease of installation by means of individual pre-configuration ex factory
• Expansion of options for retrofitting
• You only invest in the functions you really need
• Easy operation
• Highest quality and energy efficiency
• Environmentally friendly incorporating reusable components

Custom-made for every area of application.

The FlexLine basic model is the basis for all other configuration options. Through its individual extension capability, FlexLine is able to adapt to the requirements of differing areas of application:

• Optimisation of the indoor climate in industrial, commercial, cultural and leisure facilities
• Control and stabilisation of air humidity for industry and processes

Optimum humidifying using the best method. FlexLine is available as an electrode as well as a heater type humidifier – depending on your water quality and the required degree of control accuracy.

Always the correct humidification performance.

Equip HygroMatik FlexLine with the power you need for optimum humidification. Performance classes with steam output from 3 kg/h up to 130 kg/h are selectable in 6 housing sizes. In addition, individual performance adjustments can be programmed both at the factory and on site.

Manifold options for a humidification solution that fits perfectly. Every installation is different, and so every project places unique requirements on the humidification solution. The FlexLine can be equipped with a wide range of options to optimally meet your project requirements. In addition, various protection and security functions can be installed and activated, e.g.

• HyFlush (cylinder flushing device)
• HyCool (integrated waste water cooling)
• Stub line flushing

This means that your system is optimally protected around the clock and you have less maintenance work. If needed, all options can be retrofitted. We are always pleased to provide advice.

Excellent ease of operation. All HygroMatik FlexLine units are equipped with a capacitive 3.5“ touch screen whereby operation and programming is selected via a flat and intuitive menu structure analogous to modern smartphone logic. In addition to this, subsequent software updates are quickly and easily possible via USB flash drive.

• At a glance comprehensible pictographs provide information on the operating condition
• Simple and fast navigation
• Information and system messages displayed as plain text
• Readout of service messages with date and time
• Integrated real-time clock

Smart control – powerful and quick response. The control and regulation technology of FlexLine units provides extensive possibilities that are simple and easy to operate.

• Numerous control and reporting functions can be assigned to up to 11 relays depending on the unit
• Freely programmable, overload-protected digital input
• Load shedding: power limitation in the event of network overload or emergency power operation
• Blow-down on external request for specific operating conditions
• Stand-by mode: pre-heating by remote activation for a quick response time
• Integrated communication protocol: Modbus RTU or BACnet
